• Model NO.：FL22 MINI pump series
• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：ISO9001:2008, CCC, CE
• Condition：New
• Application Field：Agriculture, Forestry
• Transport Package：Box
• Trademark：LifeSRC
• Origin：China
• HS Code：84137099
• Production Capacity：100000PCS Per Month

Basic Info.

Model NO. FL22 MINI pump series Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008, CCC, CE Condition New Application Field Agriculture, Forestry Transport Package Box Trademark LifeSRC Origin China HS Code 84137099 Production Capacity 100000PCS Per Month

Product Description

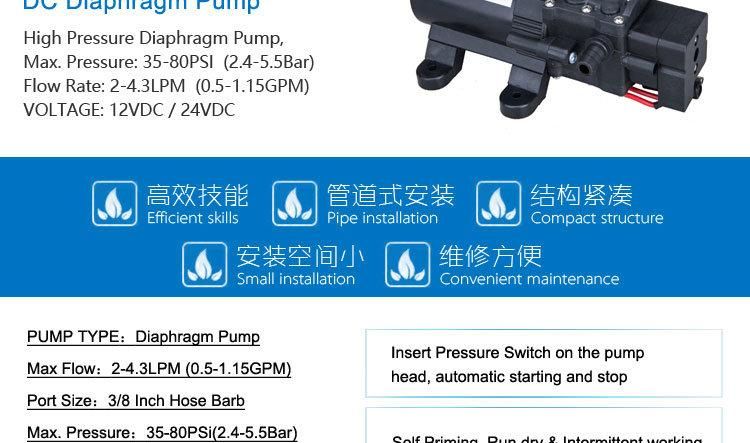

Price Solar Water Pump for Agriculture 12v 40psi Self Priming Pump
Application:

Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Food beverage filling & liquid transfer
Any other pressurization system
 1-Year Warranty!
 Colors: Black or required
How a Diaphragm Pump Works
        The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity

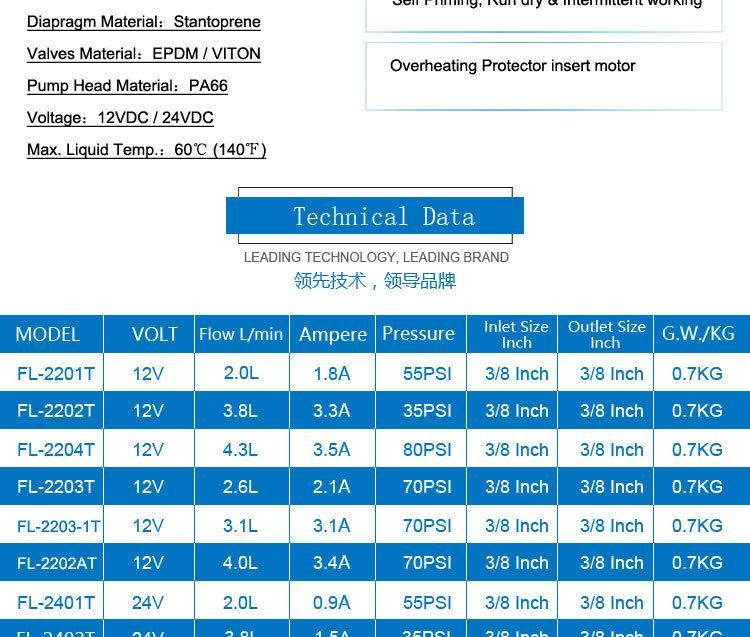

Motor Voltage	12/24V DC
Type	2 Chamber positive displacement diaphragm pump,self priming, capable of being run dry
Mode	Demand
Certifications Option	CE Approval
Liquid Temperature	110°F (43°C) Max.
Priming Capabilities	4 feet(1.2m) suction lift
Max Pressure	80psi(5.5bar)
Max Flow rate	3.8lpm(1.0gpm)
Inlet/Outlet Ports	3/8" Hose barb
Duty Cycle	Intermittent
Lead	18AWG, 13.78" long with 2-pin connector/lead
