• Epidemic Prevention Equipment：Medicated Bath Equipment
• Blade Type：Curved Teeth
• Computerized：Computerized
• Certification：ISO9001:2008, CE
• Condition：New
• Warranty：1 Year
• Production Name：Poultry Farm Equipment
• User：Chicken,Broiler,Poultry,Breeder,Layer
• Advantage：Automatic Operation, Save Label
• Operation：Full-Automatic
• Color：Customerized
• Motor Voltage：220V,240V,360V,415V
• Feeder Type：Plasson Type and Others
• Drinker Type：Plasson Type and Lubing Type
• Feeder Capacity：40-55 Birds,PCS
• Drinker Capacity：10-12 Birds,PCS
• Environment Controller：T607A-C,T616,Image2,AC2000plus, etc...
• Cooling Pad Type：Standard,Black Coated,Green Coated
• Curtain Material：PVC,PE
• Feed Tube：3m,4holes, 3m,3holes
• Water Tube：3m,12 Drinkers, 3m,15 Drinkers, 4m,16 Drinkers
• Transport Package：Standard Exported Package
• Specification：Complete automatic poultry farm equipment
• Trademark：U-Best
• Origin：China
• HS Code：84362900
• Production Capacity：800set,Month

Model

diameter (mm)

Volume(m3)

Capacity(ton )

Height (meter)

1

1834

4.4

2.8

4.1

2

1834

6.8

4.4

5

3

1834

9.2

6

5.9

1

2750

11.7

7.6

4.7

2

2750

16.9

11

5.6

3

2750

22.1

14.3

6.5

1

3668

24.5

16

5.7

2

3668

33.8

22

6.6

3

3668

43.1

28

7.5

power

voltage

frequency

phase

current

0.75kw/1.1kw/1.5kw

220v/380v

50HZ/60HZ

Triple/single

AC

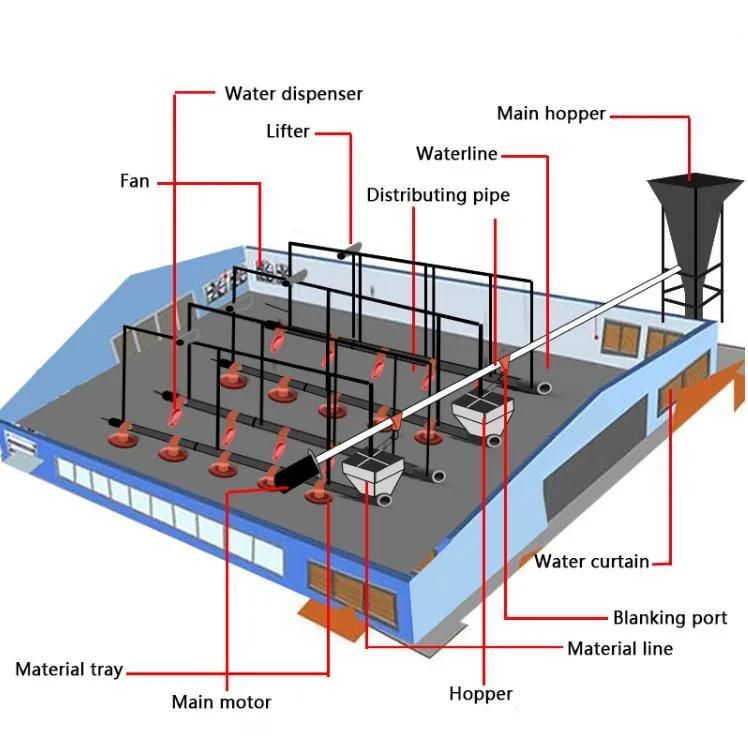

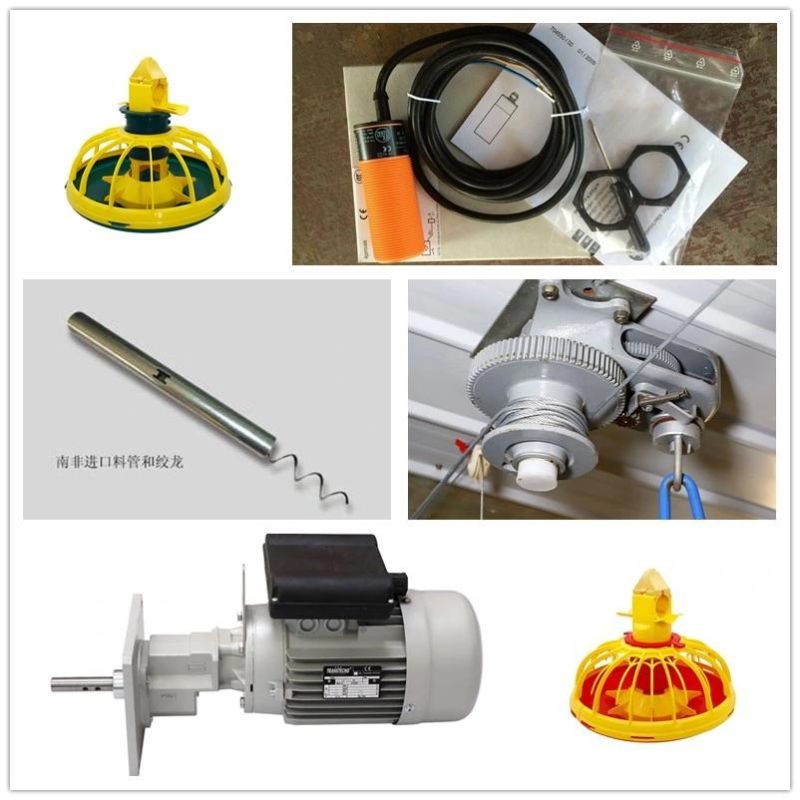

2.Auto broiler pan feeding system:


 Our Broiler farm pan feeding system consists of vice hopper,driving motor, feed pipe and auger and haning system
   Vice hopper: made of hot dip galvanize sheet, 70/90kgs capacity
   Driving Motor:0.75/1.1/1.5kw high-quality special driving reduction motor
   Feed pipe: Φ45mm diameter, 275g/m2 hot-dip galvanized steel pipe with the zinc coating
  Auger: Helical spring auger from South Africa
  Feeder pan: 4 pans/3 meters, 3 pans/3 meters, 100% virgin raw material PP

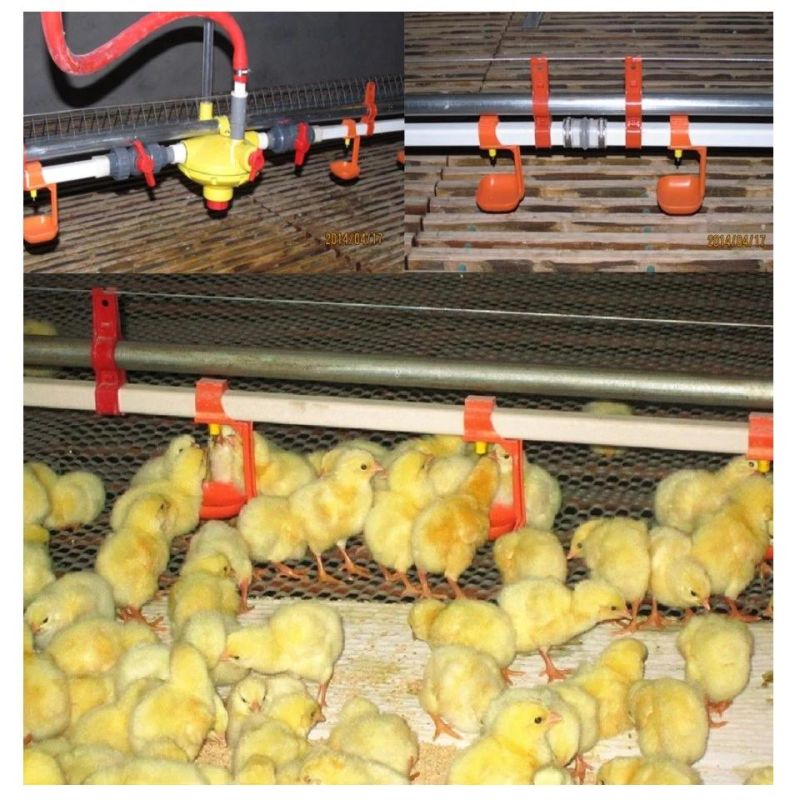

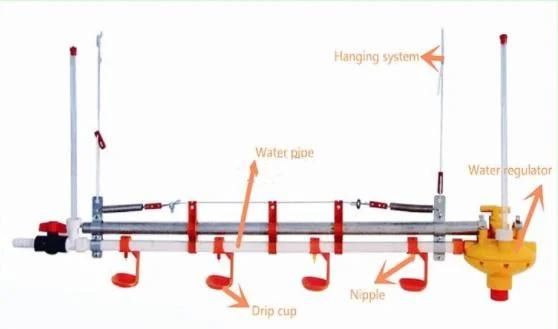

3.Auto water nipple drinking system


Our broiler water nipple drinking system consist of water front parts, nipple drinking line , hanging system, regulator and water line end parts.
Type: square water pipe with galvanized support, round water pipe with aluminum support, square water pipe with aluminum support
Nipple:12nipples or 15nipples/3m, 20nipples/4m
Nipple drinker capacity :  8-12 birds/ nipple

Water Level Display Height:

Chicken Age (days)

1-7days

8-14days

More than 15 days

Water Level Height of display Tube (mm)

50-80mm

80-200mm

200-350mm

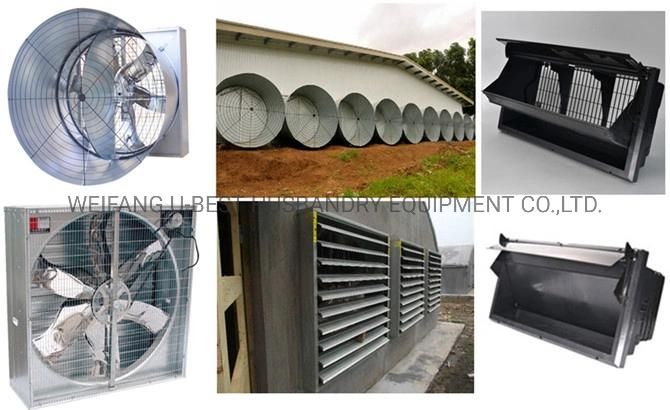

4.Tunnel Ventilation system:


1)    50 inch ventilation fan  : box fan or cone fan

The fan has accredited Europe of CE certification.

The guarantee period is one year,during which the easily damaged parts are offered free of charge.

Description

Blade

Diameter

(mm)

Frequency

(Hz)

Current

(A)

Input

Power

(KW)

Voltage

(V)

Rotational

Speed

(r/min)

Airflow

(m3/h)

Size(mm)

Weight

(Kg)

50" box fan

1270(50inch)

50

2.8

1.1

380

1440

43170

1380*1380*450

89

50 cone fan

1270(50inch)

50

2.8

1.1

380

1440

51020

1380*1380*1360

100

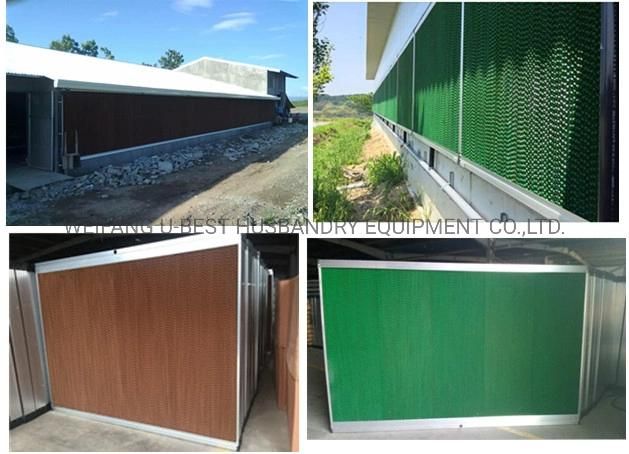

Evaporation Water cooling pad system : It is best effecitive combiation to decrease the temperature in poultry house in hot cliamte area .

Water cooling pad curtain  of broiler poultry farming equipment

Coling Paper Size :  length : 1.5 m ,1.8m , 2.0 m   width:0.6m.   thickness : 0.15m

Size with aluminum allloy frame : 1.66m ,1.96 m ,2.16 m

The best air speed getting trough water cooling pad is 1.8 meter /second .

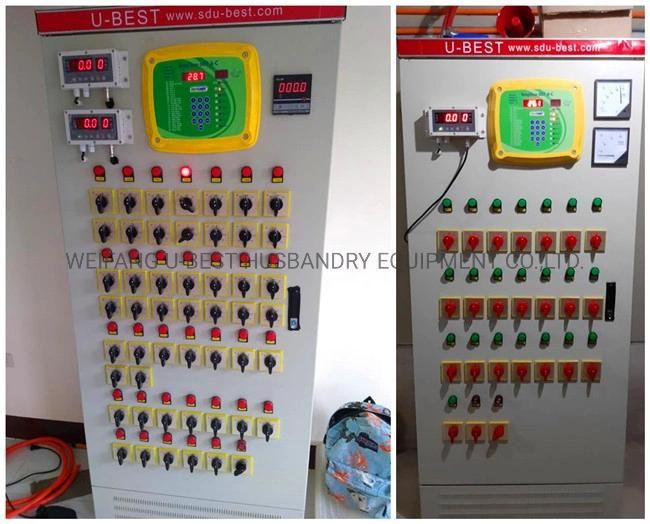

5.Environment control system


1).     Environment controller

Agrologic 610 , Agrologic 616 , Rotem AC2000,  AC2000 PLUS for your option .

control box: famous brand  or china zhengtai brand



2).     Cooling pad system:

  The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer.

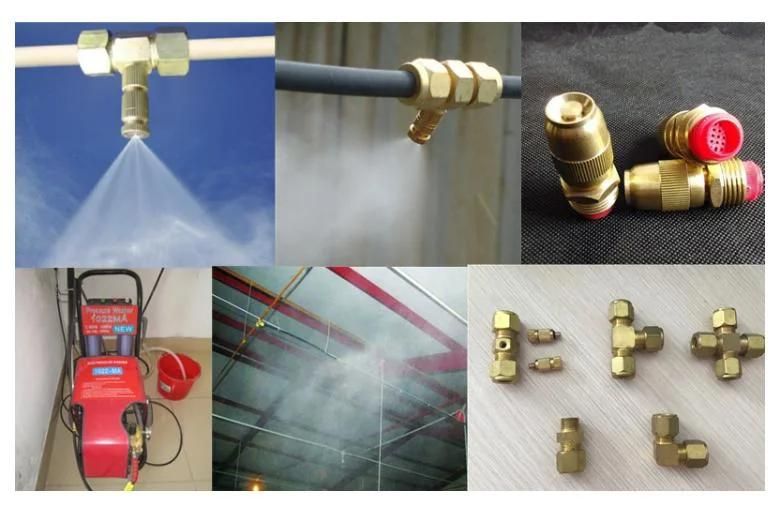

3).     Spraying system  (Fogging system)

This system effectively cools, humidifies, dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes).

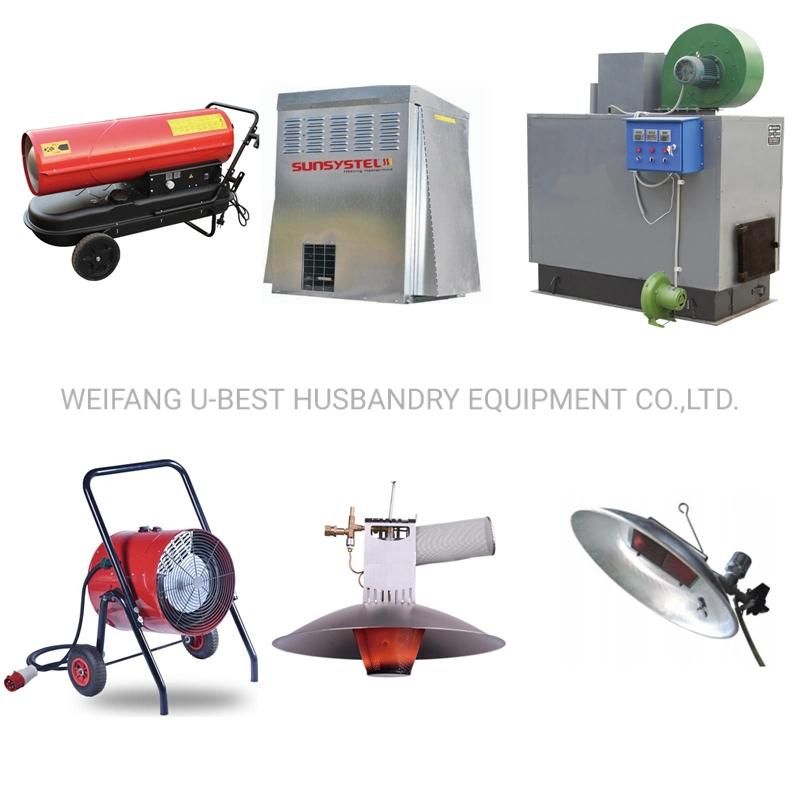

4).     Heating system

We can offer gas brooder , diesel heater ,gas heater and hot blast heater..

Our Service:

1.    Poutlry farm design and construction

2.    Offer CAD layout drawing

3.    Installation : two installation engineers will be sent to farm site guid installtion and give training for equipment operation

Our warranty :

1. all plastic products are made of virgin raw material such as the feed pan , water drip cup ,clips , air inlet  15 years 2. Nipples : 10 years

3.The accesorries such as the bolts ,nuts ,pulley ,water winch ,rope clips are stainless steel

4. Feed motors from Italy brand Transtechno

5. Auger from South Africa technical system

6. Feed sensor from Germany

7. Control box :famous brand or china zhengtai brand

We also can provide you overvalue services :( one -stop service for poultry farm needs )
1. Poultry House site Selection
2. Poultry House Design and Construction Preparation Guidance.
3. poultry house construction
4. Breeding Equipment Installation and guid operation
