ATV Tractor Car Mounted Wheeled Diesel Wood Chipper

Weifang Farm Machinery Co., Ltd.

After-sales Service：Online
Warranty：1 Year
Type：Wood Chipper
Power Source：Diesel
Certification：ISO9001, CE, CCC, EPA
Transport Package：Iron Crate

Base Info

Model NO.：WC-50H(18H,22H,30H,40H)
Specification：1760X1450X1400mm
Trademark：OEM
Origin：China
HS Code：8432
Production Capacity：5000sets,Year

Description

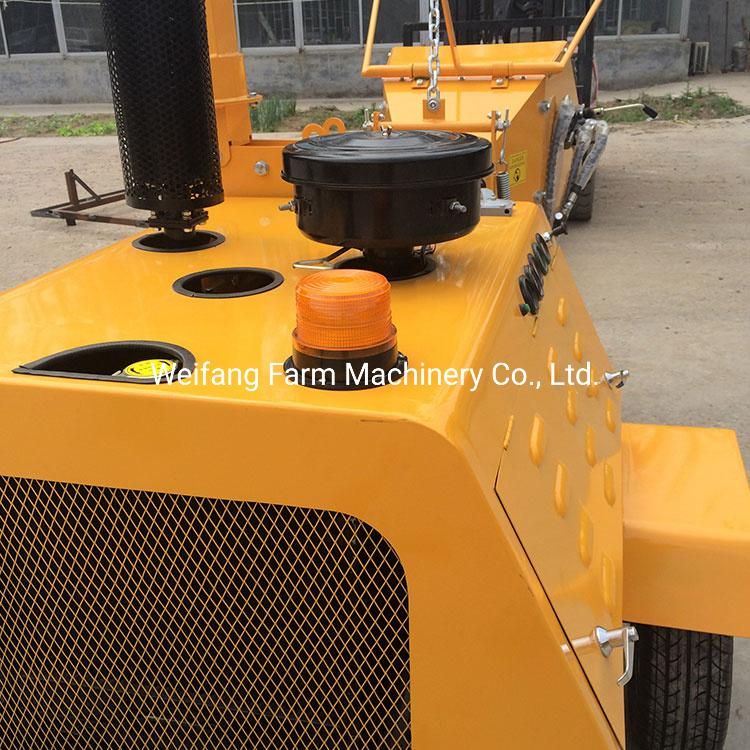

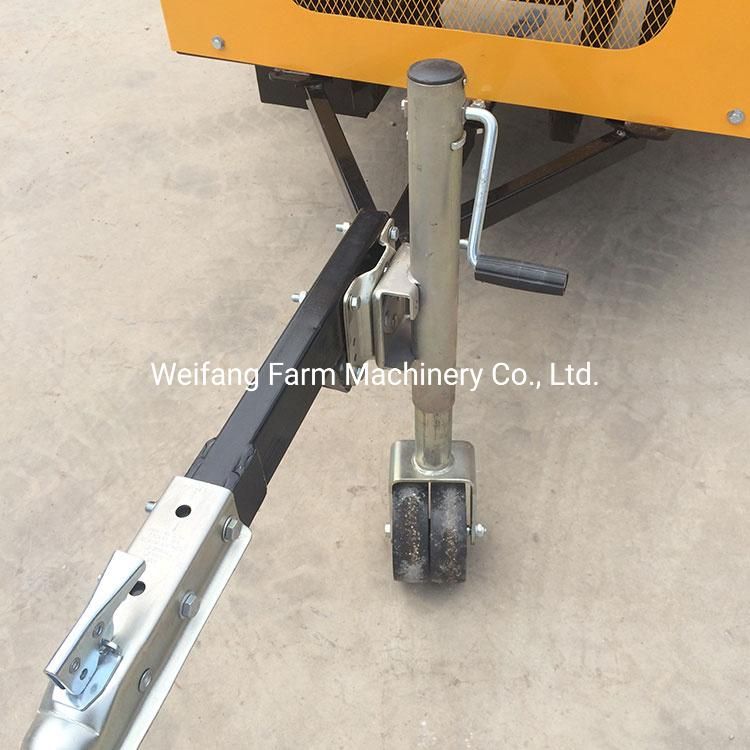

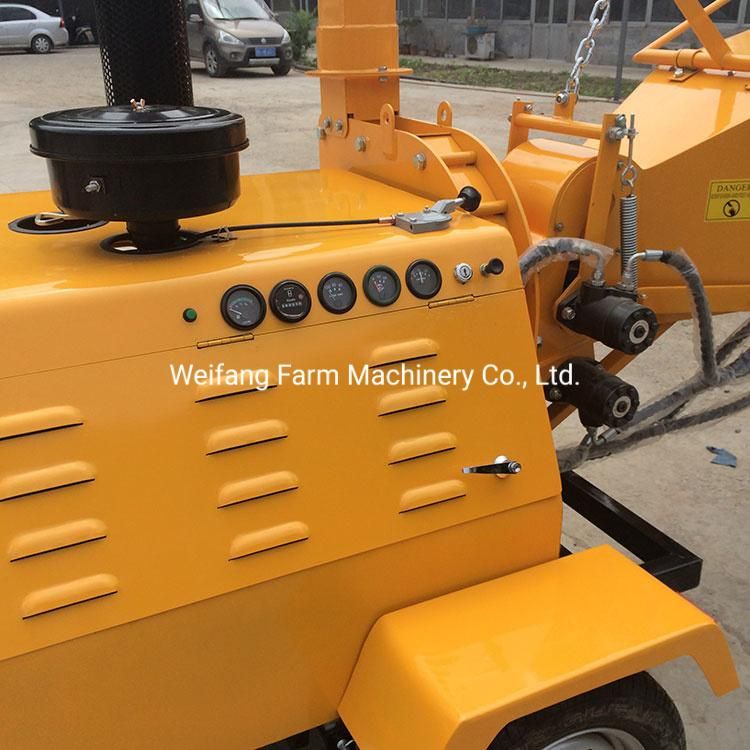

ATV Tractor Car Mounted Wheeled Diesel Wood Chipper

ATV Tractor Car Mounted Wheeled Diesel Wood Chipper

ATV Tractor Car Mounted Wheeled Diesel Wood Chipper

ATV Tractor Car Mounted Wheeled Diesel Wood Chipper

ATV Tractor Car Mounted Wheeled Diesel Wood Chipper

ATV Tractor Car Mounted Wheeled Diesel Wood Chipper

Specification

Model	WC-18H	WC-22H	WC-30H	WC-40H	WC-50H
Log Dia. Max	200mm/8inch	200mm/8inch	200mm/8inch	200mm/8inch	200mm/8inch
Diesel Engine Power	changchai 18hp diesel engine	changchai 22hp diesel engine	changchai 30hp diesel engine	changchai 40hp diesel engine	changchai 50hp diesel engine
Flying Wheel Diameter	600mm	600mm	600mm	600mm	600mm
Thickness of Flying Wheel	25mm	25mm	25mm	25mm	25mm
Feeding System	hydraulic feeding system	hydraulic feeding system	hydraulic feeding system	hydraulic feeding system	hydraulic feeding system
No. of Blades	2pcs or 4pcs optional	2pcs or 4pcs optional	2pcs or 4pcs optional	2pcs or 4pcs optional	2pcs or 4pcs optional
Size of Chips	thickness< 4mm	thickness< 4mm	thickness< 4mm	thickness< 4mm	thickness< 4mm
Tyre Size	155-65R13, tubeless tire	155-65R13, tubeless tire	155-65R13, tubeless tire	155-65R13, tubeless tire	155-65R13, tubeless tire
Discharge Hole Rotation Angle	360°	360°	360°	360°	360°
Structure Weight	1250lbs	1300lbs	1350lbs	1400lbs	1650lbs
Working Efficiency	7-8m³/h	7-8m³/h	8-9m³/h	9-11m³/h	10-14m³/h

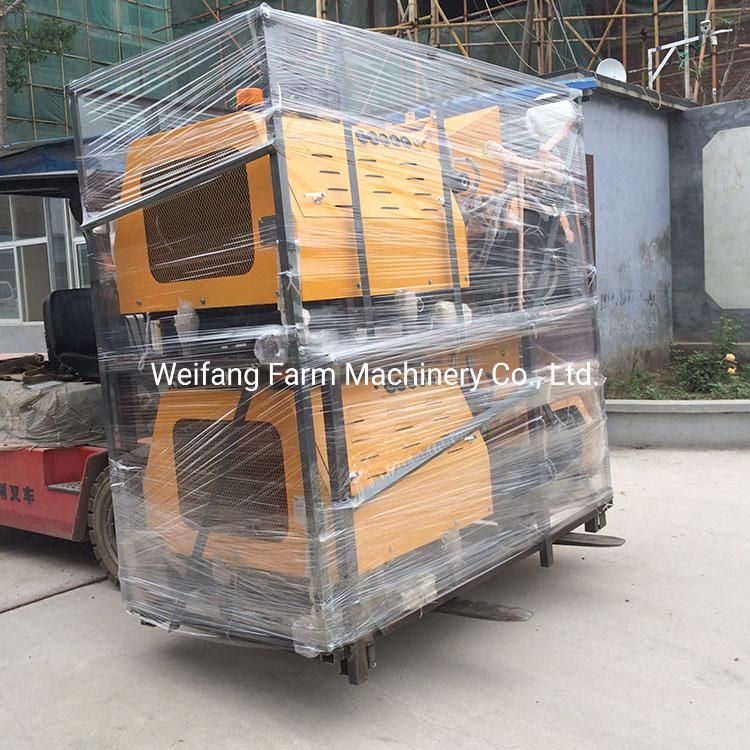

Packaging Detail

1. One 20GP container can hold 10units in iron crate packing.
2. One 40HC container can hold 20units in iron crate packing.
