Shutter Cone Fan Axial Flow Air Cooling Fans Ventilation Exhaust Fans for Poultry House Farming Animal Husbandry Livestock Equipment Ventilator with CE
Shandong Yuyun Sanhe Machinery Co., Ltd.- After-sales Service：2 Years
- Type：Poultry House, Greenhouse, Industrial Factory
- Usage：Ventilation and Cooling Equipment
- Application：Pig Swine Chicken Cow
- Power Source：Electric
- Certification：ISO9001:2008, CE
Base Info
- Model NO.：DJF(t)
- Condition：New
- Warranty：2 Years
- Frame Material：Galvanized Sheet
- Drive：Belt Drive
- Belt：Japanese Mitsubishi
- Motor：Quality Chinese Motor
- Shutter Open System：Push-Pull Opening System
- Bearing：Imported Bearing
- Mounted：Wall Mounted
- Belt Pulley：High Strength Aluminum-Magnesium Alloy
- Power Supply：Electric
- Power：0.37-1.1kw
- Apply：Poultry House, Greenhouse, Industrial Factory
- Name：Djf(T) Shutter(Centrifugal Push Pull) Cone Fan
- Fuction：Ventilation Air Cooling
- Form：Poultry House Farming Animal Husbandry Livestock
- Transport Package：Standard Paper Carton
- Specification：DFJ(t)
- Trademark：Yuyun Sanhe
- Origin：Shandong China
- HS Code：8414809090
- Production Capacity：300PCS,Day
Description
50 / 601380*1380*1430
Product Description:

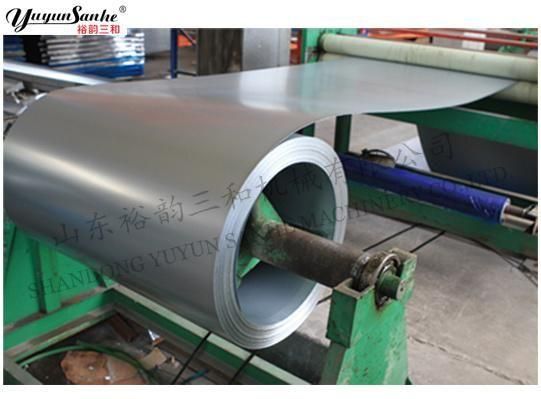

Frame 1.Material: Hot-dip galvanized sheet 2. Thickness of galvanized layer: 275g/sqm
Advantage:
Extremely improves the anti-corrosion performance. Longer lifespan and strong anti-oxidation.
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
Type: A type
Advantage:
Famous brand, Long service life, maintenance free
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided
2. Spring: 304 stainless Steel, no deformation ,no rust.
Advantage:
Light weight, no deformation, long service life.
Added with wear-resistant shaft sleeve, reducing friction , ensure the shutters open flexibly.
Product Description:
Advantage:
Extremely improves the anti-corrosion performance. Longer lifespan and strong anti-oxidation.

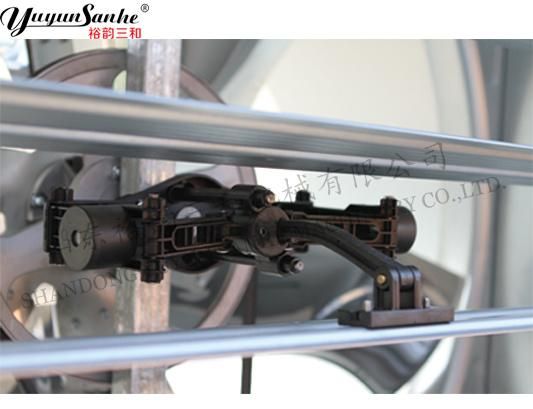

Opening System
1.Material: High quality Nylon PA662.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

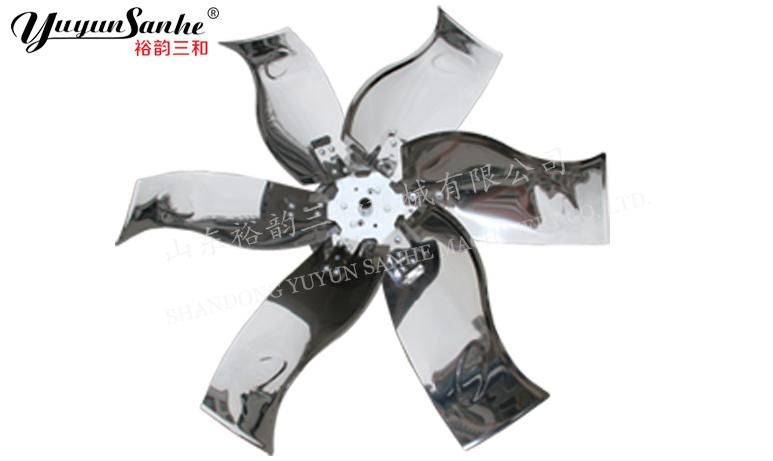

Fan Blades
1. Material : 430 stainless steel, thickness 1.2mm2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

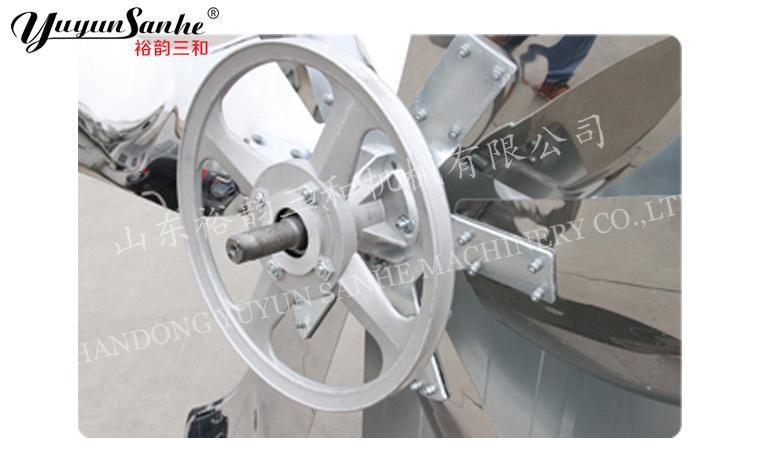

Belt Pulley
1. Material: High strength aluminum-magnesium alloy by die-casting.2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.

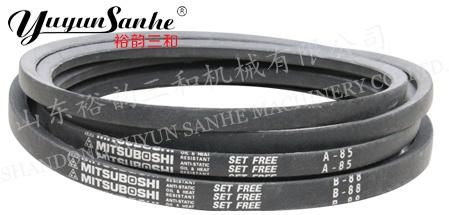

Belt
Brand: Mitsuboshi belt (Japanese)Type: A type
Advantage:
Famous brand, Long service life, maintenance free
Blade Support Base
1.Material: Aluminum Magnesium Alloy.2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided
Linking Part
1. Material: Aluminum Alloy2. Spring: 304 stainless Steel, no deformation ,no rust.
Advantage:
Light weight, no deformation, long service life.
Added with wear-resistant shaft sleeve, reducing friction , ensure the shutters open flexibly.

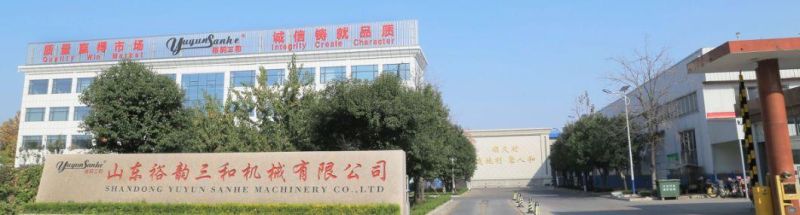

About our Company

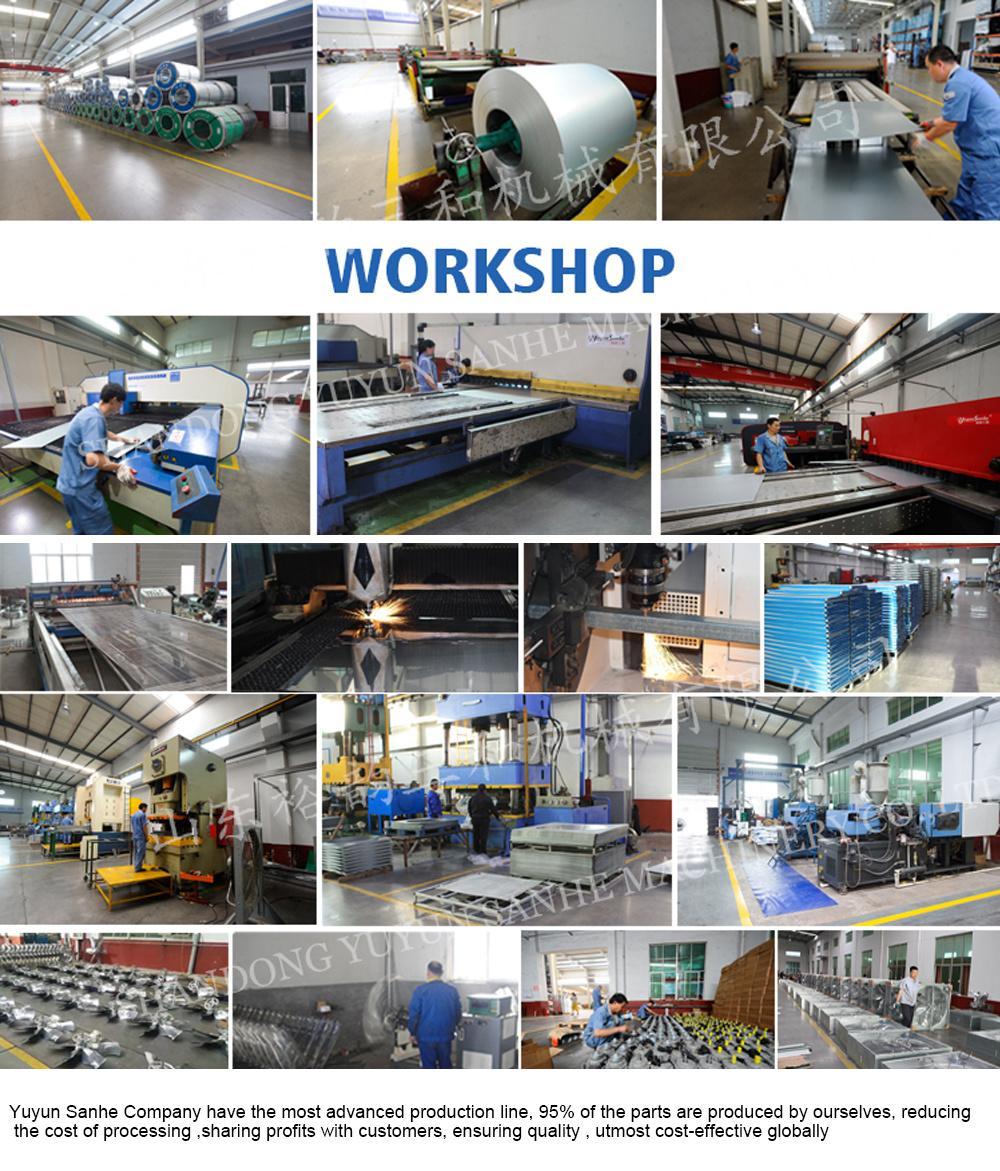

Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in
China,equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
