• Model NO.：SH-1800, SH-2750, SH-3200
• Power Source：No
• Heating and Ventilation Equipment Type：No
• Epidemic Prevention Equipment：No
• Blade Type：No
• Computerized：Non-Computerized
• Certification：ISO9001:2008, CE
• Condition：New
• Warranty：3 Years
• Product Name：Feed Silo,Storage Bin,Storage Silo
• Silo material：Galvanized Steel
• Zinc-Coated Thickness：275g,Sqm
• Silo Diameter：1800mm, 2750mm, 3200mm
• Capacity (T)：2.6t--24.05t
• Capacity (Cbm)：39.6cbm36.15cbm
• Silo Height：3418mm--7435mm
• Layers：1-3
• Legs：4,6
• Transport Package：Pallet
• Specification：International standard
• Trademark：Yuyun Sanhe
• Origin：Shandong China
• Production Capacity：100 PCS,Day
• Package size per unit product：120.00cm * 150.00cm * 100.00cm
• Gross weight per unit product：800.000kg

3.96341814SH-1800-218003.86.07423124SH-1800-318004.88.19504234SH-1800-1 (plus)18002.63.96382014SH-1800-2 (plus)18003.86.07463324SH-1800-3 (plus)18004.88.19544634SH-2750-2275011.515.8529426SH-2750-3275013.820.6610936SH-2750-4275017.125.5691836SH-3200-2320015.523.11580926SH-3200-3320022.529.63662236SH-3200-4320024.0536.15743536

Product Details:

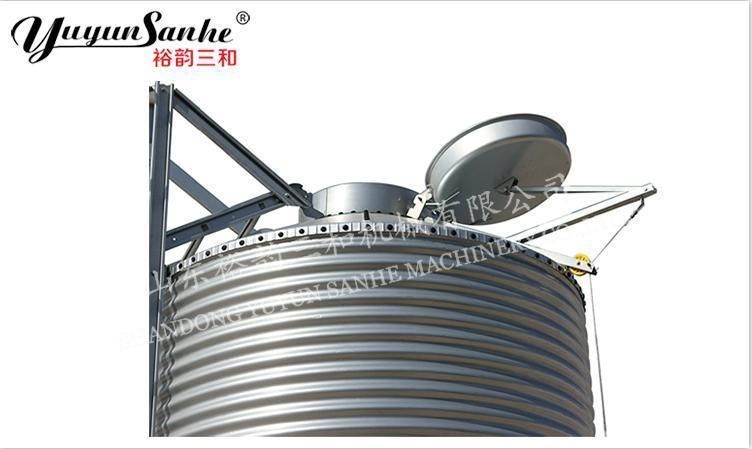

Feed Inlet & Inlet Cover
1.Enlarged the top feed inlet for easy full of feed
2.The movable silo cover is made of 275g/sqm hot-dip galvanized sheet after one-time stretching.
3. The specially designed automatic elastic torsion spring control structure and the limit plate enable workers to open and close the cover freely on the ground, which is safe and convenient.
4. The cover fittings are all made of 304 stainless steel, high strength, no fracture, no rust.

Air Duct
The roof sheet has an air duct, which can balance the air pressure inside and outside the silo, discharge various gases and heat, ensure smooth feeding and keep the silo inside clean.

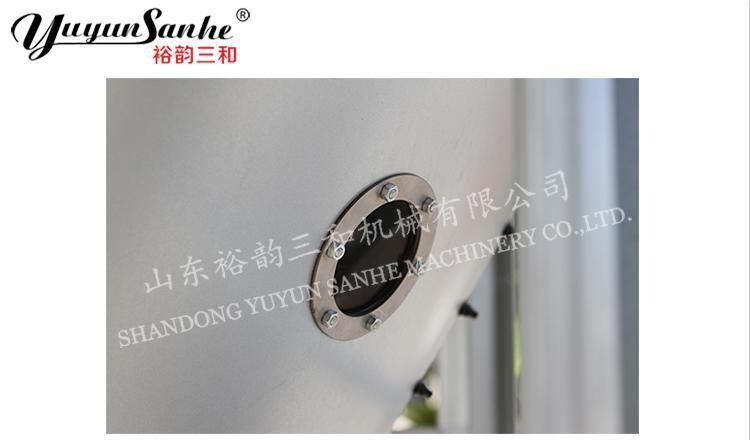

 Observation Window1. Transparent observation windows are respectively provided on the silo ring and the silo hopper. 2.The windows are made of plastic injection molding, with strong pressure resistance
and good light transmittance, making it easy to check the storage status.


 Ladder&Security Cage1. The mounting ladder is molded from a whole piece of hot-dip galvanized steel plate with anti-skid design, which is firm and
non-slip, good stability and convenient installation.2. At the same time, it is equipped with a security cage, which is safe and reliable, and is convenient for observing the feed level and maintaining the silo.

8.8 Grade BoltsThe hopper sheets are fixed by 8.8 grade high-strength hot-dip galvanized bolts, and the exposed bolt part is equipped with a
specially designed rubber nut, which is beautiful and does not rust

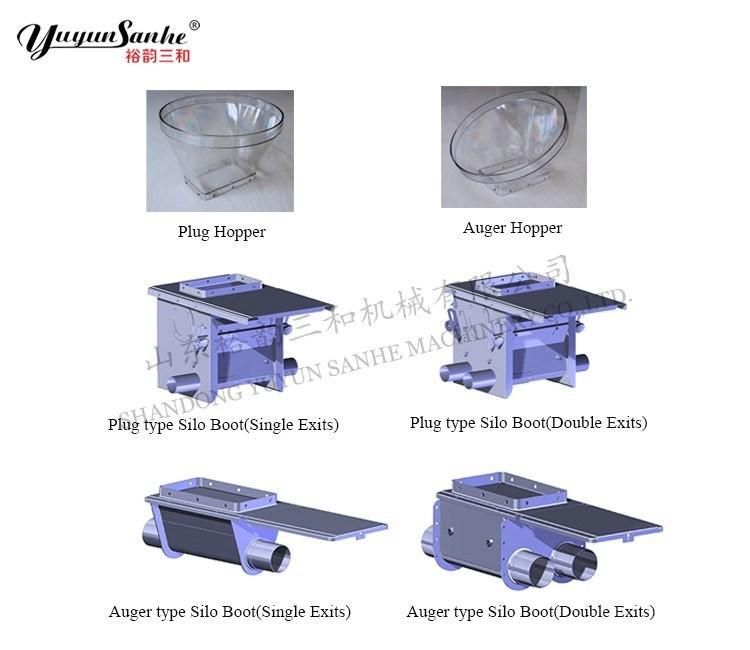

Optional Parts:

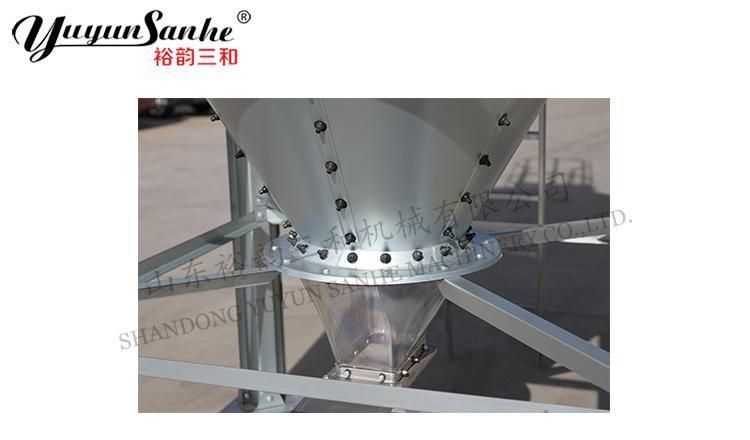

In order to meet the needs of feed transportation, the silo bottom is equipped with transparent hopper and silo boot.
The transparent material is convenient to observe the feeding situation.
Different of bottom cone bucket with silo boot can meet complex feed conveyor requirement



                                                                 About Our Company

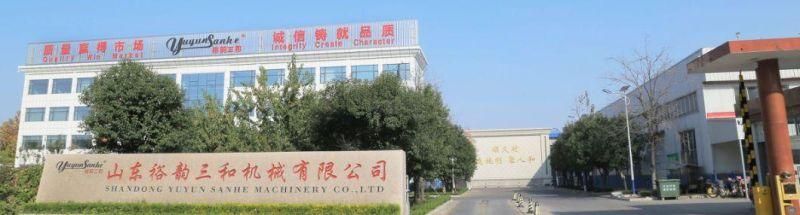

Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in China
,which equipped with the most advanced feed silo  production lines , 95% of the parts are produced by ourselves, reducing the cost
of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.

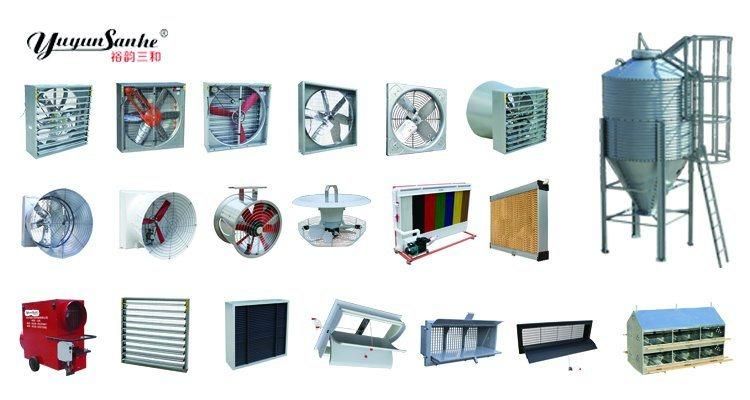

Main Products:
