AC/DC Filling Pump for Disinfectant Water
Fuzhou Tycoon Imp. & Exp. Co., Ltd.- Usage:Irrigation, Drainage, Drainage and Irrigation, Water
- Type:Diaphragm Pump
- Power Source:Electricity
- Drainage & Irrigation Mode:Sprayer
- Pump Type:Diaphragm Pump
- Material:Metal
Base Info
- Model NO.:FL-SERIES
- Ground Drainage and Irrigation Machinery Type:Pumping Irrigation
- Certification:ISO9001:2008, CCC, CE
- Condition:New
- Application Field:Agriculture, Livestock, Aquaculture, Forestry
- Transport Package:Box
- Trademark:LifeSRC
- Origin:China
- HS Code:84137099
- Production Capacity:100000PCS Per Month
Description
Basic Info.
Model NO. FL-SERIES Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008, CCC, CE Condition New Application Field Agriculture, Livestock, Aquaculture, Forestry Transport Package Box Trademark LifeSRC Origin China HS Code 84137099 Production Capacity 100000PCS Per MonthProduct Description
17L/min auto pressure self priming electric diaphragm pump
Application:
Multi-fixture for RV & Marine fresh water installations. Other uses may include 100-240V AC pressurized water systems in cabins. This pump may be used for general fresh water, sea water & salt water transfer. (Liquid with weak acid & alkaline is ok)
Special function:
? Quiet Performance
? Runs dry without damage
? Self Priming
? Built-in Check viton/ EPDM Valve
? Easy Installation
? Thermally Protected
Type: 4 Chamber Diaphragm
Ports: 1/2"-14 NPSM-Female
Liquid: 136 °F [60 °C] Max
Self-priming: 6 feet [within 2M]
Inlet PSI: 17 PSI [1.17Bar] Max
Run Dry: Yes
Motor: Permanent Magnet, Intermittent
Duty Protection: Thermal Overload, Automatic Restart
Leads: With 180cm wire & plug
Approvals: CE & Rohs
Warranty: 1 Year Limited Warranty. Contact pump agents for details

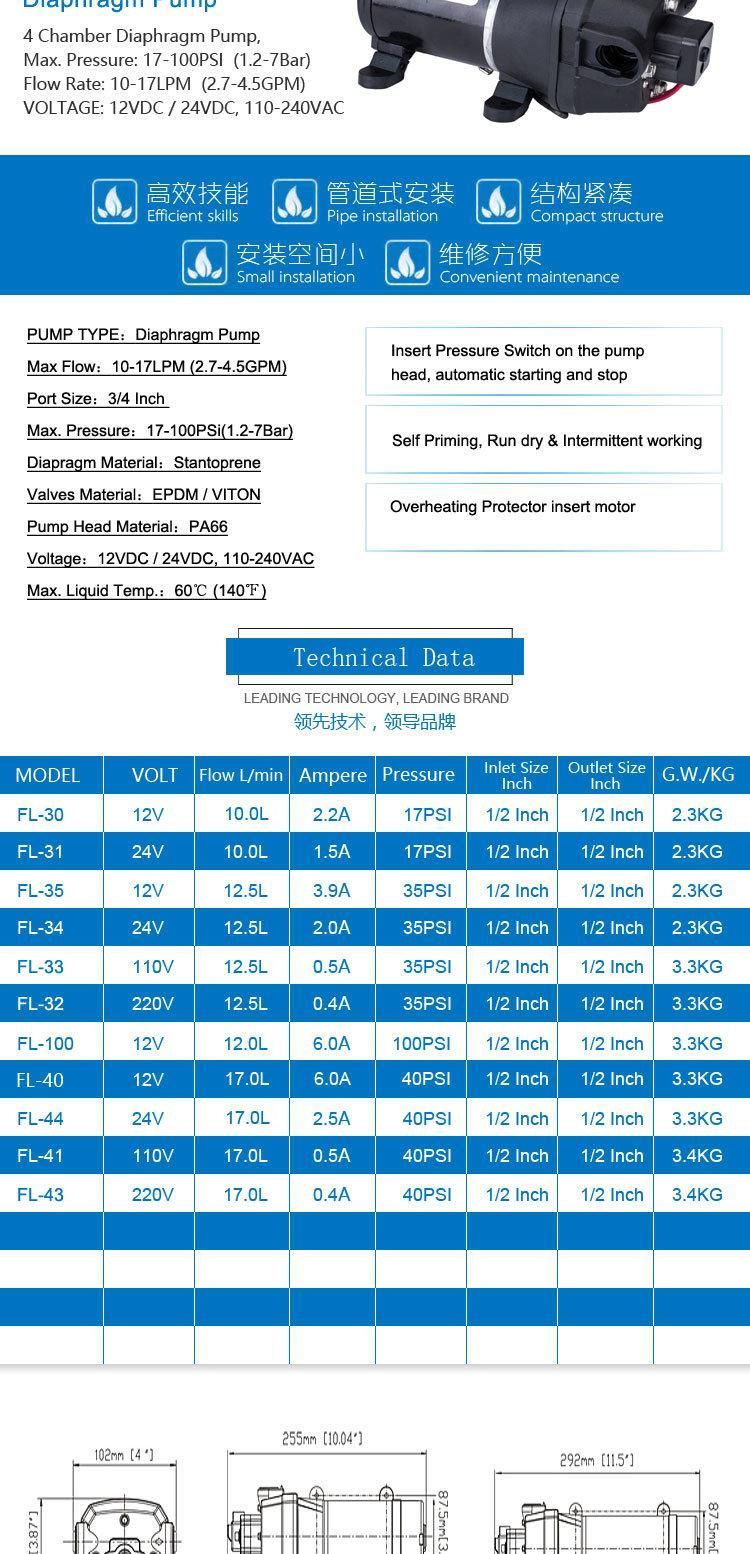

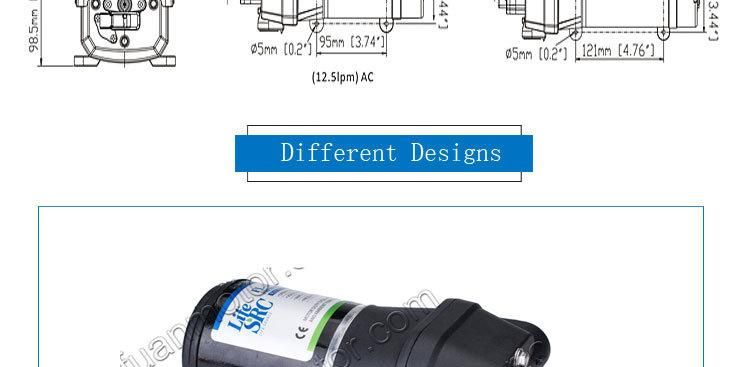

TECHNICAL DATA:
