• Model NO.：WSJY-120
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Capacity：150 Sets Per Month
• Key Word 1：Feed Pellet Machine
• Key Word 2：Fish Feed Machine
• Key Word 3：Fish Food Machine
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：WSJY
• Origin：Zhengzhou
• HS Code：8474802000
• Production Capacity：250kg H

Basic Info.

Model NO. WSJY-120 Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Capacity 150 Sets Per Month Key Word 1 Feed Pellet Machine Key Word 2 Fish Feed Machine Key Word 3 Fish Food Machine Transport Package Export Wooden Cases Specification ce co ccc Trademark WSJY Origin Zhengzhou HS Code 8474802000 Production Capacity 250kgH

Product Description

Puffing Floating Fish Food Pellet feed extruder Machine
Flow chart of floating fish feed pellet making machine
1. Start the machine → 2. Add a little water and start the cutter → 3. Add wet material;
start the feeder When the puffed Position in front becomes heat →4. Adjust the cutter speed
Main specification of the floating fish feed pellet machine
1.Fish feed pellet machine is a new-style line for improving market of fish feed pellet machine, which is developed successfully with our many years exploit experiences on food machinery.
2.Producing floating/sinking fish feed pellets, we can provide users the special usable aquatic feed formulations.
3.Ensure that the hardness of feed, water resistance, broken resistance, stability, prevention of water pollution, it can sterilize the food, make the pellet food nutrient-rich, easy to absorb.
1) Raw material:
Corn, wheat, soybean, grain, bone powder etc.

2) The raw material need grind into 60-80Mesh

3) The mositure content of the raw material need to be: 20-30%

4) The pellet shapes and the machine voltage are adjustable if you have any special requirement.


II Brief introduction of the floating fih feed making machine
A. With different moulds, the machine can produce different diameter food, such as 1.5mm, 2.5mm etc. So the food can meet different stage fish.
B. The floating fish feed pellet machine can make poultry-fodder, pet-fodder, as well as aquaculture-fodder and fishery feed.
C. It is mainly used to process the maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog, . Cat etc.

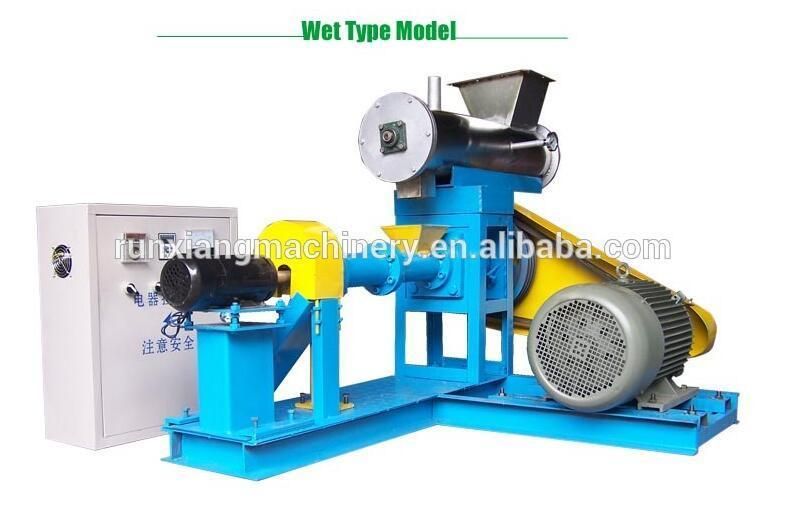

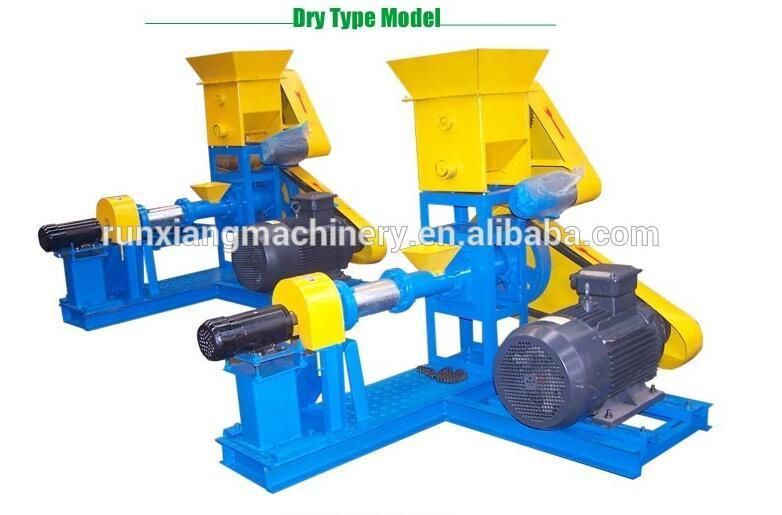

D. According to customers' demand and production scale, floating fish feed machine includes two kinds: Dry type machine and Wet type machine.



Model	WSJY- 52	WSJY-65	WSJY-80	WSJY-95	WSJY-105	WSJY-120
Capacity --- kg/h	80-100	120-180	200-250	300-400	400-500	500-600
Pelleting Diameter--- mm	1.-6mm	1 -10 mm	1 -10 mm	1 -10 mm	1-10 mm	1 -12 mm
Motor Power--- kw	7.5	11	15	22	30	37
Cutting Power--- w	750	750	750	750	750	750
Screw Rod Diameter-- mm	52	65	75	95	105	120
Cooking degree	>95%	>95%	>95%	>95%	>95%	>95%

The feed production line is goes as follows:
Material crushing----mixing----pellets extruding---pellet drying---pellet cooling---pellet packing.

1) Crusher----To crush the raw material into powder.  The powder fineness kept in 60-80 mesh.
2) Mixer -------To make all kinds of powder mixed evenly. The moisture content of the powder is 20%-25%.
3) Extruder----To make many kinds of feed pellet. Such as fish feed (floating tpye and sinking type), pet feed.
4) Dryer--------To remove the extra moisture of the pellet.
5) Cooler------ To reduce the temperature of the pellet after dring.
6) Packaging-- After cooling the feed pellet, we could package it.

*** Except all above machines, this line will need other equipment, such as storage bin, conveyor, Pneumatic conveying systems, unloader, fans, hanging feeder and so on.
*** We could help the customers to design the whole fish feed production line for floating fish feed production, and make sure the automatic operation with electric control, meet the demand of commercial production.
