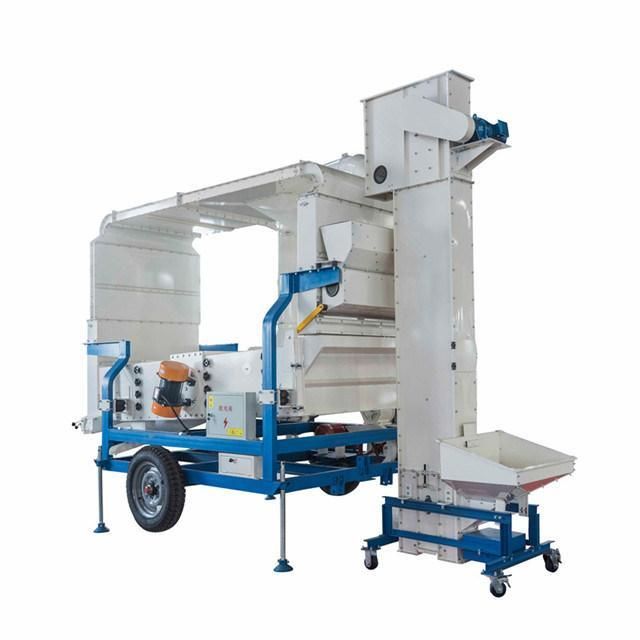

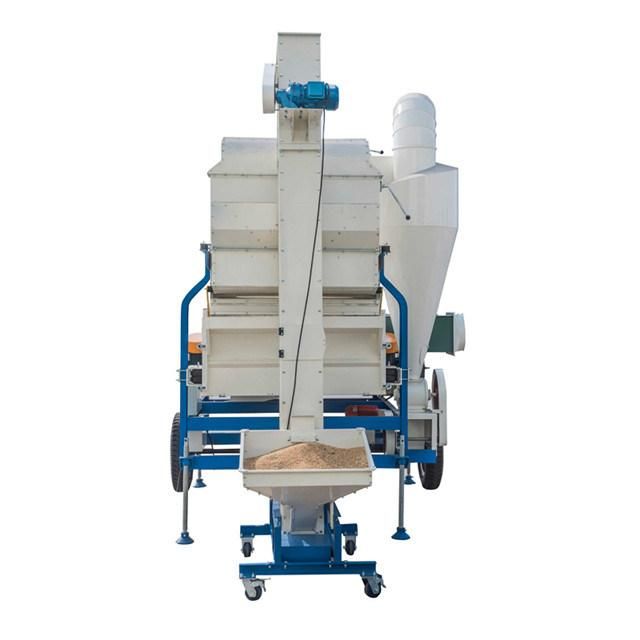

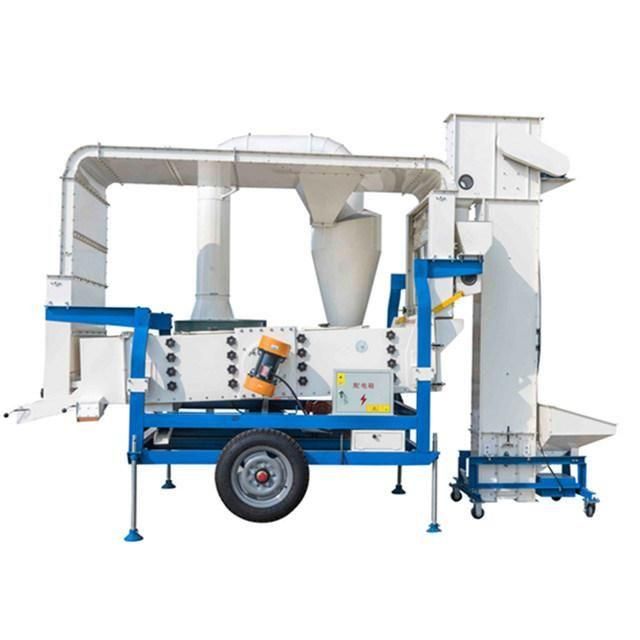

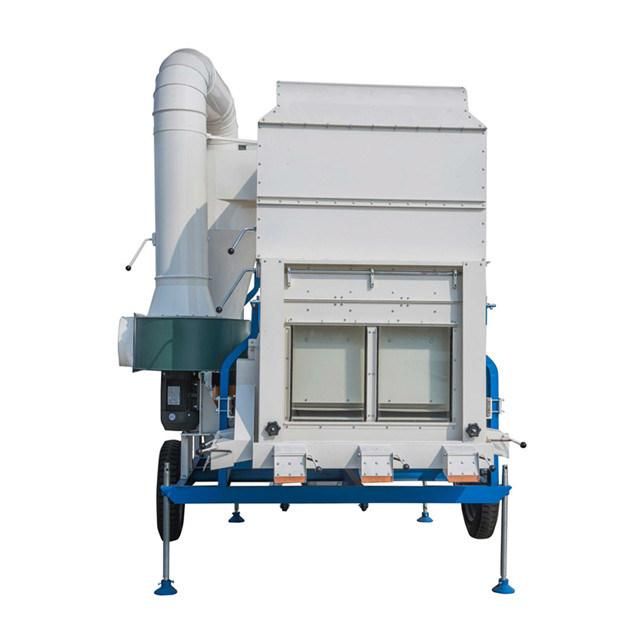

Wheat Corn Rice Paddy Bean Seed Cleaning Machine
Hebei Ruixue Grain Selecting Machinery Company Limited- Model:5XZC-7.5DS
- Capacity (T/H):7.5
- Power(Kw):9.9
- Weight(T):1.6
- Advantage:Double Air Cleaning System
- Color:White
Base Info
- Model NO.:5XZC-7.5DS
- Cleaning Rate:98%
- Function:Remove Dust, Impurity, Big and Small Impurity
- Application:Sesame, Cassia Seed, Sunflower Seed, etc
- Customized:Yes
- Transport Package:Wooden Case
- Specification:ISO9001 TUV SGS
- Trademark:SYNMEC
- Origin:Hebei China
- HS Code:84371090
- Production Capacity:90 Set,M
Description
Basic Info.
Model NO. 5XZC-7.5DS Cleaning Rate 98% Function Remove Dust, Impurity, Big and Small Impurity Application Sesame, Cassia Seed, Sunflower Seed, etc Customized Yes Transport Package Wooden Case Specification ISO9001 TUV SGS Trademark SYNMEC Origin Hebei China HS Code 84371090 Production Capacity 90 Set/MProduct Description
Wheat Corn Rice Paddy Bean Seed Cleaning MachineFeature

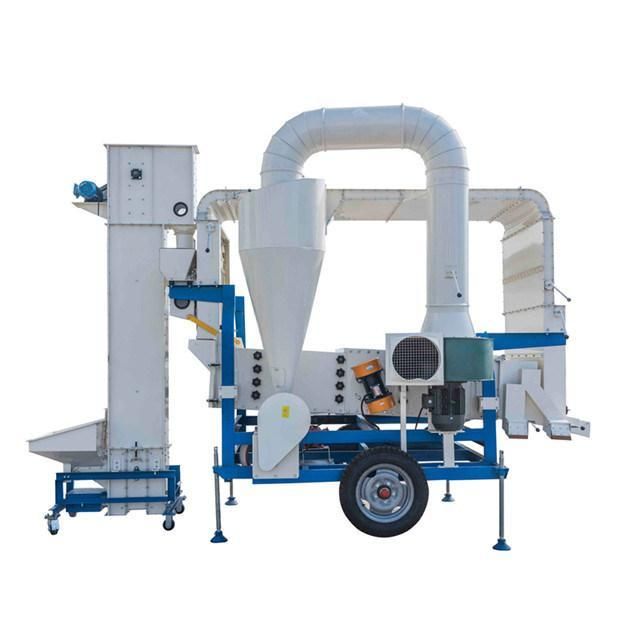

The Wheat Corn Maize Paddy Bean Seed Cleaning Machine equipped with Cyclone dust separator is professionally used for cleaning and grading seeds / grains.
Application
The Wheat Corn Maize Paddy Bean Seed Cleaning Machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.
Working principle
Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.
Specification
mode | Capacity(T/H) | Power(KW) | weight(MT) | Dimension(MM) | Remarks |
5XZC-3B | 3 | 4.25 | 1.2 | 3750*1650*2750 | Grain cleaniing and grading functions |
5XZC-5DH | 5 | 6.99 | 1.6 | 4650*1850*3100 | |
5XZC-7.5DS | 7.5 | 9.9 | 1.8 | 5150*2160*3400 | Double air cleaning system |
5XZC-15 | 3 | 7.25 | 1.3 | 3750*1650*2750 | Installed Wheat Huller and Cyclone Dust Separator |
5XZC-25 | 20 | 20.95 | 2.9 | 5820*2650*3600 | Double air cleaning system |
