Water Timer Irrigation Timer Controller Valve Controller Remote Control by Mobile APP and Computer Industrial Valve Controller
Shenzhen Power-Tomorrow Actuator Valve Co., Ltd.- Type：Irrigation System
- Power Source：Electricity
- Drainage & Irrigation Mode：Drip Irrigation Equipment
- Pump Type：Turbine Pump
- Material：Metal
- Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
Base Info

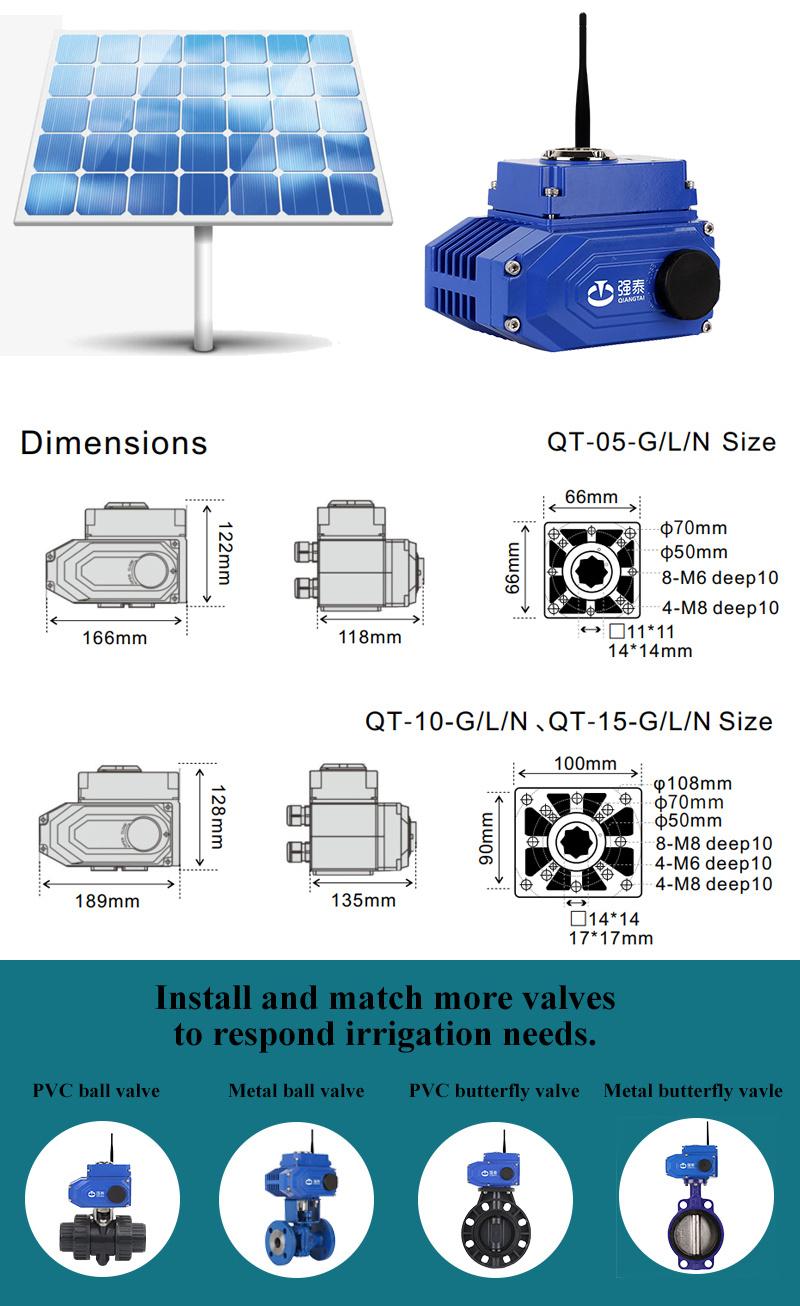

- Model NO.：QT-05-F, QT-10F, QT-15F
- Certification：CE
- Condition：New
- Application Field：Agriculture, Livestock, Aquaculture, Fisheries, Forestry
- Warranty：12 Month
- After-sales Service：12 Month
- Transport Package：Carton Box
- Specification：DN32-DN80
- Trademark：QOTO
- Origin：Shenzhen, China
- HS Code：8501310000
- Production Capacity：50000,Year
Description

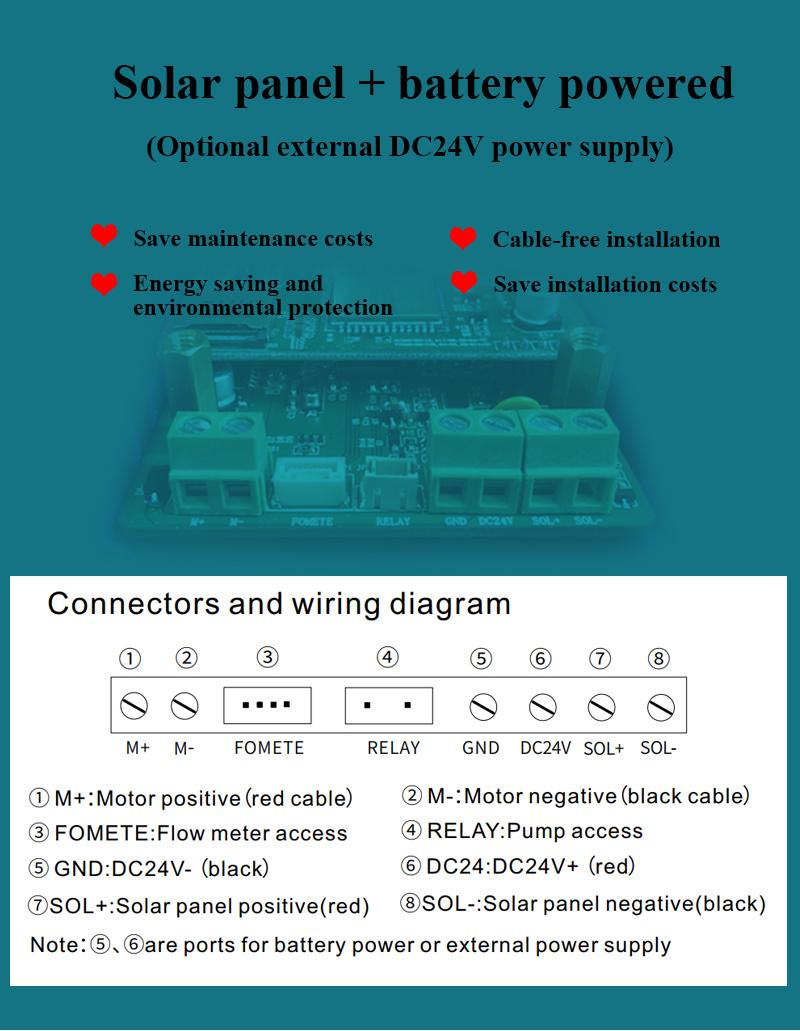

1.solar panel+lead acid
2.valve
3.flow meter--the biggest caliber:DN80
4. different size of antenna

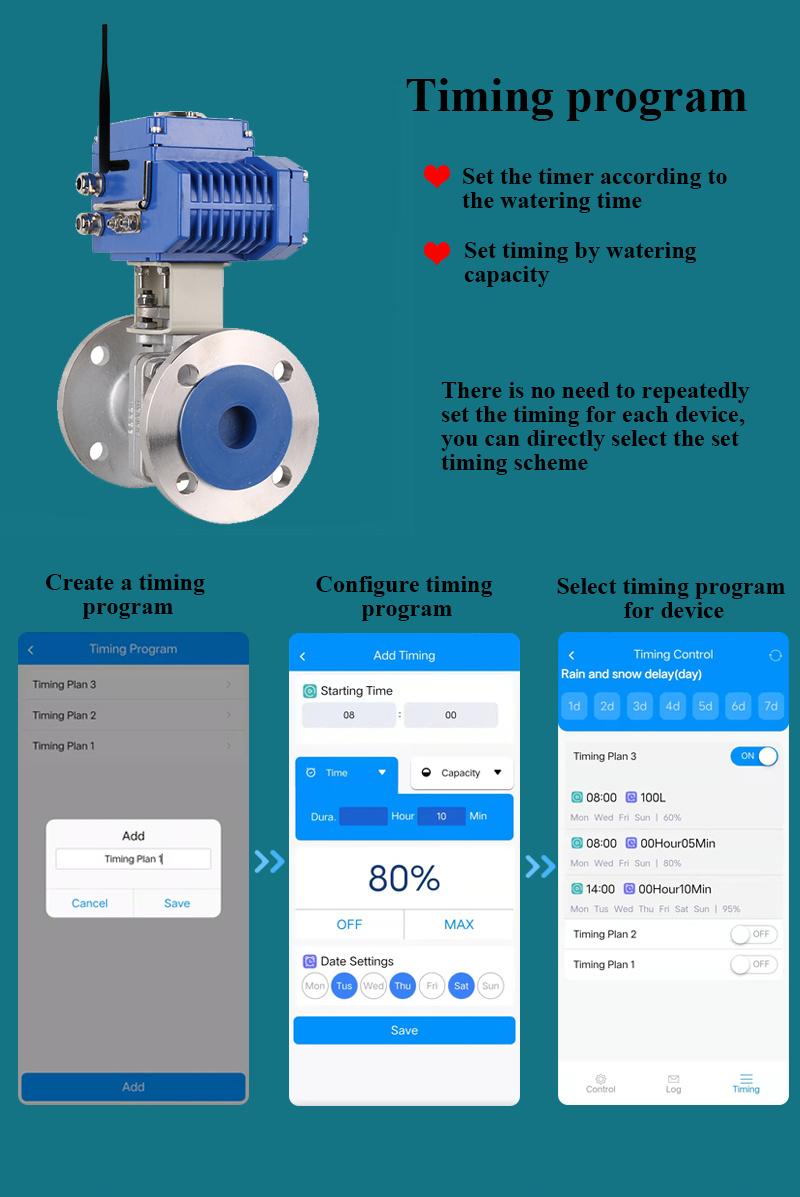

Main function 1,Remote control by Mobile phone or PC computer 2,Control the valve position by percentage 3,Irrigation water capacity setting, to control water consumption 4,Malfunction warning,water shortage warning(work with flow meter),low power warning etc,to provide secure user experience 5,When it start watering, the real-time feedback of consumption and time will reflect on the App(work with flow meter) 6,Power supply solution: powered by solar panel+lead acid batteries,green and 7 environment-friendly ,Timing function 8,Circular irrigation 9,Push notification of device 10,When the Internet is cut, the controller will keep watering according to schedule once the timing program is set. 11,Record of each water consumption and duration each month irrigation in rainy and snowy weather 13,Lora/NB-iot/4G optional commication protocol 14,Sharing devics function 15,Intelligent interconnect function 16,Signal strength indicate
Application:

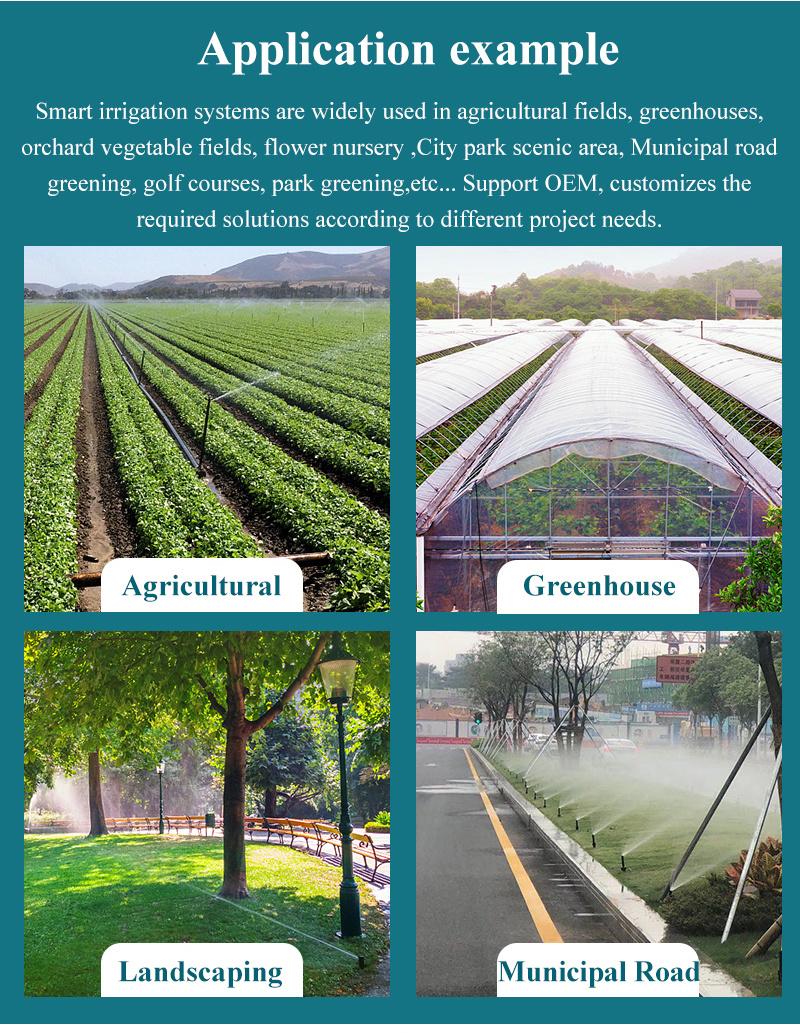

Smart irrigation systems are widely used in agricultural fields, greenhouses, orchard vegetable fields, flower nursery ,City park scenic area, Municipal road greening, golf courses, park greening,etc... Support OEM, customizes the required solutions according to different project needs.
FAQ

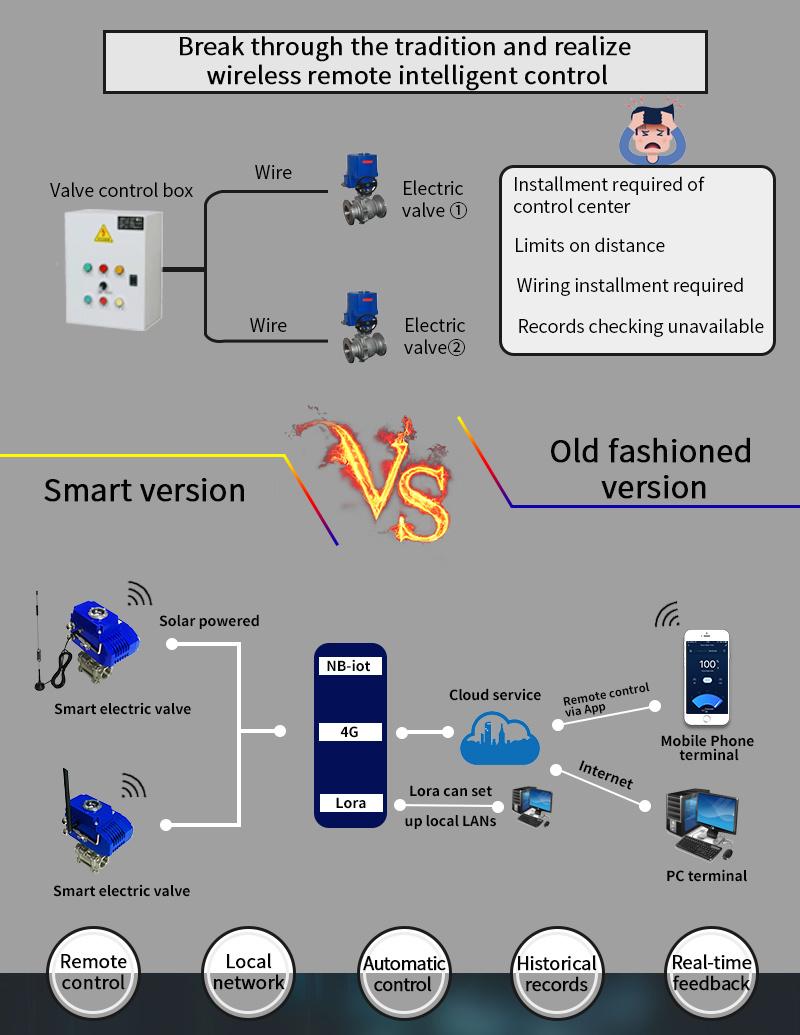

Q: 1. What is the difference between the traditional solenoid valve and the wireless irrigation controller?
A: The wireless irrigation controller is an intergated device which includes valve and actuator, using solar panel and batteries to open and close the valve. No more electric power cords like solenoid valves and no more PLC box.
Q: 2.What can I do with the App?
A: As we don't use PLC box to control the valve, we use App to operate the valve position. User can watch the water consumption and irrigation duration in the App. Once the irrigation program is set up, user can enjoy the secure automatic irrigation
Q:3.Can the water valve be used in conjunction with other smart devices?
A: In agricultural irrigation, the connnection with other machine like water pump and filtrators is very important, in our design, we can connect these devices all in one App
Q:4. Why the wireless irrigation controller works with flow meter?
A: The irrigation flow meter can detect the water shortage in the pipeline, and calculate the daily and monthly water consumption
