• Model NO.：HP-50
• Seedling plate(PP)：24tray 850*400*40
• Temperature：-10ºC-40ºC
• Size：1600*960*2200mm
• Transport Package：Wooden Box
• Specification：1600*960*2200mm
• Trademark：VIC
• Origin：China
• HS Code：8436800090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. HP-50 Seedling plate(PP) 24tray 850*400*40 Temperature -10ºC-40ºC Size 1600*960*2200mm Transport Package Wooden Box Specification 1600*960*2200mm Trademark VIC Origin China HS Code 8436800090 Production Capacity 5000PCS/Year

Product Description

                                      HP-50(50kg/d) Hydroponic fodder pasture growing machine

Applicable:
This kind of equipment is mainly used for growing fresh green grass from seeds. Hydroponic fodder is ideal grass for animal, poultry and livestock. Available 365 days of the year, no limit for the place and climate.Enclosure composite particle foam insulation board, internal structure, stainless steel.

Why hydroponic grown fodder becomes so popular?
Constant feed supply
Contains high quality protein
Highly rich in vitamins, minerals,enzymes
High energy content,high in moisture content
Widely used for feeding cattle,horse,rabbit,chicken,dog,sheep etc

Features for pasture sprout growing equipment
Year round cultivation, at any climatic conditions
 Irrigation by speed & time controls thereby saving water/fertilizers
Minimum power requirements with space& energy saving
Minimal labor required
Large savings on capital and operating costs over field agriculture

Internal pictures:

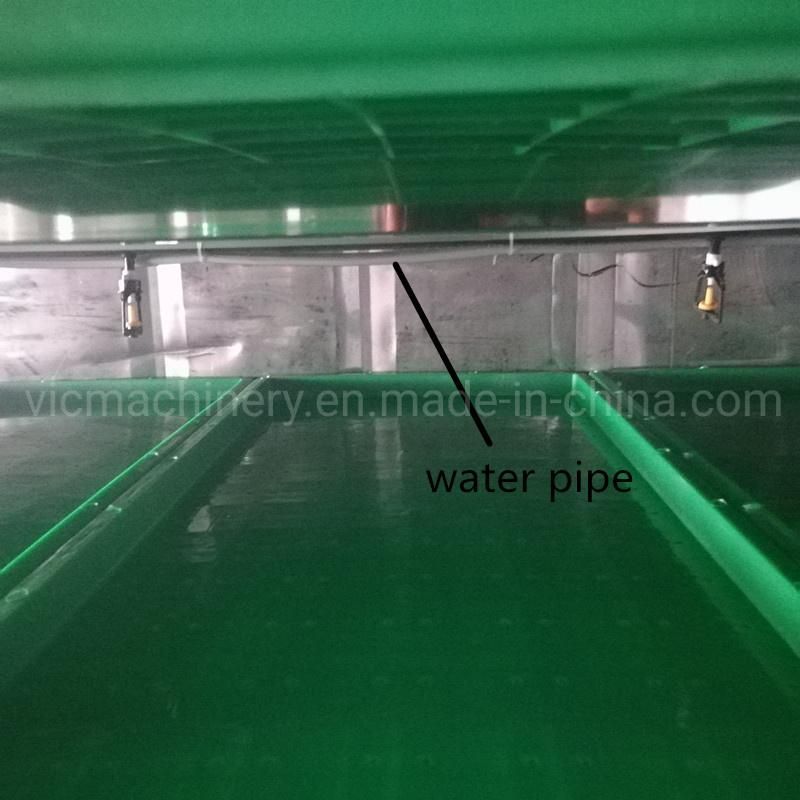

Water pipe:

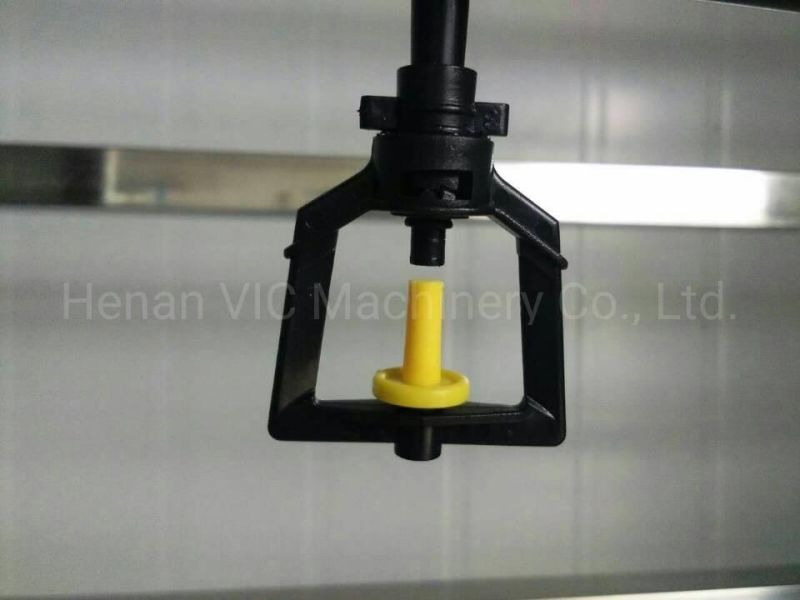

0.8mm atomized nozzles

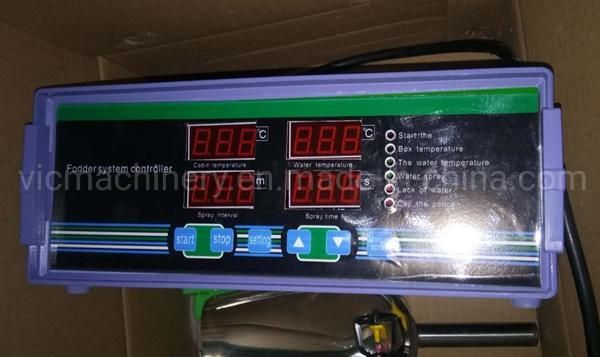

Controller

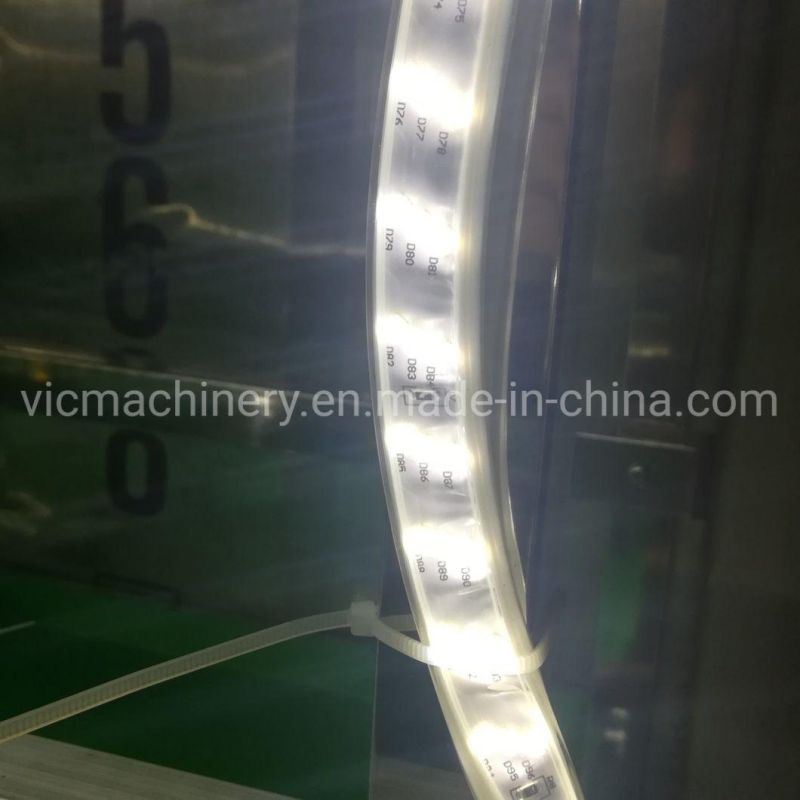

Growth light:

Transport cart

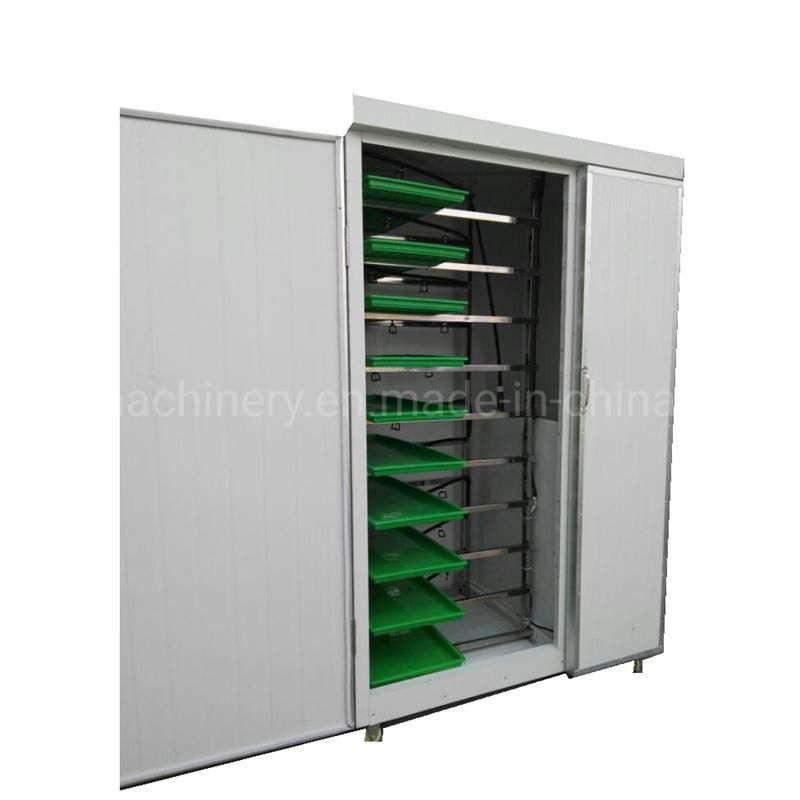

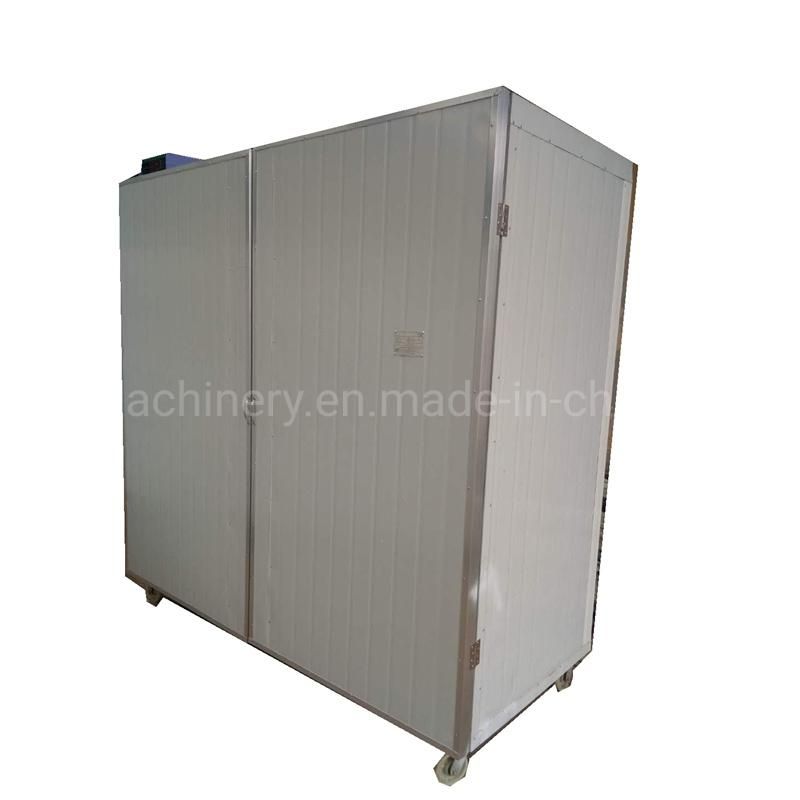

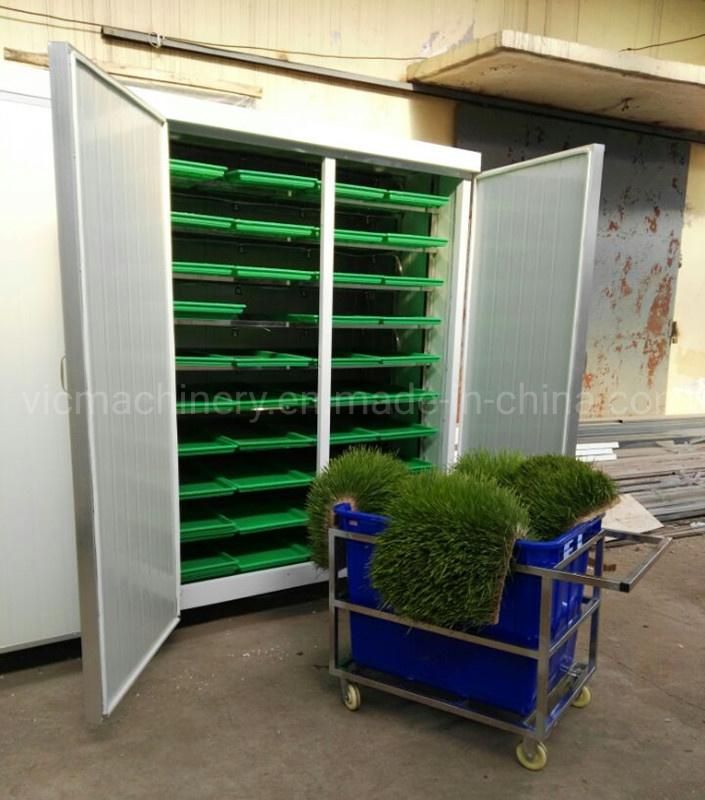

More machine pictures:




Main data:

Model	HP-25	HP-50	HP-100	HP-150	HP-200	HP-250	HP-500
Capacity	25kg/day	50kg/day	100kg/day	150kg/day	200kg/day	250kg/day	500kg/day
Power	1kw/day	1.5kw/day	1.5kw/day	1.5kw/day	2kw/day	3kw/day	4kw/day
Water consumption	0.05m3/day	0.05m3/day	0.05m3/day	0.15m3/day	0.2m3/day	0.2m3/day	0.25m3/day
Seedling plate(pp)	12tray 850*400*40	24tray 850*400*40	50tray 850*400*40	72tray 850*400*40	96tray 850*400*40	120tray 850*400*40	240tray 850*400*40
Temperature	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC	-10ºC-40ºC
Weight	100kg	100kg	160kg	200kg	300kg	900kg	1600kg
Size	1000*960*2200mm	1600*960*2200mm	2600*990*2200mm	3600*960*2200mm	4600*990*2200mm	5400*1000*2200mm	5500*2100*2200m

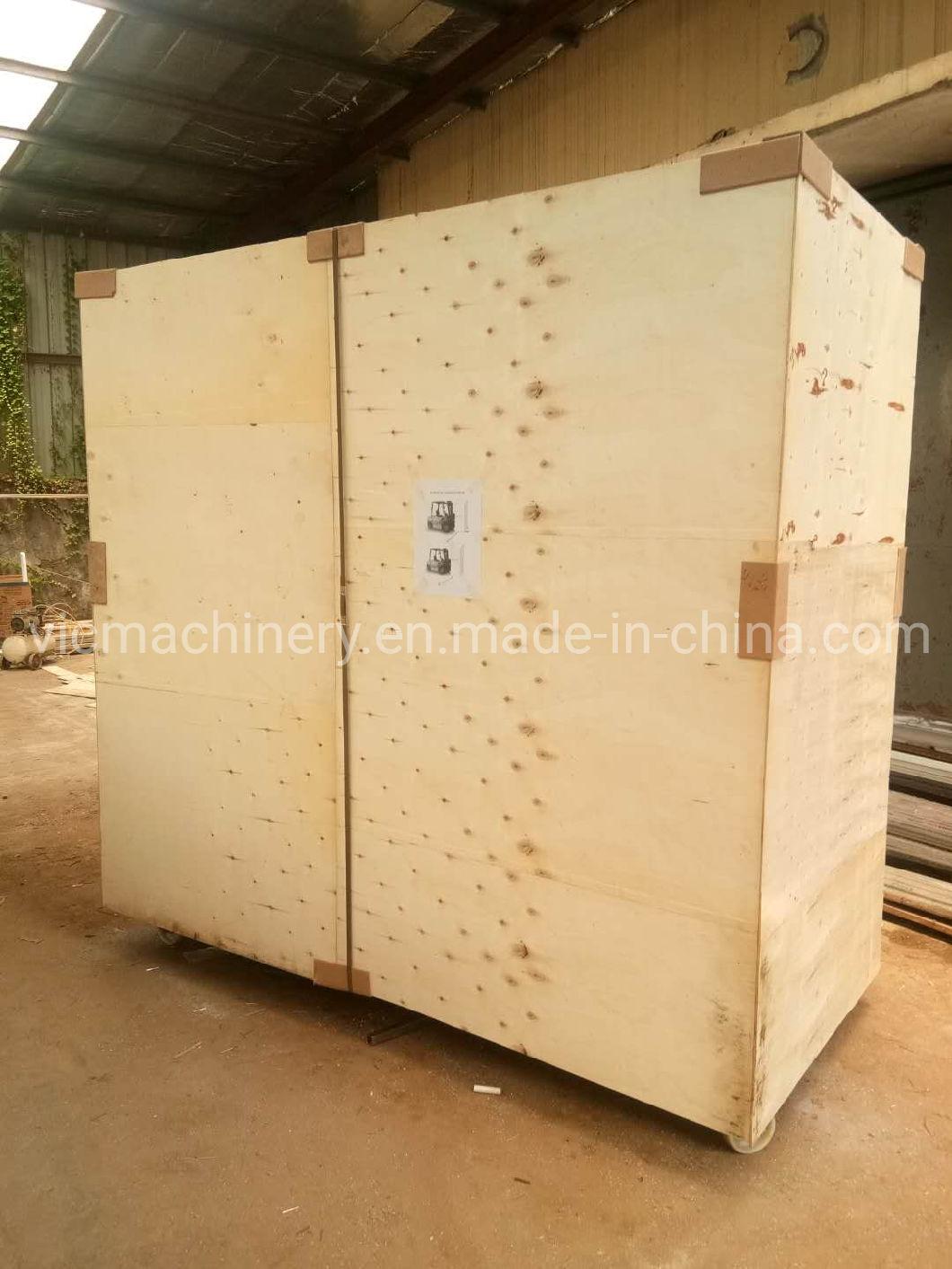

Package pictures:

Client visit:

Other types:
