• Drive Type：Gear Drive
• Arbor Configuration：Vertical Shaft
• Certification：CE
• Production Capacity：5000PC,Year

Basic Info.

Drive Type Gear Drive Arbor Configuration Vertical Shaft Certification CE Production Capacity 5000PC/Year

Product Description

Speicification for mainframe



Engine model: 15hp Loncin gasoline engine

Max working load: 2200lbs/min
Operational Capacity per tankful: 3.2hs
Transmission system: all gear drive and direct power transmission

Start type: recoil and electric
stage gears: 3 forwards and 2 Reverse

Wheel Size:5.0×10
Working speed: forward: 1.18,2.76,12.67km/h reverse:1.24,2.91 km/h

Handlebar: adjustable in height and sidewise in different positions. It can be orientated of 180°
Lubricating system: oil bath lubrication
Clutch type: Dry clutch With differential lock
P.T.O.: 990rpm at 3600rpm of the motor

G.W./N.W.: 128/118kg,



Specification for tiller:



working width:68cm
G.W./N.W.:40/36KGS Size:75*51*37CM



Specification for sickle bar mower



working width:120cm
G.W./M.W.:23/20KGS Ctn Size: 61*31*32cm
123*20*7cm



Other options:

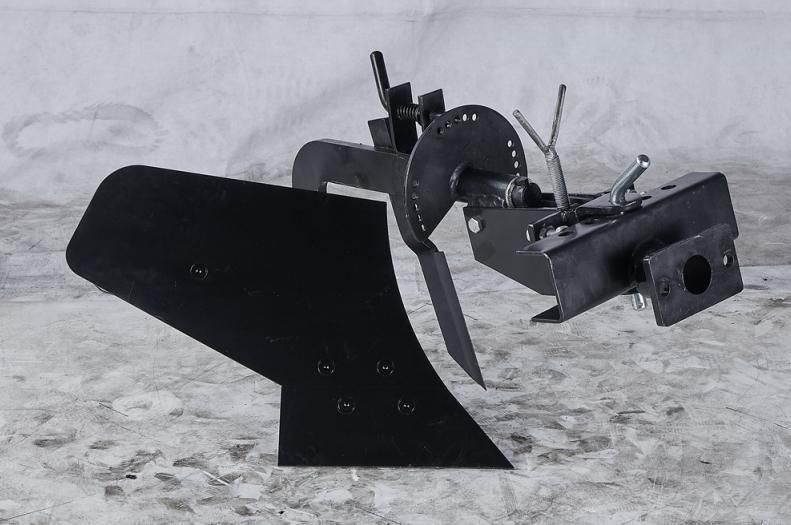

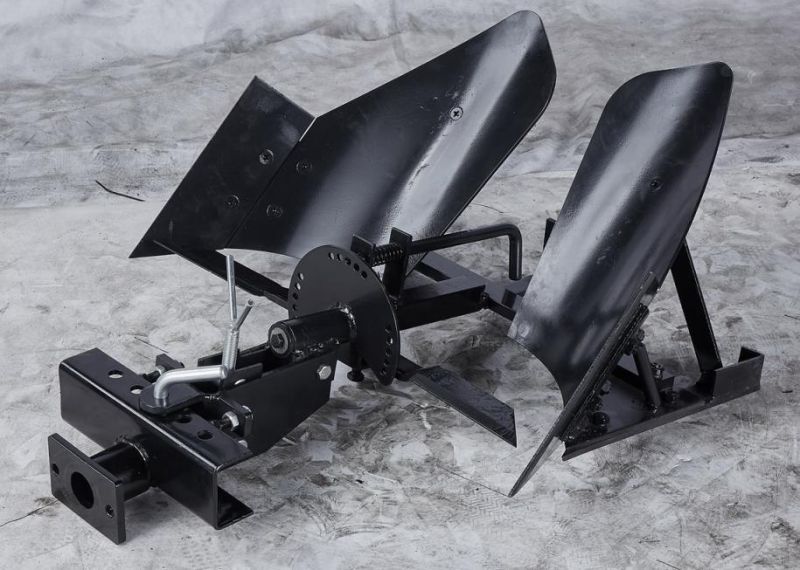

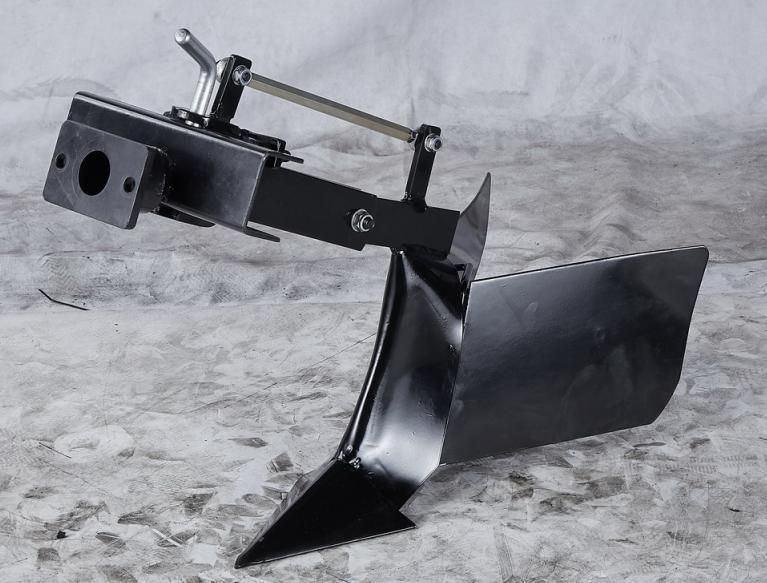

 rotate moldboard plow/moldboard plow/ridge plow
