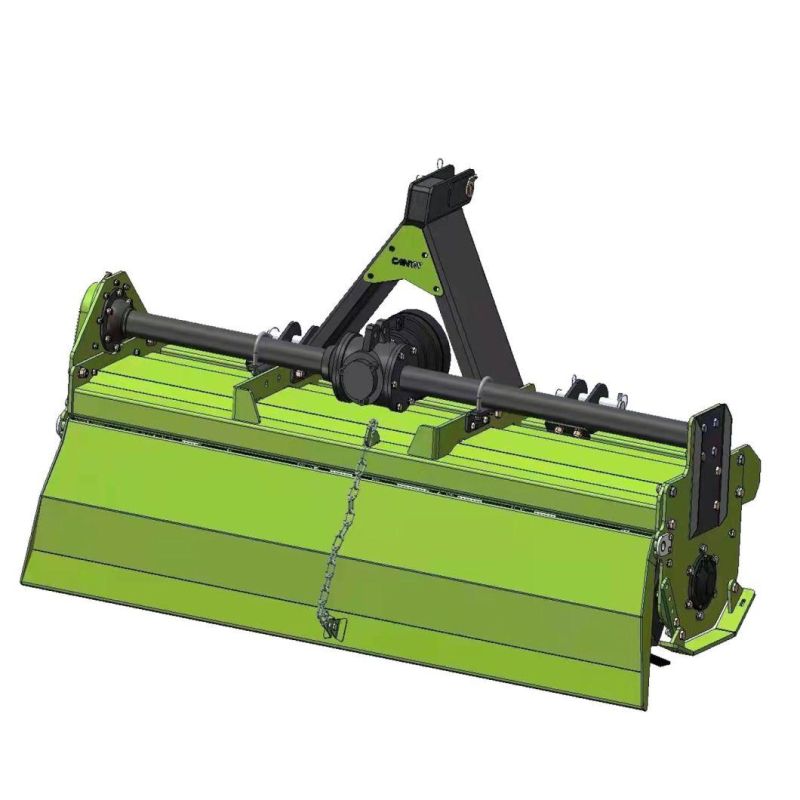

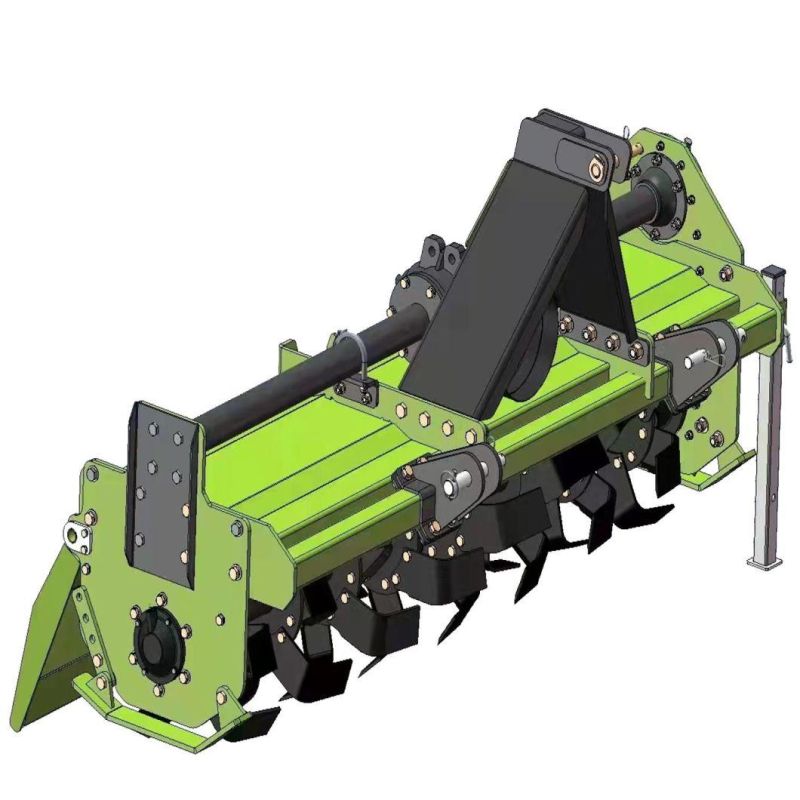

Hot Selling CE Standard Heavy Rotary Tiller Ign for European Market
Changzhou Qianyi Machinery Technology Co., Ltd.- After-sales Service：One Hour
- Type：Rotary Tiller
- Application Field：Agriculture, Forestry
- Farming Policy：Dry Cultivating Machinery
- Power Source：Tractor
- Operation：Soil Preparation Machinery, Movable Operation
Base Info
- Model NO.：IGN
- Traction Type：Hanging
- Drive Type：Gear Drive
- Arbor Configuration：Vertical Shaft
- Certification：CE
- Color：Green
- Warranty：One Year
- Transport Package：Iron Frame Transport
- Trademark：qianyi
- Origin：China
Description
Basic Info.
Model NO. IGN Traction Type Hanging Drive Type Gear Drive Arbor Configuration Vertical Shaft Certification CE Color Green Warranty One Year Transport Package Iron Frame Transport Trademark qianyi Origin ChinaProduct Description
| MODEL | IGN 90 | IGN 105 | IGN 125 |
| Structure Weight | 250kg | 265kg | 285kg |
| Tilling Width | 895mm | 1045mm | 1245mm |
| Tilling Depth | 150mm | 150mm | 150mm |
| No. Of Blade | 18 | 24 | 30 |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min |
| Tractor HP | 16-20hp | 20-28hp | 25-30hp |
| MODEL | IGN 135 | IGN 150 | IGN 180 |
| Structure Weight | 300kg | 320kg | 350kg |
| Tilling Width | 1345mm | 1495mm | 1795mm |
| Tilling Depth | 150mm | 150mm | 150mm |
| No. Of Blade | 30 | 36 | 42 |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min |
| Tractor HP | 25-30hp | 30-50hp | 40-75hp |
Rotary tillers manufactured by Breviglieri are all PTO-driven and are used to loosen and mix both firm soil, during primary tillage, and tilled soil (e.g. during secondary tillage to prepare the seed bed).
The tilling implements, which can consist of hoe, radial blade or spike assemblies mounted on a horizontal rotor (4 or 6 per flange), work by cutting and ripping clods of soil.
Rotary tiller cultivation can be performed as an alternative to plowing. It is useful in that it effectively breaks up the earth, even uprooting crop residue, and therefore generally eliminates the need for additional soil preparation.
These machines are most widely utilized in the horticulture sector and on naturally loose ground; the working depth is generally not greater than 15 cm.
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control and abundant technical force, our machines are mainly exported to European, North American and Southeast Asian countries.All of our machines are with one year warranty. We often insist on one principle"Better quality!Better service!Better price!"
