Zoomlion Te100 Wheeled Type Wheat Corn Combine Harvester Agricultural Machinery
Zoomlion Heavy Industry Science & Technology Co., Ltd.- Type：Wheat Combine Harvester
- Application：Rice, Corn, Wheat
- Power Source：Diesel
- Harvest method：Cutting
- Drive Type：Hydrostatic Drive
- Transmission：Mechanical Drive
Base Info
- Model NO.：TE100
- Certification：ISO9001:2008, CE
- Color：Green
- Condition：New
- Application Field：Agriculture
- Transport Package：SKD
- Specification：40HQ
- Trademark：zoomlion
- Origin：Anhui, China
- HS Code：84335100
- Production Capacity：10000sets,Year
Description
Basic Info.
Model NO. TE100 Certification ISO9001:2008, CE Color Green Condition New Application Field Agriculture Transport Package SKD Specification 40HQ Trademark zoomlion Origin Anhui, China HS Code 84335100 Production Capacity 10000sets/YearProduct Description

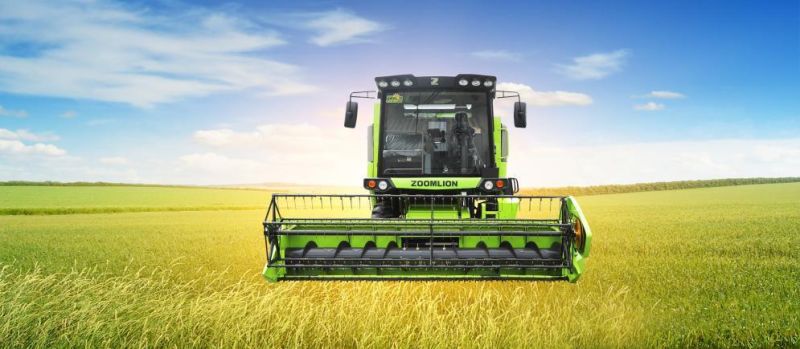

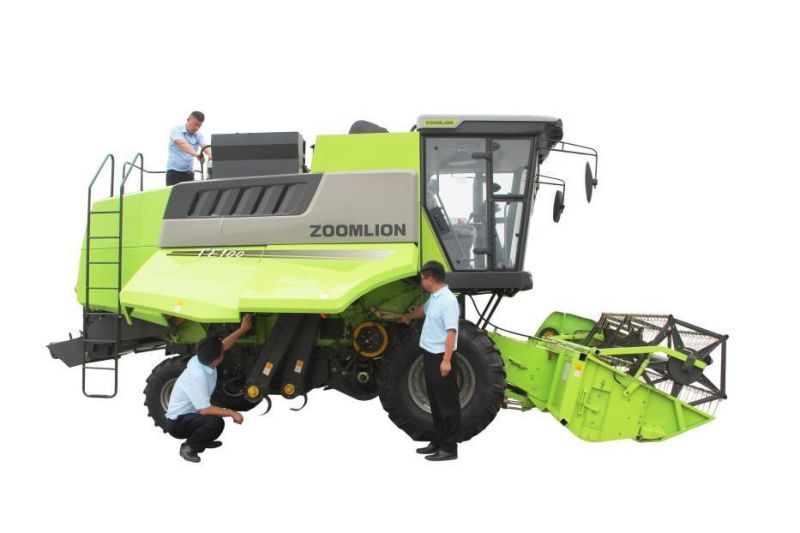

TE100 Self-propelled Wheat & Corn Combine harvester

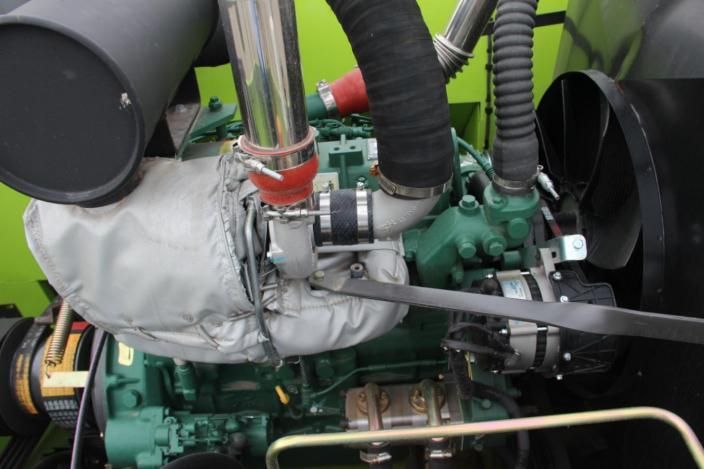

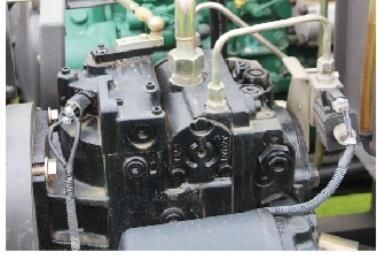

Strong power, high efficiency and high reliabilityYuchai 190 horsepower high pressure common rail engine provides high torque reserves and strong power;Hydrostatic drive travel system is applied, which can operate flexibly and improve efficiency;
Reinforced wobble box and grain unloading gearbox with longer service life.
Comfortable and safe drivingAir-conditioned cab with ergonomics optimization design is featured with dust prevention, shock absorption, noise reduction and more comfortable driving;

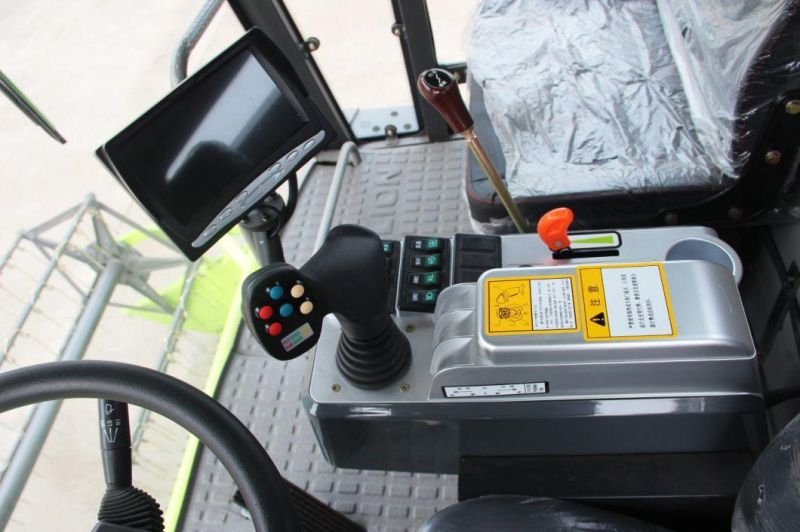

Multi-functional mono-lever control, which is convenient and comfortable;Hydraulic main clutch for more labor-saving operation;

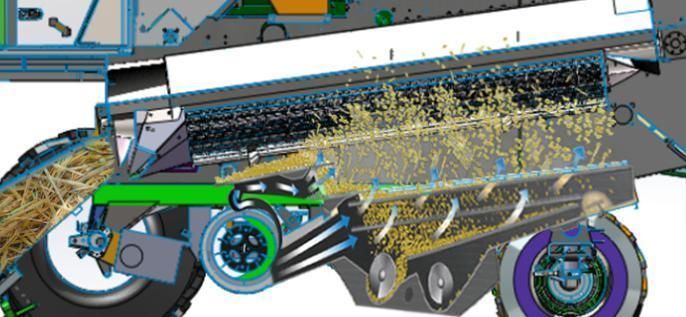

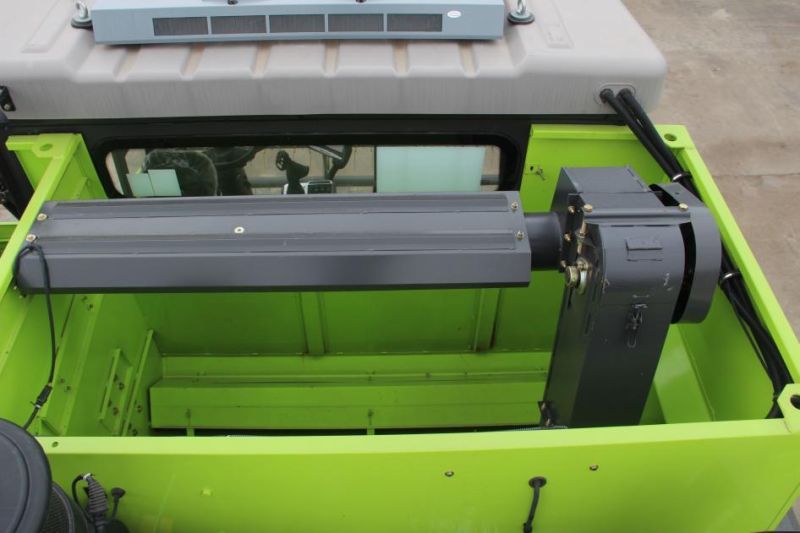

Excellent performance and high operation efficiencySingle longitudinal axial flow threshing unit has stronger threshing ability with more thorough separation;

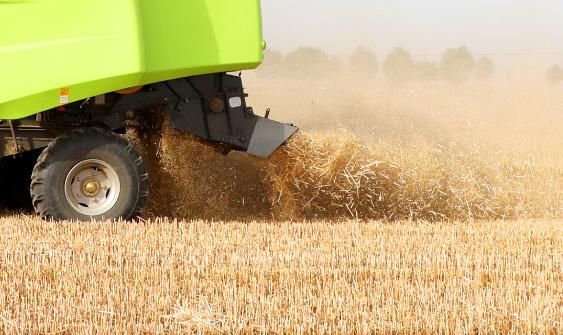

Rear-mounted free-swinging knife slaw cutter for good chopping effect and even scattering;
Upgraded items of the productThe upgraded single longitudinal axial flow drum provides a stronger threshing ability an more thorough separation; manual speed regulation is upgraded to hydraulic speed regulation;The wheat header is increased to 4 m width.
The cleaning chamber is brodened with stronger cleaning ability; the recess plate is changed to detachable type for convenient maintenance;
The grain bin is broaden to 3.2m³ for a longer operation time;

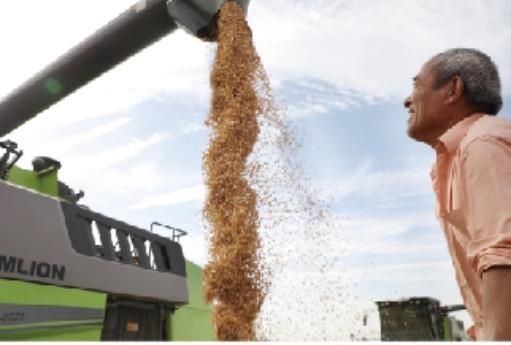

The improved 4.3 m high grain unloader offers a more stable performance.
Technical parameters:| Type | Unit | TE100( 4LZ-10BZH) |
| Overall dimension (length × width × height) | mm | 7600×3300×3420 |
| Minimum ground clearance | mm | 330 |
| Total weight | kg | 6900 |
| Engine emission | / | National Emission Standard III |
| Engine power | kw/hp | 140/190 |
| Fuel consumption rate | kg/hm² | ≤35 |
| Type of gearbox | / | Mechanical speed change + hydraulic stepless speed change |
| Cutting width | mm | 2750/2900/4000 |
| Feed quantity | kg/s | 10 |
| Type of thresher device | / | Single longitudinal axial flow |
| Diameter of drum × length | mm | φ620×3058 |
| Type of separation unit | / | Grid type |
| Cleaning mechanisms type | / | Wind screen type |
Technical parameters:
| Type | Unit | TE100(4YZL-5BZH) |
| Overall dimension (length × width × height) | mm | 7600×3300×3420 |
| Minimum ground clearance | mm | 330 |
| Total weight | kg | 6900 |
| Engine emission | / | National Emission Standard III |
| Engine power | kw/hp | 140/190 |
| Fuel consumption rate | kg/hm² | ≤35 |
| Type of gearbox | / | Mechanical speed change + hydraulic stepless speed change |

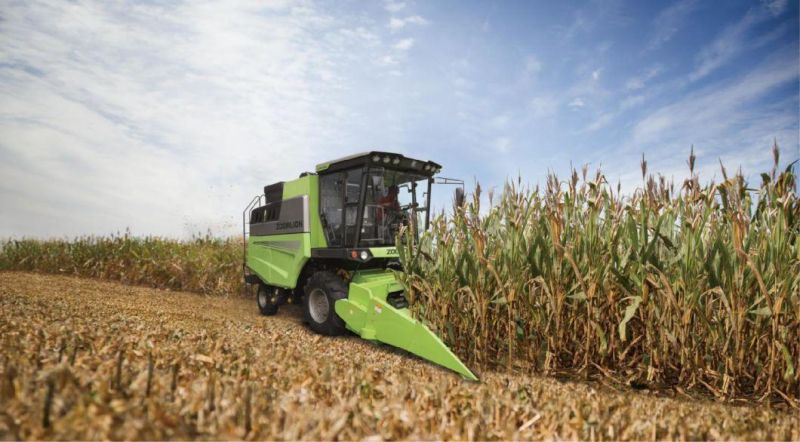

| Header | mm | 5 rows/ 750mm row spacing |
| Feed quantity | kg/s | 10 |
| Type of thresher device | / | Single longitudinal axial flow |
| Diameter of drum × length | mm | φ620×3058 |
| Type of separation unit | / | Grid type |
| Cleaning mechanisms type | / | Wind screen type |
