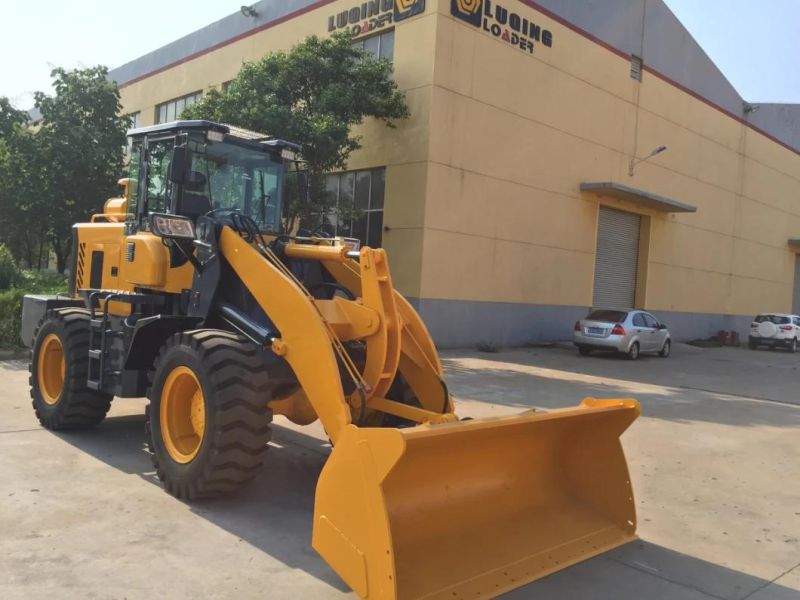

China 2.8t Wheel Loader/ Front End Loader with Standard Bucket

Qingzhou Chuanhong Agricultural Equipment Co., Ltd.
  • After-sales Service：Supply The Light or Small Parts in Warranty
  • Warranty：One Year or 1500 Working Hours
  • Rated Load：2800kg
  • Operating Weight：6000kg
  • Bucket Capacity：1.3-1.5cbm
  • Dimension：6710*2010*2980mm

Base Info

  • Model NO.：LQ928
  • Gearbox：Zl20
  • Engine：Yunnei ,Cummin,Huafeng
  • Cabin：with AC
  • Control Type：Joystick,Mechanical
  • Engine Pattern：Inline,Water Cooled,Dir.Inject,Fourstrokees
  • Axle：Zl20
  • Tire：16,70-20
  • Frame：Heavy Duty
  • Bucket：Standard,Coal Bucket,Mine Bucket,Corn Bucket
  • Color：Yellow, White, or Customized
  • Attachment：as Requirements
  • Transport Package：No Package
  • Specification：6710mm*2010mm*2980mm
  • Trademark：Luqing
  • Origin：Qingzhou City, Shandong Province, China
  • HS Code：84295100
  • Production Capacity：1000 Sets,Year

Description

Specification     LQ928Rated bucket capacity1.3-1.5Rated   load2800kgOperating weight 6000kgPerformance of bucket being set level YesMax. breakout force70KNMax. drawbar pull45KNMax. grade ability38°Total of three time:lifting dumping lowering9.7mMax.dump height3.2m/3.5mMax.dump reach1084mmMin. ground clearance310mmWheel base2470mmTread1380mmOverall dimensions (length*width*height)6710*2010*2980mmEngine YTOModel YTO4108Pattern inline,water cooled,dir.inject,fourstrokeesNumber of cylinders- internal diameter*strokes4-108*120Max.torsion261NmRated power55KWMin.fuel consuming rate216g/kw.hSpecified rotational speed2400r/minTransmission Gearbox seperated from torque converterModel of torque deviceYJ280Pattern 3-element,single stagePattern of gearboxesFULL-powershift,countersaft typeNumber of great shift4forward,4reverseMax.travel speed30km/hMain reducer type arc taper gear moderation of first gradePattern of wheelside moderation planet gear moderation of singleType size16/70-20Front type pressure220KPaRear type pressure180KPaSteering angle(each direction)35°±1Min.turning radius(outside of bucket4500mmValve distributing workingZL20E-04T.QWWorking pumps CBG2063Parking  brakeSoft axle control,outside bunch drum typeFuel capacity 80LPressure of working hydraulic system160kgf/cm 2

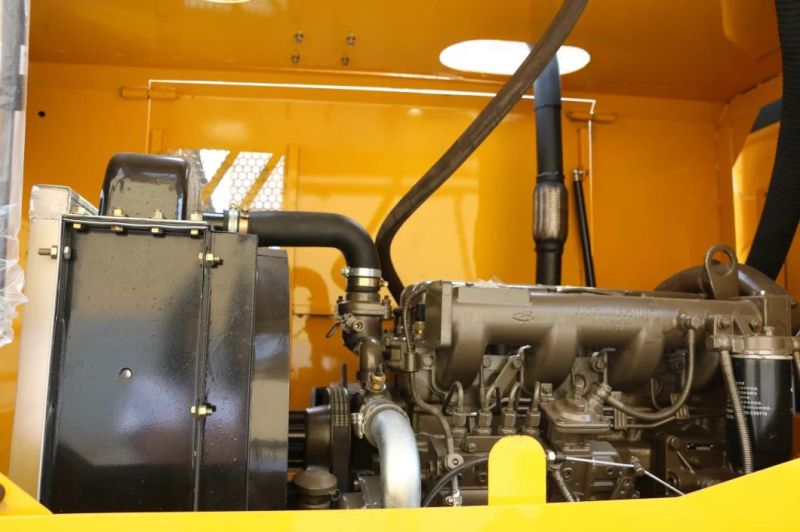

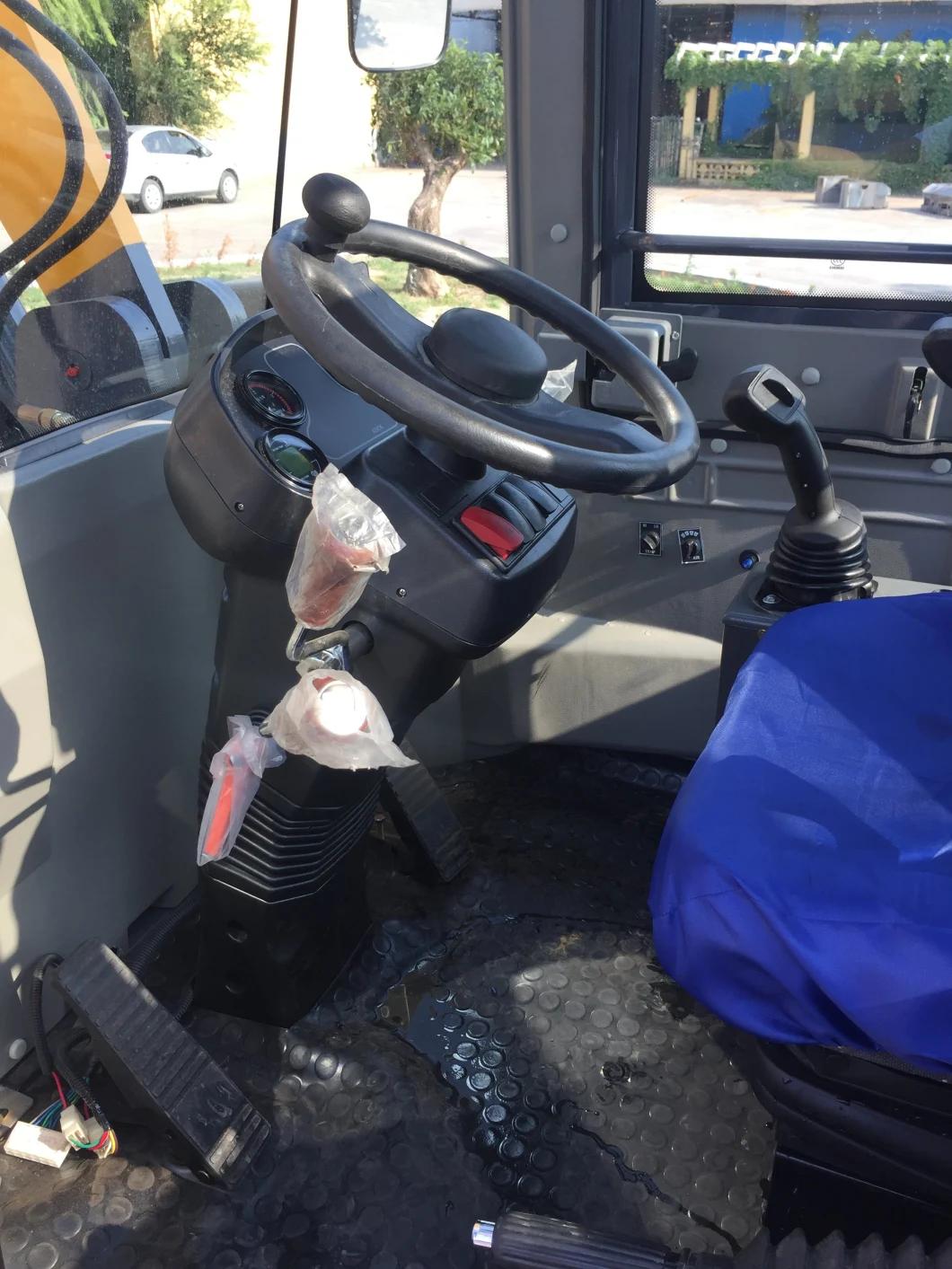

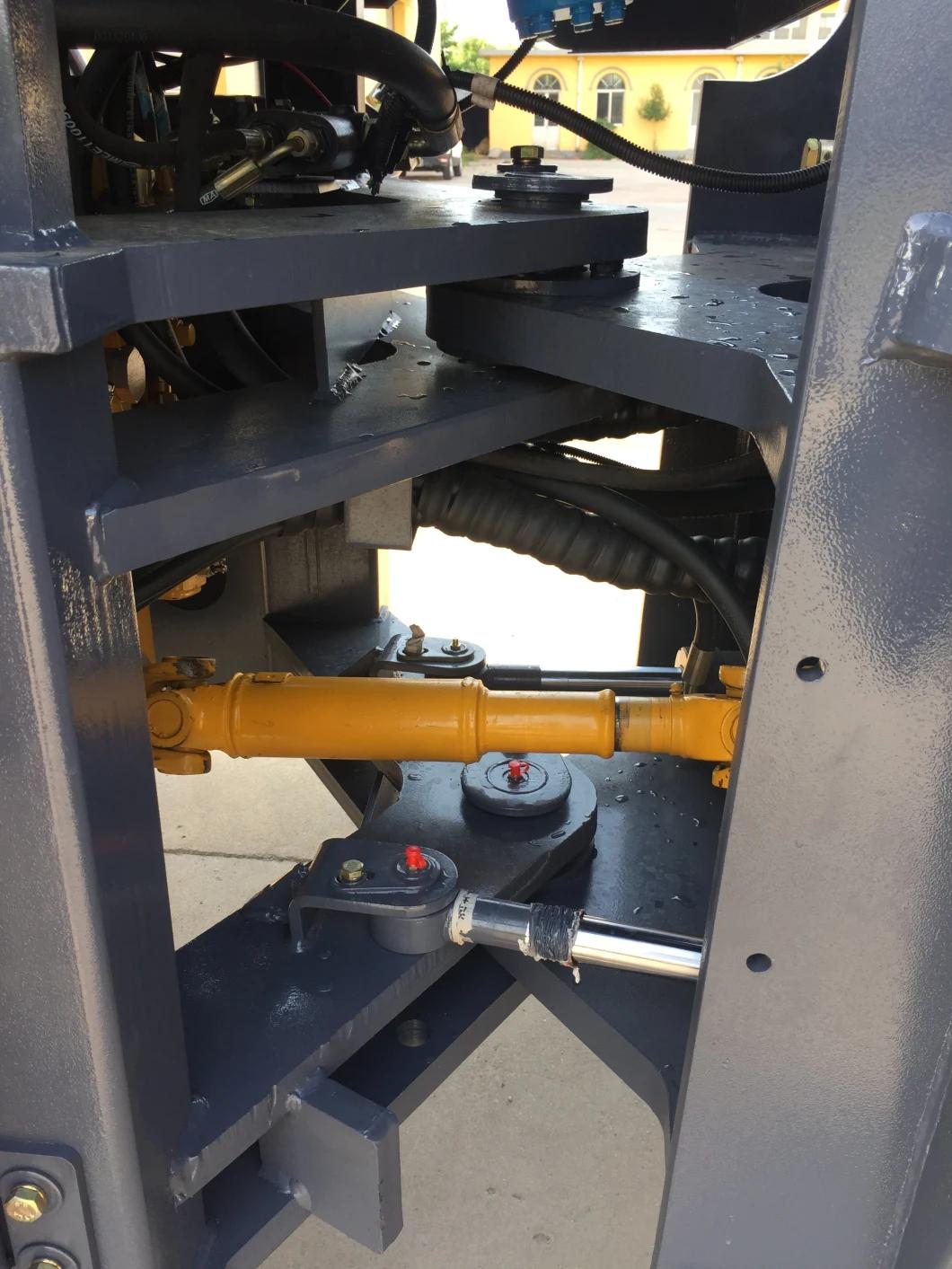

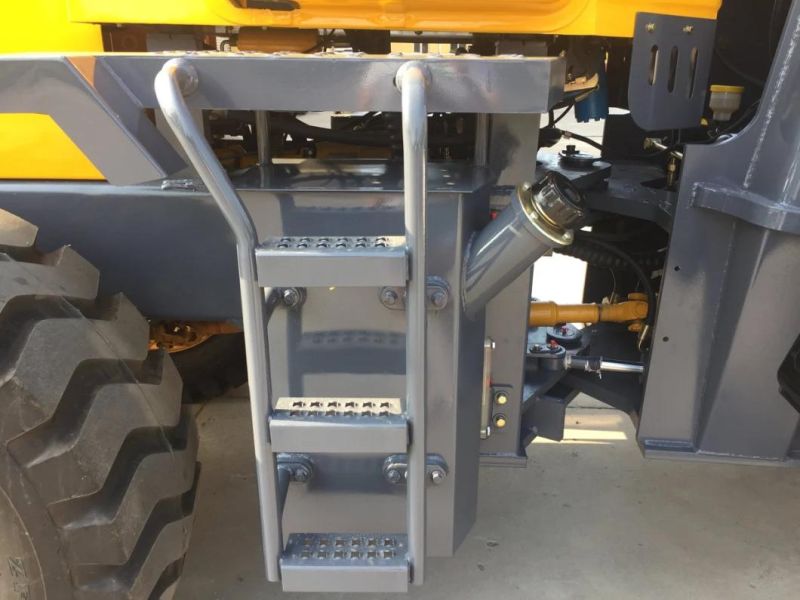

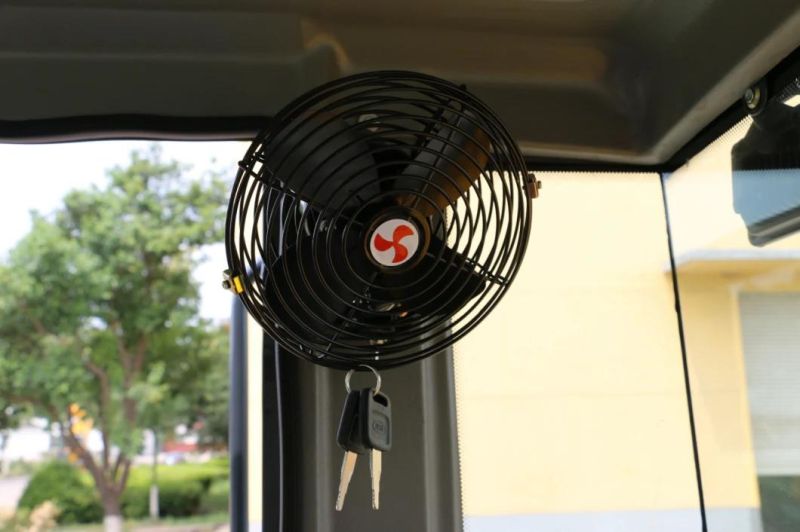

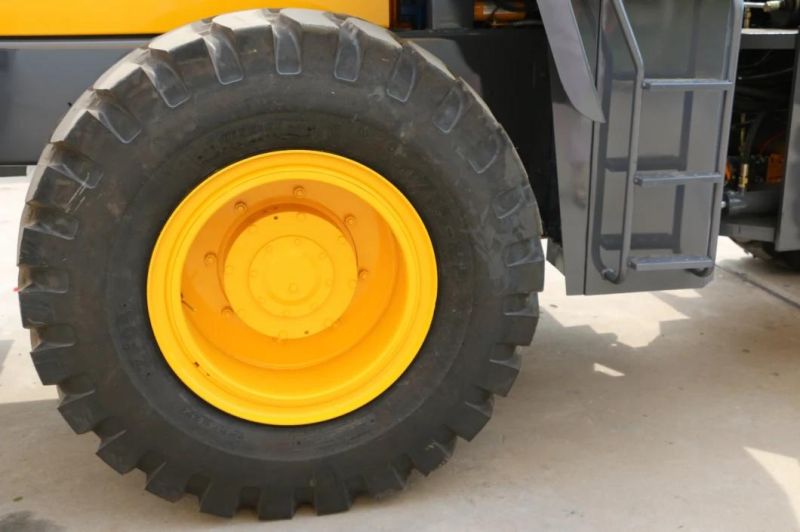

Detailed photos:
 China 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard Bucket China 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard Bucket China 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard Bucket China 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard BucketChina 2.8t Wheel Loader/ Front End Loader with Standard Bucket
