• Model NO.：LYGX
• Number of Flying Knives(PCS)：2
• Feed Opening Size(Mm)：180*500
• Knife Rotor Speed(Rpm)：590
• Feed Speed(M/Min)：37.2
• Capacity(M3/H)：10-18
• Main Motor Power(Kw)：55
• Transport Package：Iron Pallet or Depending on Customers′ Request
• Specification：1000KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8436100000
• Production Capacity：20 Set,Sets Per Month

Basic Info.

Model NO. LYGX Number of Flying Knives(PCS) 2 Feed Opening Size(Mm) 180*500 Knife Rotor Speed(Rpm) 590 Feed Speed(M/Min) 37.2 Capacity(M3/H) 10-18 Main Motor Power(Kw) 55 Transport Package Iron Pallet or Depending on Customers′ Request Specification 1000KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8436100000 Production Capacity 20 Set/Sets Per Month

Product Description

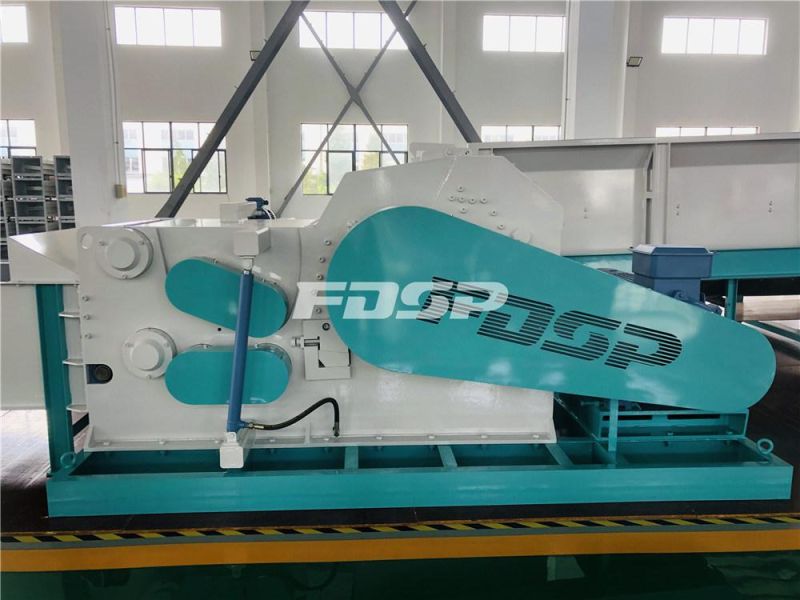

Forestry Equipment Professional Electric Wood Chipper Shredder
Products introduction of wood chipper:

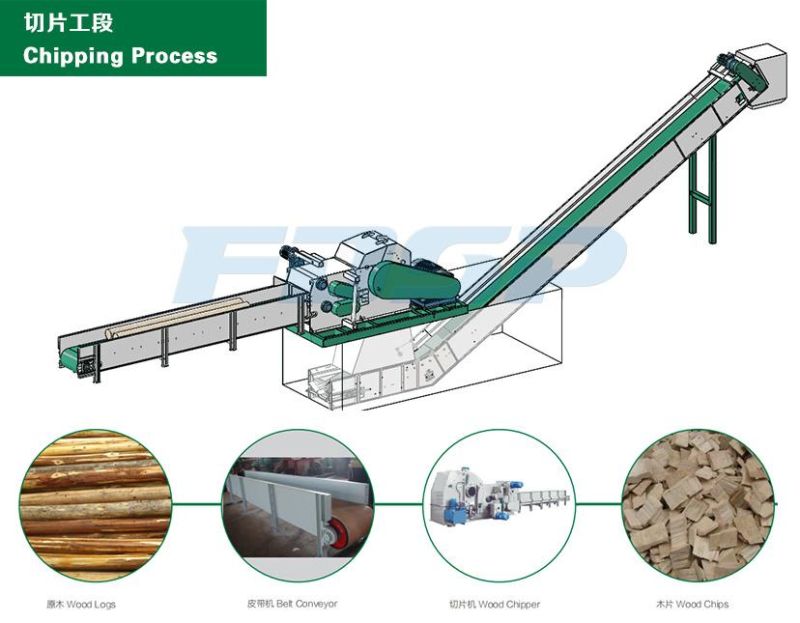

1. The wood chipper is a machine cutting the tree into chips, which is widely used in the paper mill, paper pulp mill or chipboard mill. The whole set of wood chipper equipment usually including 3 parts, the log feeding structure, the wood chipper( tree chipper) and the chips discharging structure.
2. The log feeding structure usually adopted two ways, the conveyor or handwork. For the big log or high capacity model chipper, it usually uses the conveyor feeding the logs into the chipper. For the small model chipper, it usually feeding the logs into chipper by hand work, which could reduce the cost of the conveyor.
3. For the chips discharging structure, it usually adopted the two ways, the chips discharging tube or the discharging conveyor. The discharging tube could blow the chips to about five meters high and spray into the truck directly or the designated place. The discharging conveyor could transport the chips for a longer way to the designated place, such as warehouse.


Main technical parameters:

Data Model	LYGX213/5	LYGX216	LYGX218	LYGX218D	LYGX2110
Rotor Dia(mm)	300	650	800	800	1000
Number of flying knives(pcs)	2	2	2	2	2*2
Feed opening size(mm)	120*300	180*500	225*680	240*780	330*1050
Knife rotor speed(rpm)	730	590	650	650	550
Feed speed(m/min)	38	37.2	37	38	33
Max dia of log	Cutting bark	120	160	160	190
Wood chips length(mm)	26	30	30	30	30
Capacity(m³/h)	8-16	10-18	15-20	38	75
Main motor power(kw)	45	55	110	132	220
Feed roller motor power(kw)	2*1.1	2*3	2*4	2*5.5	2*7.5
Weight(kg)	1200	4070	7000	8000	12500
Overall dimension(L*W*H)	3681*870*900	4348*2056*1258	4670*2150*1500	4670*2250*1515	2850*2790*1497

Delivery packing:
Each machine is well packed by thin films.
Use iron case or iron pallet to fix the machine strongly.


Each goods are ensured to arrive on time based on sales order requirements.
In presales we provide users with comprehensive technical support. We provide comprehensive customer training, including in charge of the procedures, operating procedures, maintenance procedures, equipment, general maintenance, equipment, longterm hazard assessment knowledge and so on. Before the users buy our equipment, they must come to our company to accept a series of training. After the examination for equipment operation personnel, we will issue husbandry machinery operation qualification certificate. We suggest user to set up the remote control system. Our company aftersales service can guide the user through the remote control system for regular maintenance equipment key parts. Our aim is: to do a responsible enterprise, let customers safely use the best feed machinery!


FAQ
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.

2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.

3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.

4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.

5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
