• Model NO.：SZLH420
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Warranty：1 Year
• Voltage：380V 50Hz
• Oil Seal：German, Taiwan
• Motor：Siemens
• Delivery Detail：15-30days
• Processing Types：Grain, Corn, Wheat, Soybean
• Pellet Size：2-18 mm
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：pallet
• Specification：1500KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8436100000
• Production Capacity：50 Set,Sets Per Month

Basic Info.

Model NO. SZLH420 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Warranty 1 Year Voltage 380V 50Hz Oil Seal German, Taiwan Motor Siemens Delivery Detail 15-30days Processing Types Grain, Corn, Wheat, Soybean Pellet Size 2-18 mm After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package pallet Specification 1500KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8436100000 Production Capacity 50 Set/Sets Per Month

Product Description

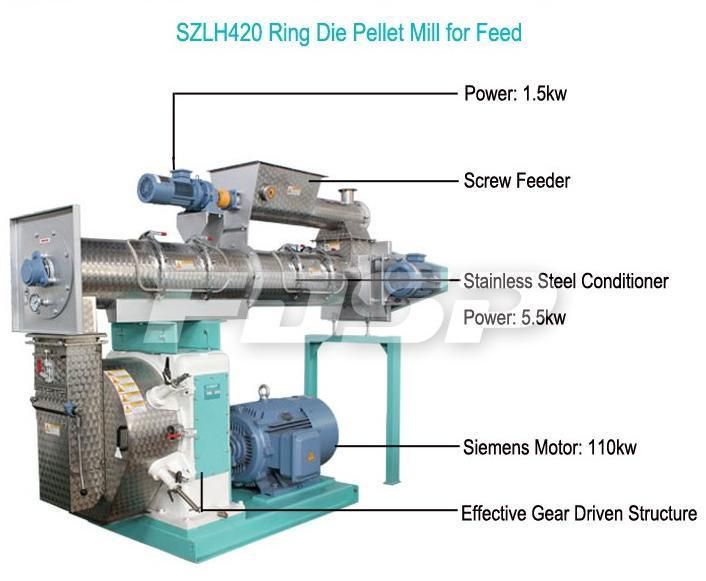

             High Grade Animal Pellet Feed Machine Pellet Feed Making MachineFeatures
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;
3. All stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

Technical parameters

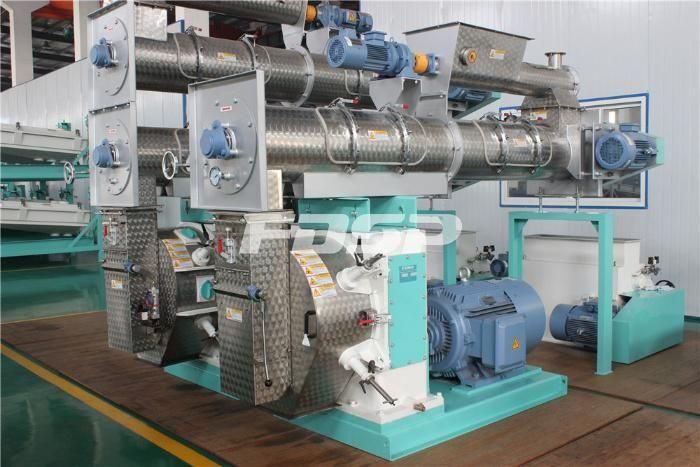

Pictures




Workshop View of FDSP
 FDSP has about 20 years of experience in the comprehensive development and utilizationin agriculture field. It covers an area of 15000 square meters, covering

Total area of 15, 000 square meters with over 200 staffs, located in liyang city, jiangsu province, China, a beautiful and ancient city.



Customer visit
FDSP has exported Feed machinery to 30 countries such as Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc. We welcome customers from all around the world visiting and communication.

Certifications of FDSP
FAQ

1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Liangyou workshop before shipment.
2). The working lifespan of Liangyou machines is at least 20 working years.

2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.

3. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

4. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.

5. Q:What payment terms you take?
Answer: T/T, LC ,D/A,D/P etc.
