• Model NO.：SKJZ1800
• Condition：New
• Applicable Materials Shape：Granular
• Output：0.8-1t,H
• Application：for Making Pellet and Mash Feed
• Cleaning：Crushing-Mixing-Pelletizing-Cooling-Sieving
• Feed：for Livestock, Poultry Fee
• Transport Package：Pallet
• Specification：CE, ISO, SGS
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：84361000
• Production Capacity：1tph

Basic Info.

Model NO. SKJZ1800 Condition New Applicable Materials Shape Granular Output 0.8-1t/H Application for Making Pellet and Mash Feed Cleaning Crushing-Mixing-Pelletizing-Cooling-Sieving Feed for Livestock, Poultry Fee Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 84361000 Production Capacity 1tph

Product Description

      Duck Rabbit Pellet Feed Production Plant for Sale
Jiangsu Liangyou Zhengda Co., Ltd. is professional in manufacturing feed machinery and projects. Our company is able to provide turn-key projects for all kinds of feed production like poultry feed, livestock feed, ruminant feed, ordinary aquatic feed, special aquatic feed, extruded aquatic feed, premix, pet food, etc.

The following introduction and instructions are based on SKJZ1800 feed set.


Definition of 'feed set':
Feed set is short for manual feeding small feed production set, of which the capacity is usually less than 5 tons per hour. It takes modular design to make it easier to load, ship and install. Also, this feed set can save budget and get repaid more quickly. In this modular structure, feed set takes up less area, need lower requirements for workshop, and costs less for basement investment. Also, buyers can customize according to their specific needs. Feed set is particularly suitable for small feed plants or farms.

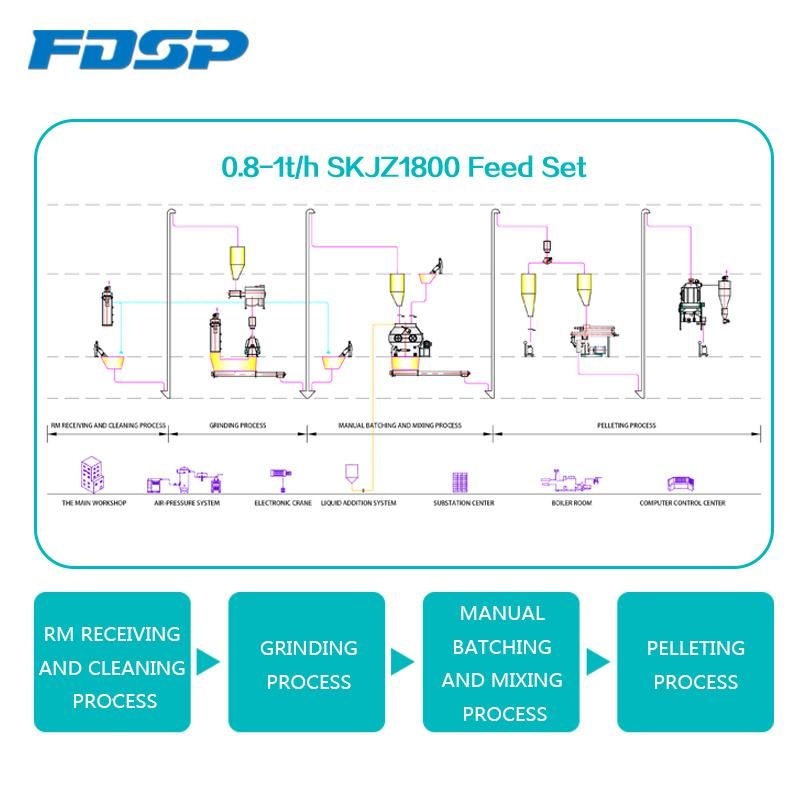

Brief introduction of processing flow:
SKJZ1800 feed set takes manual way of adding raw materials. It's designed capacity is 1.5-2T/H for powder feed and 0.8-1T/H for pellet feed. During the processing, raw materials will be pre-cleaned and pre-weighed by hand. If the materials need grinding, they will be put into the hammer mill directly by lot. During the grinding process, workers feed the hammer mill by hand. After grinding, the grinded materials and other materials will be put together into the production line according to the formula to be mixed. The materials having been mixed can either be sent directly into product bin as powder feed or be sent into pelletizing process to be pelletized and cooled to be pellet feed, which need manual scaling and packing.

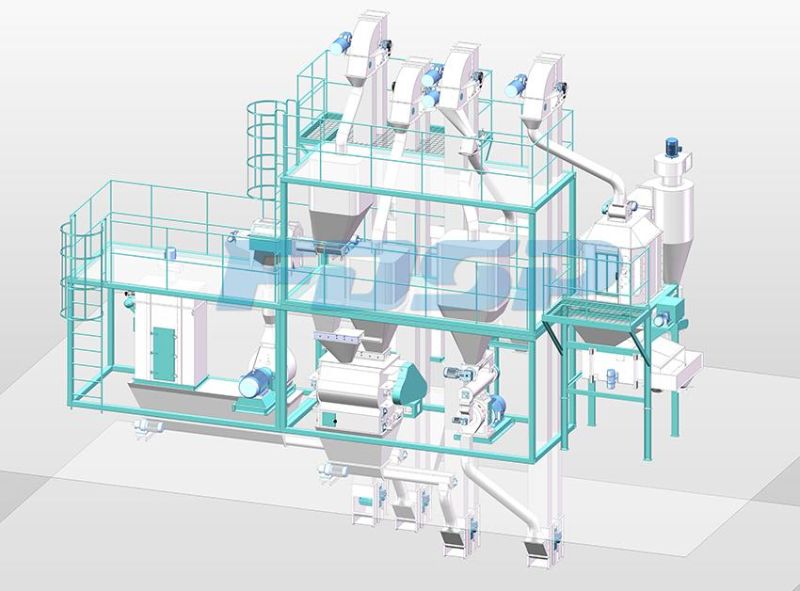

The total power of this feed set is about 75kw, taking an area of 10*5.5*7m, equipped with 0.2T boiler. The whole feed set takes joint frame that is in tight design, reasonable structure and is eco-friendly. Also, the feed set can be specially designed according to buyers needs.
Technical Procedure:




Introduction of technical features and processes

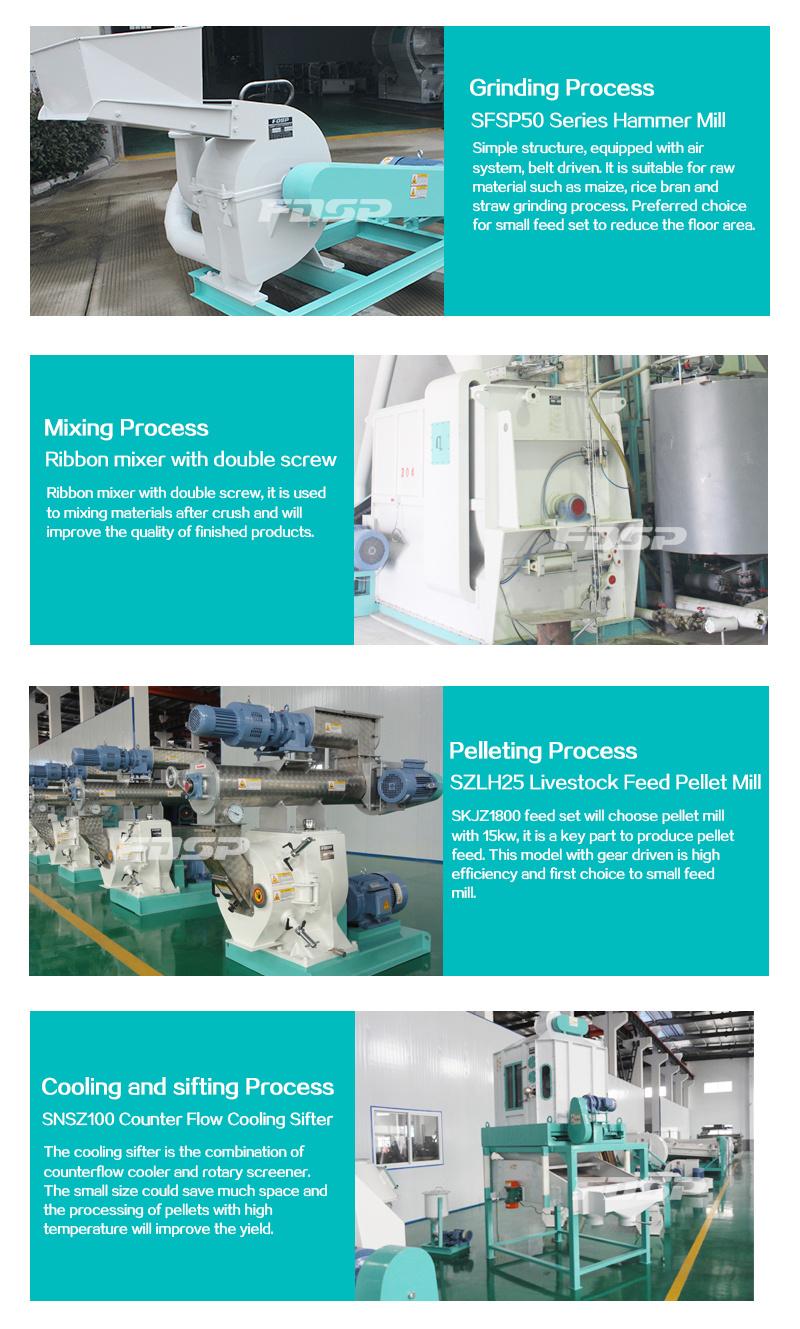

Raw material receiving and grinding process:
Taking integrated hammer mill, manual feeding, centrifugal output by cyclone, this technique is both easy and low-cost, suitable for multiple raw material grinding of small capacity.
Grinding machine: SFSP50, 18.5KW, designed capacity 1.5-2T/H.

Mixing process: Above the mixer, there is a bin for mixing that can make the production continuous. Materials having been mixed can be sent to bin for pelletizing or product bin, which satisfied the production need of both powder feed and pellet feed.
Mixing machine: Double shaft paddle mixer FHSJ0.5, 5.5KW, 250KG/LOT, designed capacity 1.5-2T/H.

Pelletizing process: taking a pellet with a single conditioner, it is suitable for producing ordinary poultry feed and ruminant feed; after being pelletized, the feed will be sent by elevator directly into cooling sieve and be packed manually.
Pelletizing machine: Pellet Mill SZLH25, 15KW, designed capacity 0.8-1T/H(¢3.5 ordinary chicken feed formula)
Cooling machine: Counter flow cooling sieve SNSZ120, designed capacity 1-2T/H.

Auxiliary Process: equipped with liquid adding system, oil can be added in mixer to improve the palatability of feed; equipped with air compressor, which provide compressed air for pneumatic parts of the production line.



According to individual needs of different buyers, the solution can be optimized:
1.    There need to be an air compressor system for valve, discharging gate, etc. Those pneumatic parts can be changed into electric valve and electric discharging gate in order to save the investment of air compressor system.
2.    Give the low capacity; the feed set isn't equipped with raw material cleaning system and take manual pre-cleaning instead. If buyers need, the raw material cleaning system can be added.
3.    In the set, there are product bins for both powder feed and pellet feed. If the powder product isn't expected, the product bin for powder can be cancelled.
