Agricultural Machinery

Wheat Sesame Paddy Seed Air Screen Cleaning Machine

Hebei Ruixue Grain Selecting Machinery Company Limited
  • Name:Wheat Sesame Paddy Seed Air Screen Cleaning machine
  • Model:5X-12
  • Capacity:10 Tons Per Hour
  • Power:6.7kw
  • Voltage:110-680V
  • Layer:5

Base Info

  • Model NO.:5X
  • Color:Designed
  • Warranty:One Year
  • Spare Part:One Year
  • Discount:Yes
  • Transport Package:by Containers
  • Specification:SGS, ISO9001, TUV
  • Trademark:SYNMEC grain bean seed vibrating machine
  • Origin:Hebei, China
  • HS Code:84371090
  • Production Capacity:30 Sets Per Month

Description

Basic Info.

Model NO. 5X Color Designed Warranty One Year Spare Part One Year Discount Yes Transport Package by Containers Specification SGS, ISO9001, TUV Trademark SYNMEC grain bean seed vibrating machine Origin Hebei, China HS Code 84371090 Production Capacity 30 Sets Per Month

Product Description

Wheat Sesame Paddy Seed Air Screen Cleaning Machine

Introduction:

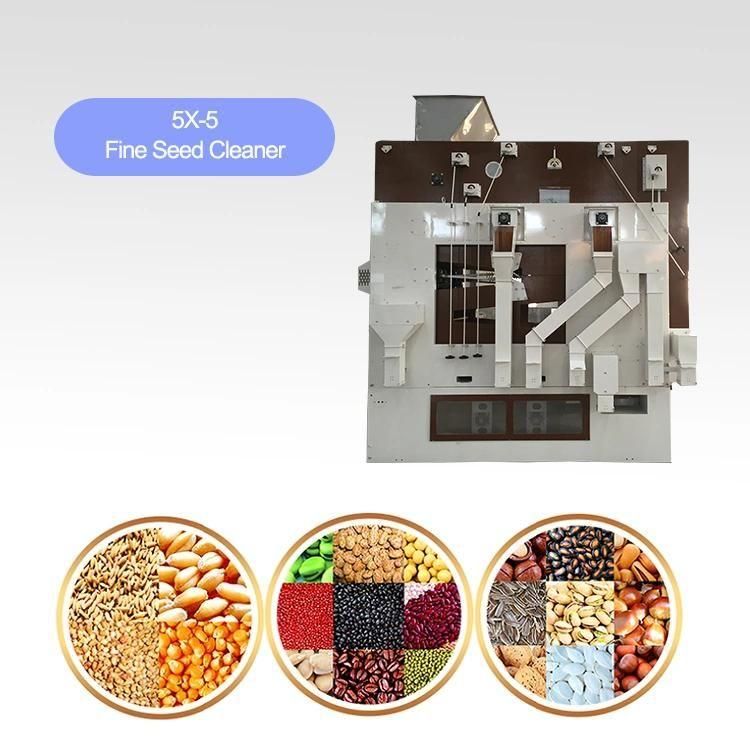

The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.

Characteristics of 5X series seed cleaner
Easy and quick operation and screen changing
The screen boxes are made of wear resistant plywood, which is approved for food
Screen cleaning with special rubber balls
Built-in light.
Durable surface of the machine owing to high-quality powder lacquering

Specification of 5X series seed cleaner
Model5X-55X-12
Dimension(L×W×H)3200×1920×3600 mm3790×1940×4060 mm
Overall weight3250 kg3600 kg
Rated capacity5 t/h12 t/h
Overall air volume8200 m312520 m3
External air blower4-72N0-6A, 7.5 kW4-79N0-6A, 11kw
Vibration sieve motor(gear motor)2.2 kW2.2 kW
Back lifting system motor3.0 kW3.0 kW
Feeding motor1.5 kW1.5kw
Total Power6.7 kW6.7kw
Layers and number4 layers,7 pieces5 layers,15 pieces
