• Flow Rate：50,100,200,500,2000m3,H
• Precision：50,120,200,1500microns
• Mesh：SS316
• Drain Valve：Nylon
• Power：220V,230V
• Frequency：50Hz,60Hz
• Control Way：Pressure Differential,Time,Manual
• Max Flow：4000m3,H
• Transport Package：Wooden Case
• Specification：1~5CUBE
• Trademark：CDFS
• Origin：Changsha, Hunan, China
• HS Code：8421219990
• Production Capacity：200 Sets,Month

Basic Info.

Flow Rate 50/100/200/500/2000m3/H Precision 50/120/200/1500microns Mesh SS316 Drain Valve Nylon Power 220V/230V Frequency 50Hz/60Hz Control Way Pressure Differential/Time/Manual Max Flow 4000m3/H Transport Package Wooden Case Specification 1~5CUBE Trademark CDFS Origin Changsha, Hunan, China HS Code 8421219990 Production Capacity 200 Sets/Month

Product Description

Application

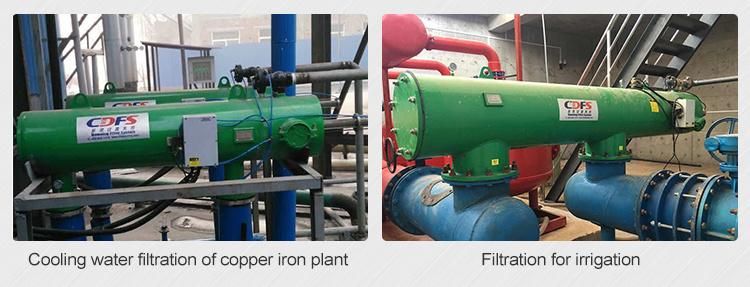

• Commercial - Golf course and sporting field irrigation systems.
• Industrial  - Pre-preteatment of UF/RO and waste water recycling.
• Irrigation - Primary filtration for the prevention of blockages in irrigation system
• HVAC- cooling tower side filtration and full system
• Metal Processing Plants - Filtration for water cooling and spray nozzles.
• Mining - Cleaning of process and waste water.

Product structure

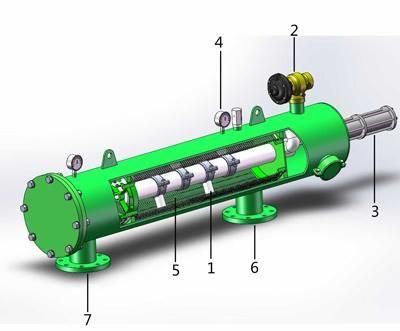

1:Suction nozzle
2.Automatic drain valve
3:Hydraulic piston
4:Pressure difference indicator
5:Screen
6:Water outlet
7:Water inlet

Product principle
The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.
Self-cleaning mode can be started by pressing, timing or manual three ways, following the principle of pressure difference.
When the internal and external pressure difference reaches the set value,  the self-cleaning mode starts.Drain pipe hydraulic valve open, sucking the scanner to produce negative pressure suction nozzle inside, absorbing impurities, at the same time sucking scanner in under hydraulic motor along the inside surface mesh do reciprocating screw, movement, no cleaning blind area, impurities by the discharge outlet.
The cleaning time of self-cleaning filter is set by the controller in advance, the drain valve is closed after cleaning, and little water loss in cleaning process.

Technical parameters
A single maximum flow capacity is up to 4000m3 / h
Wide filtration range:screens from 4000 to 20 microns
Working pressure(min)≥0.18Mpa
Working pressure(max)≤1.6MPa(customized is available)
Working temperature ≤65ºC
Power supply: 220 v / 50 Hz (Customized is availabel)
Cleaning method: suction
Adjustable cleaning time: 10-200 seconds

Filter material
Shell: carbon steel, 304 stainless steel, 316L stainless steel
Screen: 304 stainless steel, 316L stainless steel
Drain valve, cast iron,copper,stainless steel,PVC,nylon
Controller: PVC, aluminum
Seal ring: EPDM rubber
Suction: stainless steel, PVC

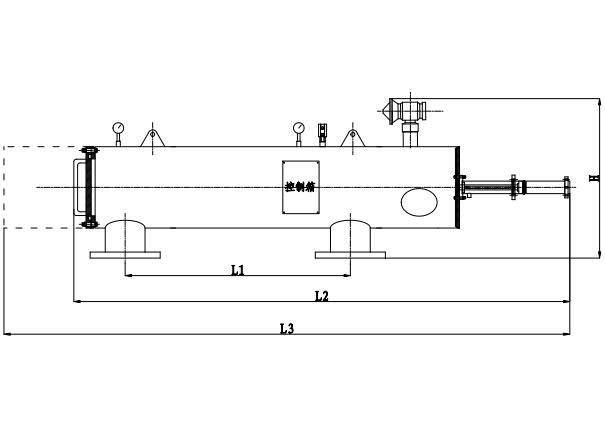

DLAF800 series self-cleaning filter specification table

Model	Water in/outlet (inch)	D1 (mm)	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	H (mm)	Flow (m³/h)
DLAF803LOPR	3	273	450	1141	1575	2075	555	50
DLAF804LOPR	4	273	900	1505	1935	2735	555	100
DLAF806LOPR	6	325	900	1505	1935	2735	625	150
DLAF806XLP	6	273	900	1841	2275	3471	555	160
DLAF808PR	8	325	900	1685	2115	2915	625	250
DLAF808LOPR	8	325	900	2085	2515	3715	625	300
DLAF810PR	10	426	900	1885	2315	3515	726	350
DLAF810LOPR	10	377	900	2085	2515	3715	677	400
DLAF810XLP	10	426	1100	2725	3155	4755	736	450
DLAF812PR	12	426	1100	2725	3155	4755	736	600
DLAF814PR	14	480	1270	2725	3155	4755	810	1000
DLAF816PR	16	480	1270	2725	3155	4755	810	1200
DLAF816XLP	16	630	1270	2725	3155	4755	1010	1500
