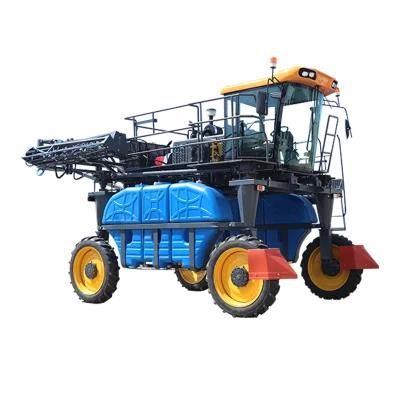

• Model NO.：3WPZ-2400G
• Power Supply：Diesel Engine
• Type：Self Propelled Boom Sprayer
• Boom：18m
• Ground Clearance：1.9m
• Transport Package：Standard Package for Export
• Specification：6300mm x 3100mm x 3700mm
• Trademark：YAODA
• Origin：China
• HS Code：8424490000
• Production Capacity：30 PCS,Month

Basic Info.

Model NO. 3WPZ-2400G Power Supply Diesel Engine Type Self Propelled Boom Sprayer Boom 18m Ground Clearance 1.9m Transport Package Standard Package for Export Specification 6300mm x 3100mm x 3700mm Trademark YAODA Origin China HS Code 8424490000 Production Capacity 30 PCS/Month

Product Description

Model	3WPZ-1200G	3WPZ-2400G
Engine model	4L68 (Changchai,XIchai) turbocharged diesel engine	4L88 (Changchai,XIchai) turbocharged diesel engine
Power / speed	53hp      2400r/min	73hp      2400r/min
Displacement level	China III	China III
Gear	Forward gear 4,reverse gear 1	Forward gear 4,reverse gear 1
Drive mode	Four-wheel drive	Four-wheel drive
Steering mode	Hydraulic steering	Hydraulic steering
Mixing way	Circulating water mixing	Circulating water mixing
Folding way	Hydraulic folding	Hydraulic folding
Boom	16m(customizable)	18m(customizable)
Ground clearance	1.9m(customizable)	1.9m(customizable)
Wheel track	2-2.6m(adjustable)	2.2-2.8m(adjustable)
Walking speed	≤25km/h	≤ 30km/h
Overall dimension	5800mm x 2900mm x 3700mm	6300mm x 3100mm x 3700mm
Weight	3811kg	5033kg
Pump type	Plunger pump	Plunger pump
Pump model	OS-5200	OS-5200
Pump pressure	0-45kgf/cm²	0-45kgf/cm²
Pump flow	200-240L/min	200-240L/min
Pump speed	600-800r/min	600-800r/min
Tank capacity	1520L	2080L
Spray height	0.5-3.0m	0.5-3.0m
Nozzle model	No.3	No.3
Spray angle	110 °	110 °
Nozzle flow	1.2L/min	1.2L/min
System work pressure	0.3-0.5Mpa	0.3-0.5Mpa
3 filtration system	Tank inlet, pump inlet, nozzle	Tank inlet, pump inlet, nozzle
Battery	12V/120AH	12V/120AH
Front tire model	Tractor tires 9.5-24	Tractor tires 9.5-32
Rear tire model	Tractor tires 9.5-24	Tractor tires 9.5-32
Water tank	15L	15L
