Tractor Implements Big Round Straw Baler with High Quality
Weifang Guoan Engineering Machinery Co., Ltd.- After-sales Service：12 Months Warranty
- Type：Round Baler
- Automatic Grade：Automatic
- Power Source：Tractor
- Warranty：1 Year
- Certification：ISO, CE
Base Info
- Model NO.：GAR2200
- Model：Gar2200
- Bale Size：1250X1300mm
- Bale Weight：250kg
- Overall Size：4500X2660X2350mm
- Machine Weight：4050kg
- Color：Red,Green or as Your Request
- Capacity：12t,H
- Match Power：>100HP
- Number of Rollers：18
- Pickup Width：2300mm
- Transport Package：Iron Package with Film Covering
- Specification：4500x2660x2350mm
- Trademark：Guoan
- Origin：China
- HS Code：843340
- Production Capacity：500 Untis,Month
Description
The high suction electromagnetic clutch provides strong power for the entangled web. The high-precision sensor precisely locates the length of the tangled web, and reasonably controls the cost.The fully automatic thin oil lubrication device ensures the smooth operation of the chain drive system of the whole machine and prolongs the service life.The dry oil lubrication system adopts the centralized oil supply method, which can add grease to 36 roller bearings in a short time.
The hydraulically adjustable bottom bin has a certain floating capacity and automatically adapts to the flow of crops passing through.And in the case of large flow of crops or blockage of foreign objects, the alarm will be timely and cleaned up.

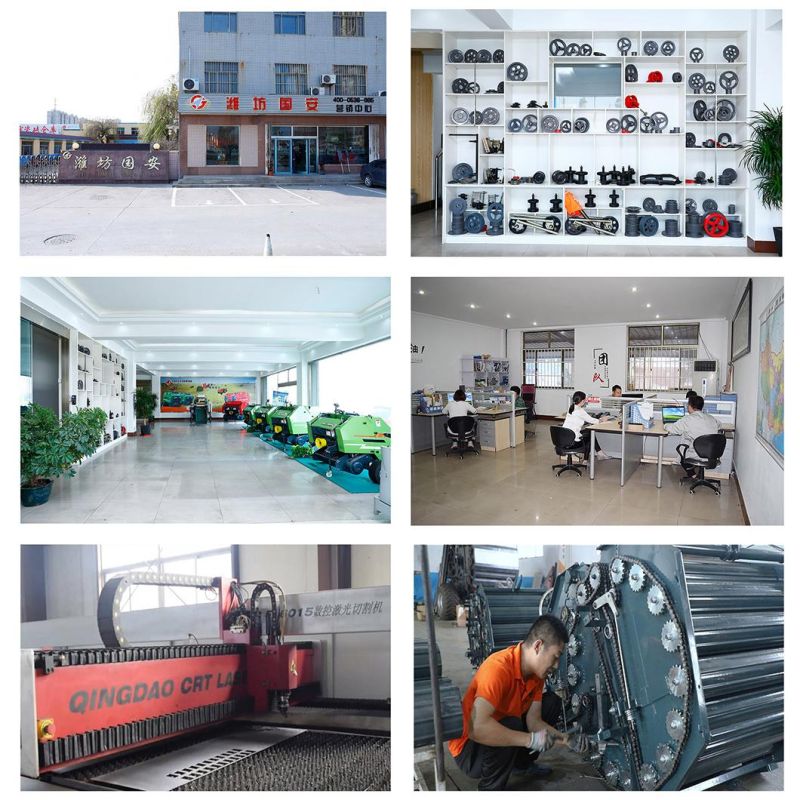

Company profile.
About us.
Weifang Guoan Engineering Machinery Co.,Ltd was founded in 2006, is a comprehensive technology company intergrating research, production, sales and service. We have 14 years' experience of machanical development and production. We have more than 200 employees, 30R&D persons, a number of patented technologies.
Our products.
We have been focusing on Drum mower for more than 5 years. The DM135 and DM165 series Drum mowers that we have researched and produced independently are the three-point suspension hay mowers that can be matched with 30-80hp tractors to go for the walking works in the field, which is mainly used for mower grass.

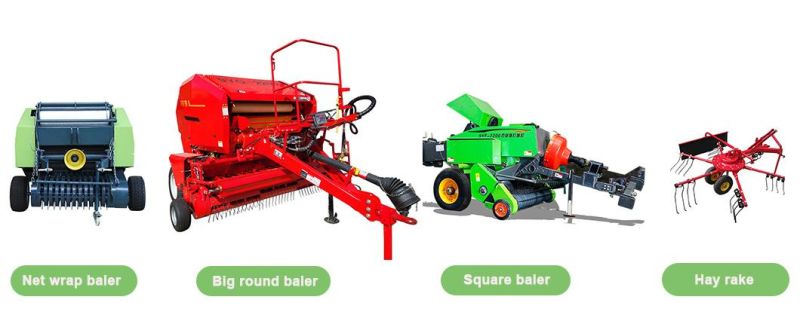

Besides, we also have Net wrap balers, Rope balers, Square baler, Big round baler, Hay rake, Bale wrapper machines, can meet your different requirements.
Our partnership.
We have already exported to Russia, Vietnam, Germany, Spain, South africa, Serbia, Brazil, Columbia, Czech and many other countries.
Benefits of our company.
1. Our company have 20 years experiences of parts production, supplied accessories to Foton Lovol so far.
2. 95% parts of balers are produced by our own factory, guarantee the quality of each accessory from the source.
3. Our company participates in various domestic and foreign exhibitions every year, and visits customers locally to obtain the usage of customers' local machines, so as to better improve the machines.
4. The original forced feeding technology, and continuous research and development of new models. Now have Square balers, Big round balers, Rope twine balers, Net wrap balers etc.
Exhibitions.
More products.
Package and shipping. 1. The package is usually iron package with film covering. We also can meet your requirements if you have any special needs. 2. All the machines have 1 year warranty. If any parts except the wearing parts are damaged within one year, we will compensate you for the parts free of charge.3. Professional engineers and sales will provide you with online services 24 hours a day. Please feel free to contact us if anything we can help.
Our services. Pre-sales:
1. First of all, we will recommed suitable machine and model as customers' requirements.
2. After customers places order, we will supply pictures of each manufacturing parts for customers checking on time.
3. Prepare packing and shipment according to customers' needing in advance.
4. Testing machines and taking testing video for customers' checking.
After-sales:
1. We will guarantee the machines quality for 1 year.
2. Provide 24-hour online training and Q&A.
