Good Performance Sunflower Combined Oil Mill Machine Yzlxq140

Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.
  • After-sales Service：Online Video
  • Warranty：1year
  • Structure：Horizontal
  • Press Series：Third
  • Voltage：380V
  • Type：Spiral Oil Press

Base Info

  • Model NO.：YZLXQ140
  • Application：Beans, Cooking Oil Machine
  • Appearance：Horizontal
  • Press Materials：Sunflower Seeds,Peanut, Soybean
  • Condition：New
  • Customized：Customized
  • Processing Capacity：10ton Per 24 Hours
  • Size：2120*1610*2000mm
  • Driving Force：Electricity or Diesel Engine
  • Press Method：Hot or Cold Press
  • Oil Press Power：18.5 or 22kw
  • Oil Content of Dry Cake：< 7.8%
  • Weight：1360kg
  • Spiral Axes Rotate Speed：32-46r,Min
  • Advantage：Press Ability Is Stronger, Oil Yield Is Higher
  • Transport Package：Wood Box
  • Specification：SGS, ISO, BV, CQC
  • Trademark：Guangxin
  • Origin：Sichuan, China
  • HS Code：8479200000
  • Production Capacity：400PCS Per Month

Description

1360

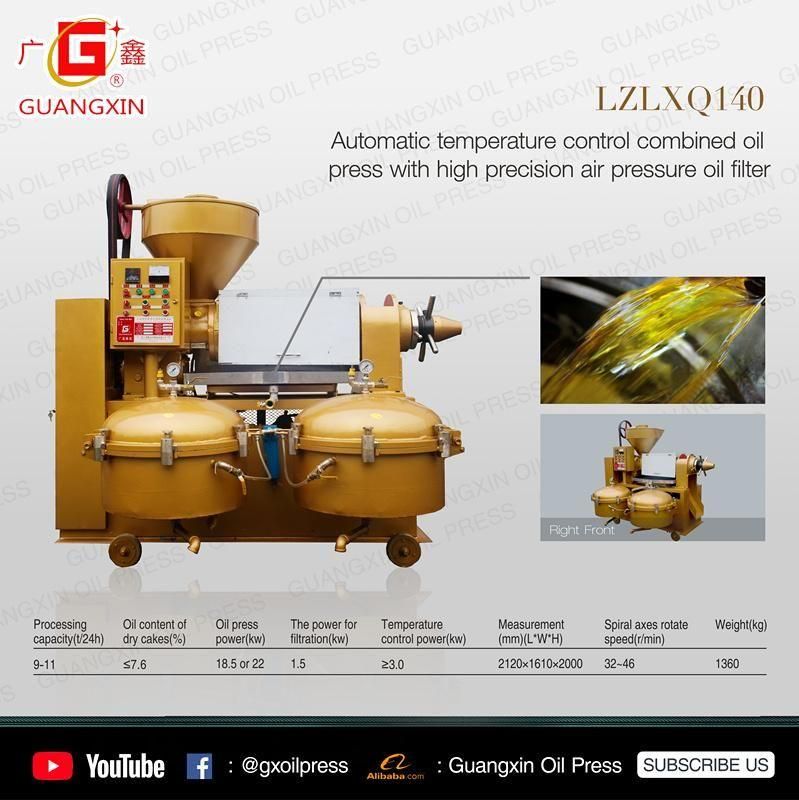

Good Performance Sunflower Combined Oil Mill Machine Yzlxq140
Applicable oil producing business

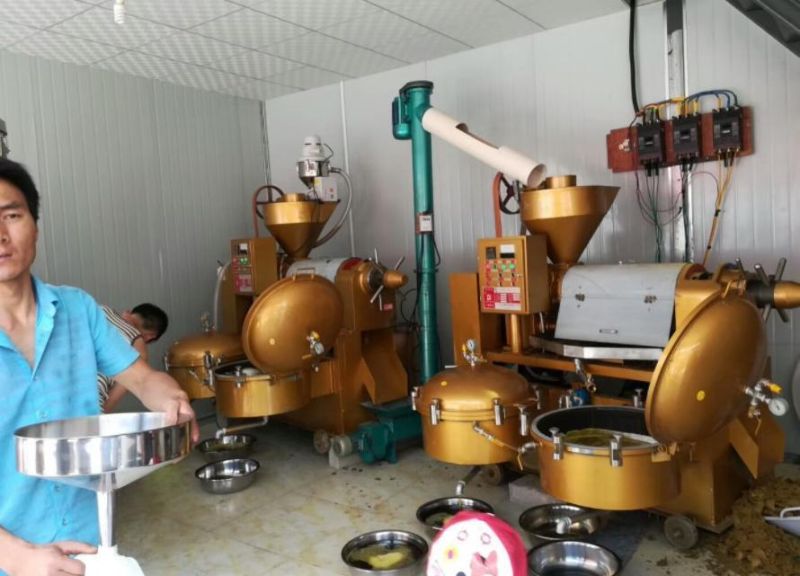

1. Small or medium oil refinery use it on oil production line. 2. Personal users use it in farmer's market, either to make oil to sell or for clients with supplied material and earn the processing fee. Client could see how the oil being extracted from the machine, so trust the oil quality. This type of business is very popular in developping and undevelopping countries.
Good Performance Sunflower Combined Oil Mill Machine Yzlxq140
Guangxin Single Oil Press Machine
ModelProcessing Capacity (t/24h)Motor Power (kw)Weight (kg)Measurement(mm)(L*W*H)Oil Content of Dry cakes (%)Spiral Axes Rotate Speed (r/min)
YZYX701.341951180*405*1120≤7.833-42
YZYX9035.52851250*550*1140≤7.832-42
YZYX10(95)3.5-47.5 or 115281650*730*1340≤7.832-40
YZYX10-6/8/94.5115901760*730*1340≤7.832-40
YZYX10J-24.5116001770*730*1340≤6.032-40
YZYX1206.511 or 156801860*740*1275≤7.028-40
YZYX130815 or 18.58252020*742*1420≤7.632-40
YZYX1409-1118.5 or 228062010*750*1430≤7.632-40
YZYX120J711 or 157182110*780*1350≤6.035-40
YZYX130GX8-1018.59982100*820*1400≤7.830-40
YZYX140GX9-1118.5 or 2210002150*820*1420≤7.830-40
YZYX140CJ9-11229802220*750*1420≤7.832-40
YZYX140CJGX9-112211002300*820*1420≤7.830-40
YZYX1682037 or 4518202750*1100*1830≤7.436-44


Our series YZLXQ140 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.



Good Performance Sunflower Combined Oil Mill Machine Yzlxq140

The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.

Good Performance Sunflower Combined Oil Mill Machine Yzlxq140

Main Features:

Compared with other manufacturers, our product shared with the below main advantages:

1. High efficiency!! Residual oil of the cake is less than 7.8%

2. Low cost!! Our machine have more favorable price compared with our competitors

3. Easy operation!! Our machines are easy to be operated, we also provide thoroughly operation manual in English and Chinese for your reference.

4. Long durability!! Squeezing loop and squeezing spiral are conducted heat treatment  as carburizing and quenching.The lifetime of our machines reach over 10 years, plus, we produce almost all the parts of the machines in our own plant, so the wearing parts and spare parts are available all year round, which solve your after-service concerns.


Good Performance Sunflower Combined Oil Mill Machine Yzlxq140  Good Performance Sunflower Combined Oil Mill Machine Yzlxq140

FAQ

1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.

2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.

3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.

4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
