• Model NO.：AM-F02
• Nozzles：with Fine Nozzles
• Usage：Agricultural Products Processing
• Power Source：Gasoline
• Transport Package：1PCS,CTN
• Specification：iso9001
• Trademark：agros
• Origin：China
• HS Code：84248100
• Production Capacity：10000

Basic Info.

Model NO. AM-F02 Nozzles with Fine Nozzles Usage Agricultural Products Processing Power Source Gasoline Transport Package 1PCS/CTN Specification iso9001 Trademark agros Origin China HS Code 84248100 Production Capacity 10000

Product Description

Product Name: Auto ignition with fine nozzles

Simple operation, strong power, Gently press the power button to start the machine. Droplet uniform and meticulous, can spray fog and spray water mist!
Enhanced engine, high efficiency and fuel saving, strong power, large spraying quantity, longer range, the spraying effect is better.
Manual start/Electric start, two start mode, easy start, excellent performance.
Precision control oil supply system, a more stable performance.

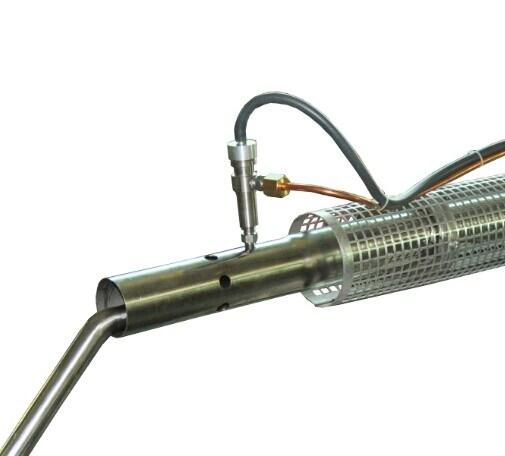

The efficient smoke pipe ( standard parts ), smoke amount big, strong penetrating power, diffuse effect is good, efficient drug.
The atomizing pipe (optional parts ), spraying water mist can produce more delicate and fine droplet.
The first easily detachable structure of patent technology, more convenient maintenance repair.
Quality stainless steel 6.0 liter solution tank and fuel tank, durable.
Use of lightweight metal heat protective net, good radiation effect, simple and generous.
Optional large solution tank, realize long time large area disinfection, sterilization operation
Technical parameters:
Size: 1345*280*330 (mm)
Packing size: 1200*320*350 (mm)
Fuel consumption: 1.6-2.0 litre /h
The spraying dosage: 8-80 litre /h
Maximum power: ≥ 19KW
Start mode: Electric start
Safety net: Full protection
The fog particle diameter: The fog particle diameter less than 30 microns
Solution tank capacity: 6.0 litre
Solution tank pressure: 0.3-0.4bar
Fuel tank capacity: 1.8 litre
Fuel tank pressure: 0.12 - 0.15bar
Start power supply: 3V 2*1.5V 1# dry cell batteries
The use of fuel: 93# above pure gasoline
Application carrier: 0 # diesel or white oil
Application of pharmacy: Oily, water-based agent or wettable powder
Net weight: : 8.5Kg
Gross weight: 13.5 Kg
