• Model NO.：GXJ-2
• Power Source：Tractor Hydraulic
• Certification：ISO9001
• Matching Tractor：>80HP
• Trimming Diameter：<100mm
• Number of Saws：7
• Saw Diameter：400mm
• Transport Package：Steel Framework
• Specification：GXJ-2
• Trademark：samtra
• Origin：Shandong
• HS Code：843680090
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. GXJ-2 Power Source Tractor Hydraulic Certification ISO9001 Matching Tractor >80HP Trimming Diameter <100mm Number of Saws 7 Saw Diameter 400mm Transport Package Steel Framework Specification GXJ-2 Trademark samtra Origin Shandong HS Code 843680090 Production Capacity 1000 Sets Per Month

Product Description

TREE CUTTER
A rotary tree cutter attachment for a tractor includes a cutting assembly having a circular blade with a serrated outer edge, and a motor for rotatably driving the blade. A frame assembly for the tree cutter includes a first portion attached to the tractor frame, and a second portion extending perpendicular to the first portion and providing an offset mounting location outside a wheel path of the tractor. A pivot arm is pivotally connected to the offset mounting location for rotation about an axis transverse to the tractor's direction of travel. The pivot arm supports the cutting assembly and is movable about the transverse axis between a lowered position in which the cutting edge of the circular blade is generally horizontal and at ground level for cutting, and a raised position in which the cutting edge of the circular blade is elevated above ground level for traveling.ADVANTAGE:
Horizontal tree cutterVertical tree cutterSolenoid valve controltractor mountedeasy operation
SPECIFICATION

Matched Tractor	hp	≥80
Trimming Diameter	mm	≤100
Horizontal Trimming Height (H1&H2)	mm	600~4100
Vertical Trimming Height (V1&V2)	mm	280~6000
Trimming Width (W)	mm	2300
Saw Diameter	mm	400
Number of Saws	pcs	7
Control Type		Solenoid Valve Control
Working Speed	km/h	1~2
Weight	kgs	460
PTO Drive Hydraulic System		Standard (540 rpm)

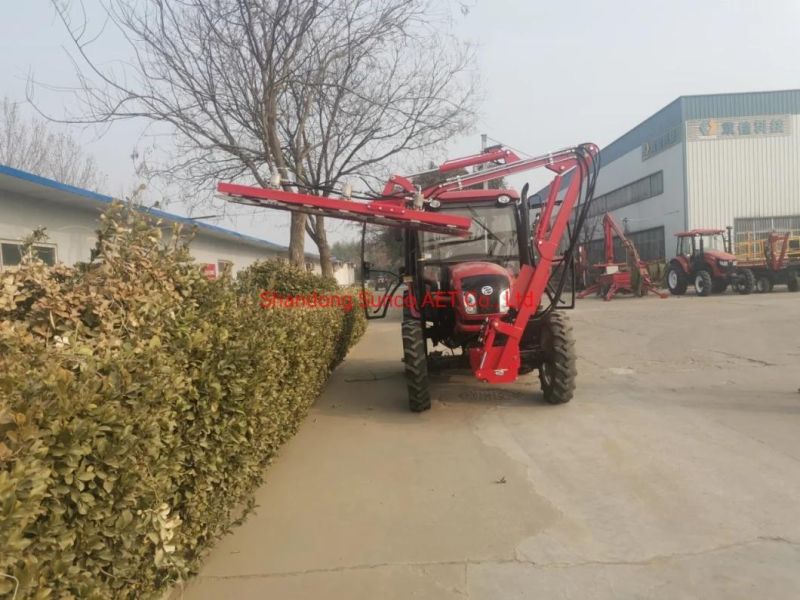

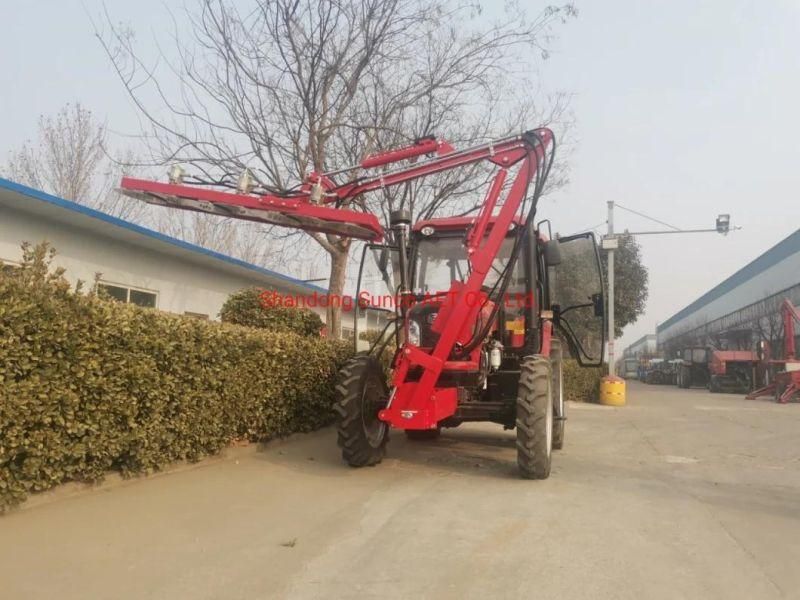

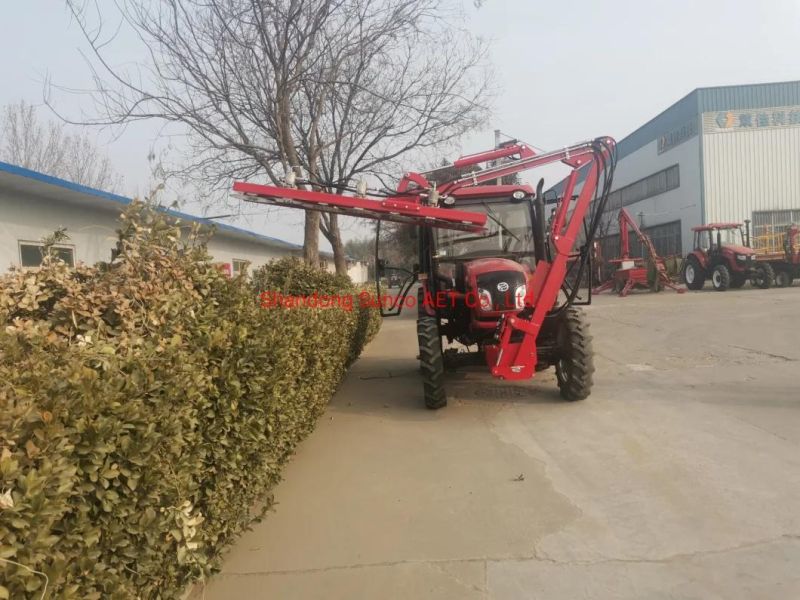

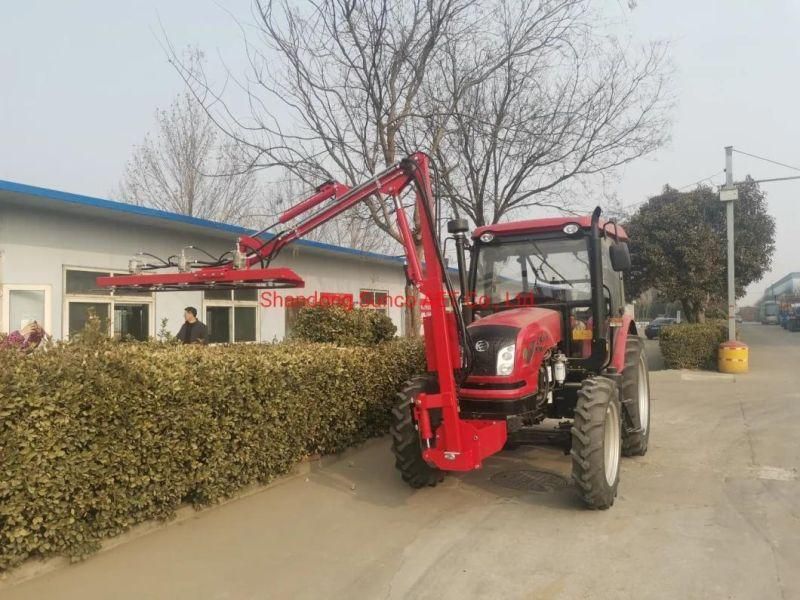

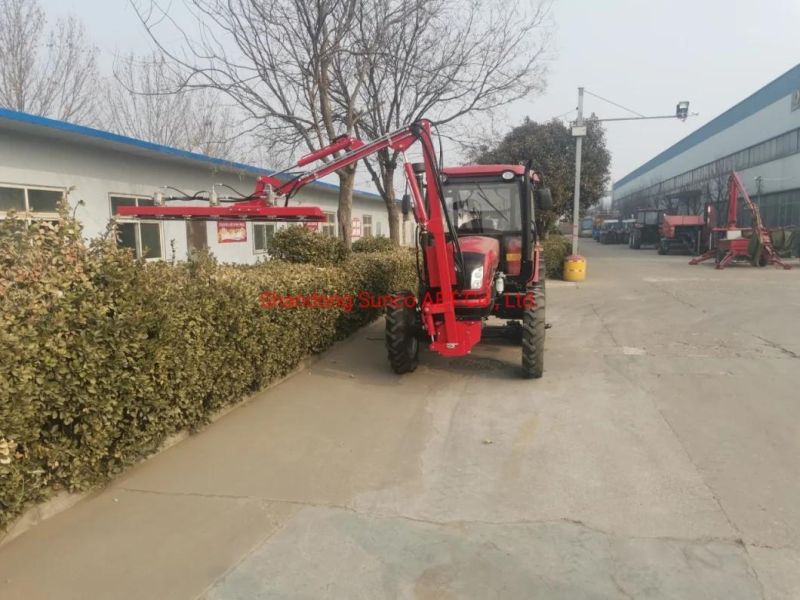

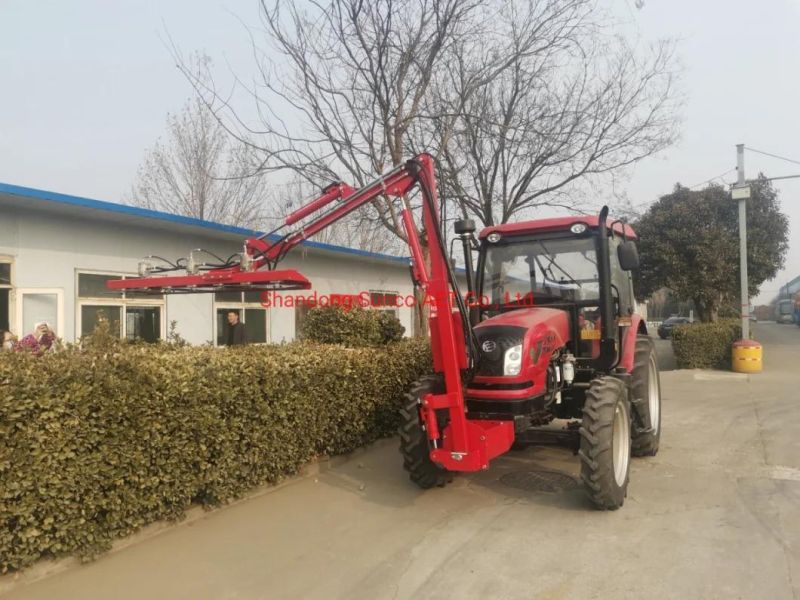

PICTURES
