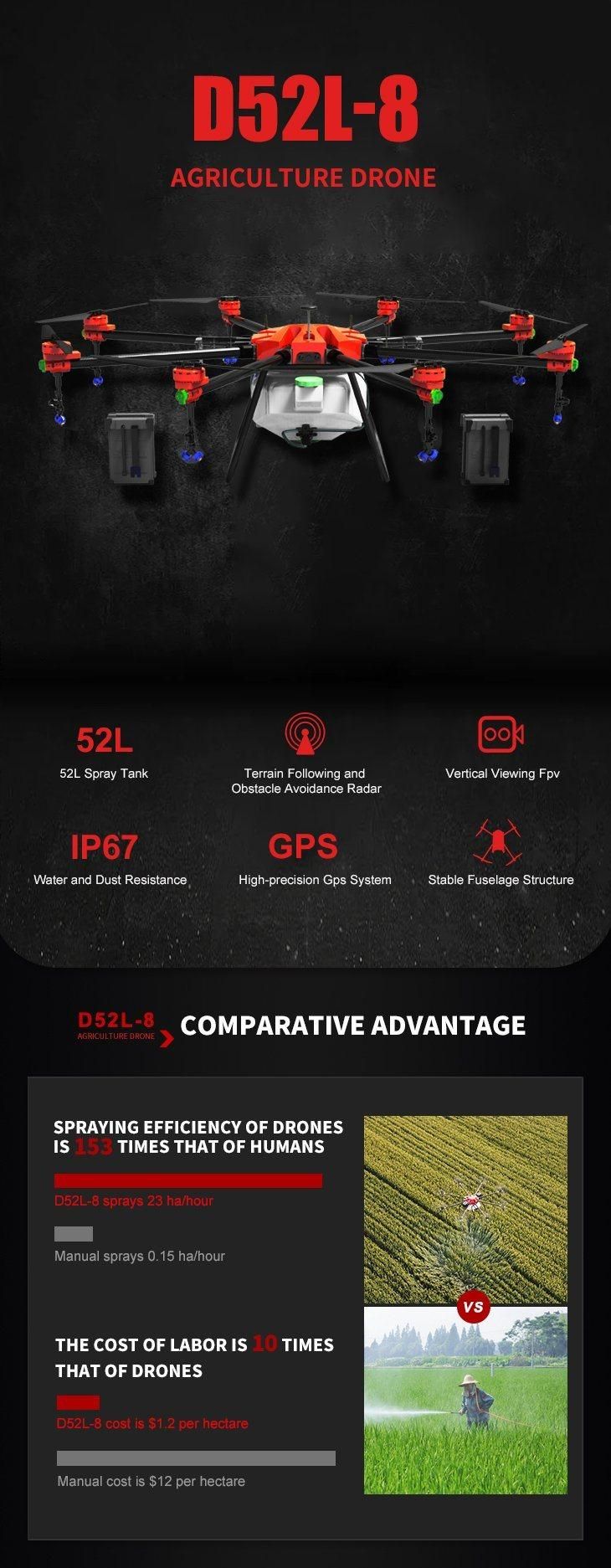

50L Professional Sprayer Drone Pesticde and Herbicide Uav Agricultural Drones
Qingdao Zhongfei Intelligent Technology Co., Ltd.- After-sales Service：24h Aftersale Service
- Warranty：1 Year
- Installation：No Installation
- Liquid Contained：Medicine
- Spraying Shape：Full Cone
- Volume：52L
Base Info
- Model NO.：D52L-8
- Power Supply：Electric
- Technics：Assembly
- Material：Aviation Carbon Fiber and Aviation Aluminum
- Type：Sprayer Drone
- Sprayer Type：Pump
- Usage：Agriculture
- Applicable Industry：Farms,Home Use,Epidemic Prevention
- Feature：Anti-Fall
- Production Material：Aviation Carbon Fiber and Aviation Aluminum
- Production Folding Size：2760mm*2760mm*850mm
- Max Pesticide Load：60kg
- Aircraft Medicine Box Capacity：52L
- Flight Radius：Less Than 3000m
- Max Takeoff Weight：107kg
- Aircraft Weight：30kg
- Flight Attitude：Less Than 30m
- Flight Duration：13-30minutes
- Condition：New
- Warranty Time：12 Months
- Transport Package：Professional Package Box
- Specification：1 CBM
- Trademark：BROUAV
- Origin：China
- HS Code：8802200090
- Production Capacity：1000 Unit
Description
| Model | D52L-8 |
| Product Material | Aviation carbon fiber & aviation aluminum |
| Airframe Dimensions(Incl. propellers) | 3550mm*3550mm*850mm |
| Airframe Dimensions(folded) | 1050mm*900mm*1880mm |
| Transport Dimensions | 1980*1130*1000mm |
| Max Takeoff Weight | 109KG |
| Aircraft Weight | 39KG |
| Maximum Capacity(spraying system) | 52L |
| Flight Altitude | ≤20m |
| Flight Time (Unloaded) | 15~25 minutes |
| Flight Time (Full Loaded) | 5~13 minutes |
| Flight Speed | ≤15m/s |
| Spray Width | 6-15m |
| Spray Flow | 3-20L/min (10L double water pump) |
| Nozzle Type | Imported high pressure anti-floating atomizing nozzle |
| Droplet Size | 60~90μm |

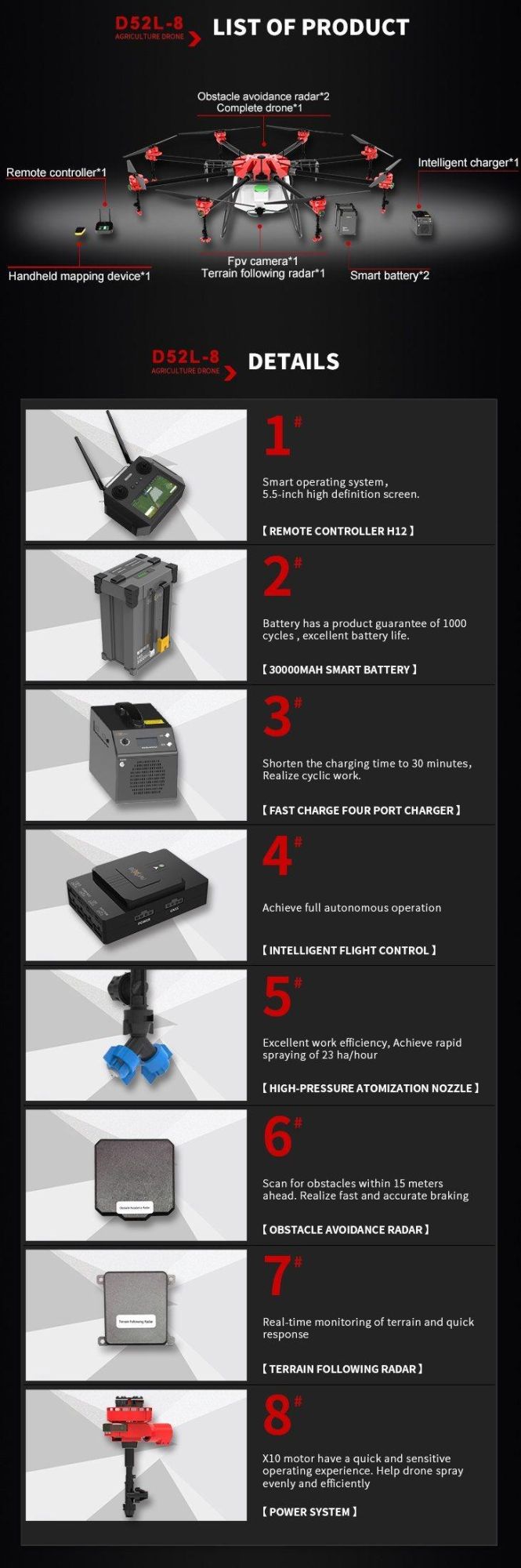

| Flight Controller | Professional industrial version flight controller |
| Navigation Method | GPS/GNSS RTK |
| Operating Efficiency | ≥21 (ha/hr) |
| Safe Takeoff and Landing Wind Speed | ≤8 m/s |
| Motor speed | 5000rpm |
| Battery Voltage | 58.8V |
| Battery Capacity | 30000mAh*2( 14S Intelligent Lithum Battery) |
| Battery Lifespan(Cycle) | ≥500 |
| Intelligent Charger | AC Input 100-240V |
