• Model NO.：SZLH508
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Warranty：1 Year
• ID of Die(mm)：508
• Output(T/H)：6-20
• Brand Name：Fdsp
• Application：for Making Pellet Feed
• Transport Package：Pallet
• Specification：1500KG
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：8436100000
• Production Capacity：6-20tph

Basic Info.

Model NO. SZLH508 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Warranty 1 Year ID of Die(mm) 508 Output(T/H) 6-20 Brand Name Fdsp Application for Making Pellet Feed Transport Package Pallet Specification 1500KG Trademark FDSP Origin Jiangsu China HS Code 8436100000 Production Capacity 6-20tph

Product Description

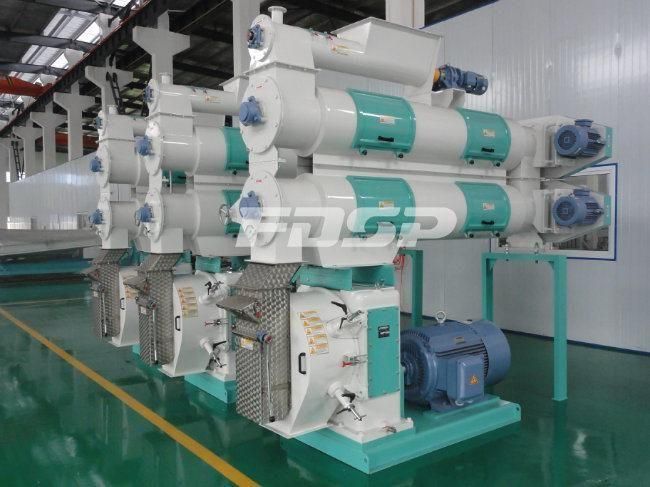

 High Quality Fish Feed Granule Machine Poultry Feed Bagging Machine
Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

Model	Output (t/h)	Main Power (kw)	Power Of Conditioner (kw)	Power Of Feeder (kw)	ID Of Die (mm)	Pellet Size (mm)
SZLH508	6-20	110/132/160	7.5	1.5/2.2	508	2-18

FAQ
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.

2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.

3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.

4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.

5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
