Cleaning Pre-Screener for Biomass Pellet Production Line
Jiangsu Liangyou Zhengda Co., Ltd.- Revolution Speed(Rpm)：13
- Power(Kw)：1.5
- Capacity (T/H)：60-70
- Air Suction Quantity (M³/Min)：18
- L*W*H (Mm)：2270*1120*1660
- Transport Package：Iron Pallet and Soft Guard
Base Info
- Model NO.：MCY100
- Trademark：FDSP
- Origin：China
- HS Code：84361000
- Production Capacity：3000unit Per Year
Description
Basic Info.
Model NO. MCY100 Trademark FDSP Origin China HS Code 84361000 Production Capacity 3000unit Per YearProduct Description

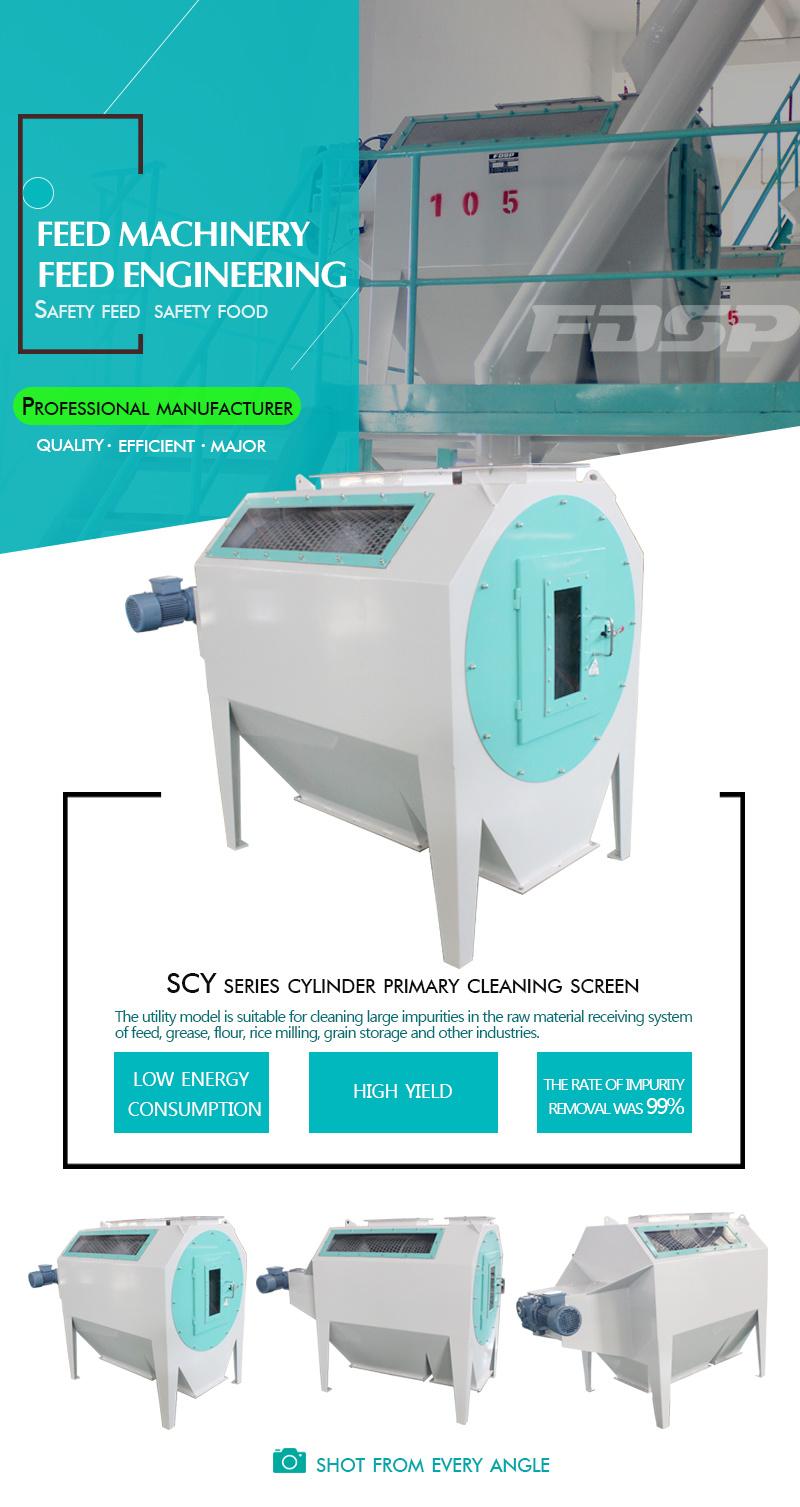

Cleaning Pre-Screener for Biomass Pellet Production LineProduct Description:
·It is mainly used for the receiving, moving and cleaning of the grain as well as the precleaning of the raw materials in the feed, food processing , chemical industry ,etc.
·Equipped with different sieve, this screener can dispose many materials like wheat,corn,rice,oil,etc.
Advantages:
1.This equipment has simple structure, smooth operation,less cover area , low energy consumption, high efficiency, etc, using horizontal cantilever rolling cylindrical sieve and reverse feed, riddle drum has a guide screw, can bolting materials fully and prevent impurities with useful materials;
2.The equipment is suitable for food processing, feed processing, food warehouse and other industries of raw grain cleaning work ,it can clean up the wheat straw,rice straw,stone,hemp rope etc. of the wheat, rice, soybeans and so on, avoid the equipment malfunction and damage of back-end processing.
Main Technical Parameters
| Type | Specification | Revolution speed(rpm) | Power(kw) | Capacity (t/h) | Air suction quantity (m³/min) | L*W*H (mm) |
| MCY63 | 630*800 | 20 | 0.55 | 10-20 | 12 | 1707*840*1240 |
| MCY80 | 800*950 | 18 | 0.75 | 25-50 | 12 | 2038*1020*1560 |
| MCY100 | 1000*1100 | 13 | 1.5 | 60-70 | 18 | 2270*1120*1660 |
Product exhibition:
