Wheat Maize Seed Coating Machine
Hebei Ruixue Grain Selecting Machinery Company Limited- Agent Supply Model：Dosing Pump
- Dimension：2150*800*2400
- Power (Kw)：2.3
- Transport Package：Wooden Case or Container
- Specification：ISO9001: 2008, SGS, TUV, SONCAP
- Trademark：SYNMEC
Base Info
- Model NO.：5BY-5B
- Origin：China
- HS Code：84371090
- Production Capacity：50sets,Month
Description
Basic Info.
Model NO. 5BY-5B Origin China HS Code 84371090 Production Capacity 50sets/MonthProduct Description

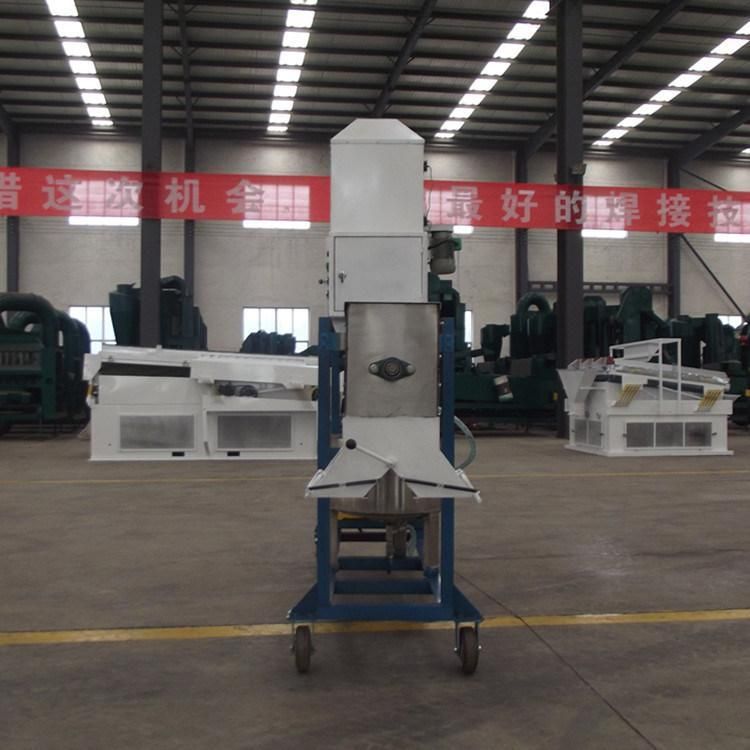

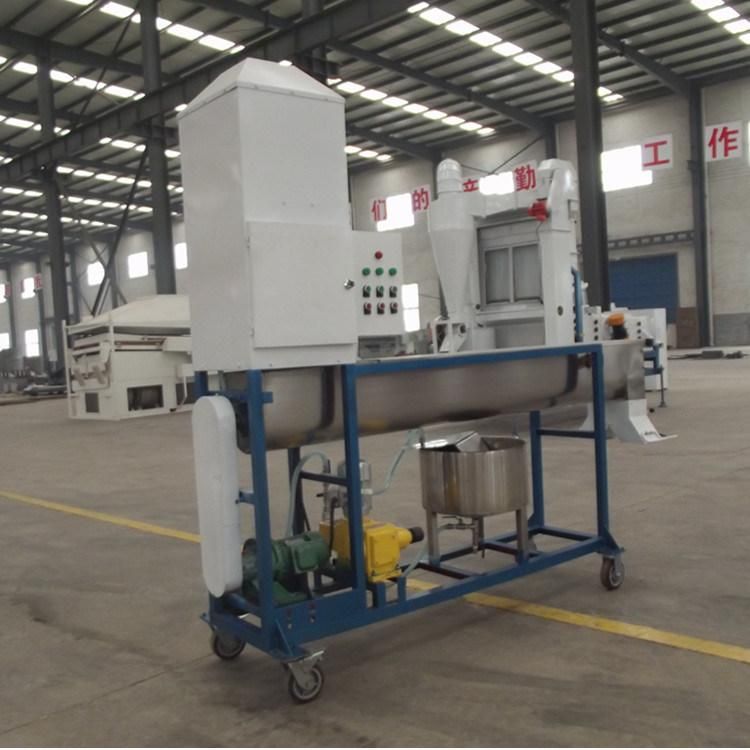

5BY-5B Wheat Seed Coating Machine
Features of 5BY-5B Wheat Seed Coating Machine:
The 5BY-5B Wheat Seed Coating Machine is controlled by the dosing pump, it can adjust the quantity and the percentage of medicine : seed, so it is easy operate, and it can clean itself automatically.
Application of 5BY-5B Wheat Seed Coating Machine:
The 5BY-5B series Wheat Seed Coating Machine is a good choice for coating seed. It applies for various crops, such as seed of wheat, barley, maize, sorghum, soybeans, cotton, vegetables, fruits etc.
Working Principle of 5BY-5B Wheat Seed Coating Machine:
Seeds can be continuously fed into inlet through feeding bucket, at the same time quantitative medicine will be atomized by the high speed centrifugal rotary disk and adhere to the surface of seeds, then the seeds will be completely mixed by the soft auger in the stainless steel cylinder.
High speed centrifugal rotary disk (for atomizing the liquid medicine) and large stainless steel cylinder (for mixing by auger rolling), can have a good coating effect.
| Type | Capacity (t/h) | Power (kw) | Weight (kg) | Dimension (mm) | Agent Supply Model |
| 5BY-2 | 2 | 1.47 | 200 | 1600× 800× 1500 | Spoon |
| 5BY-5A | 5 | 6 | 800 | 2200× 900× 2500 | Spoon |
| 5BY-5B | 5 | 2.3 | 700 | 2150 × 800× 2400 | Dosing Pump |
