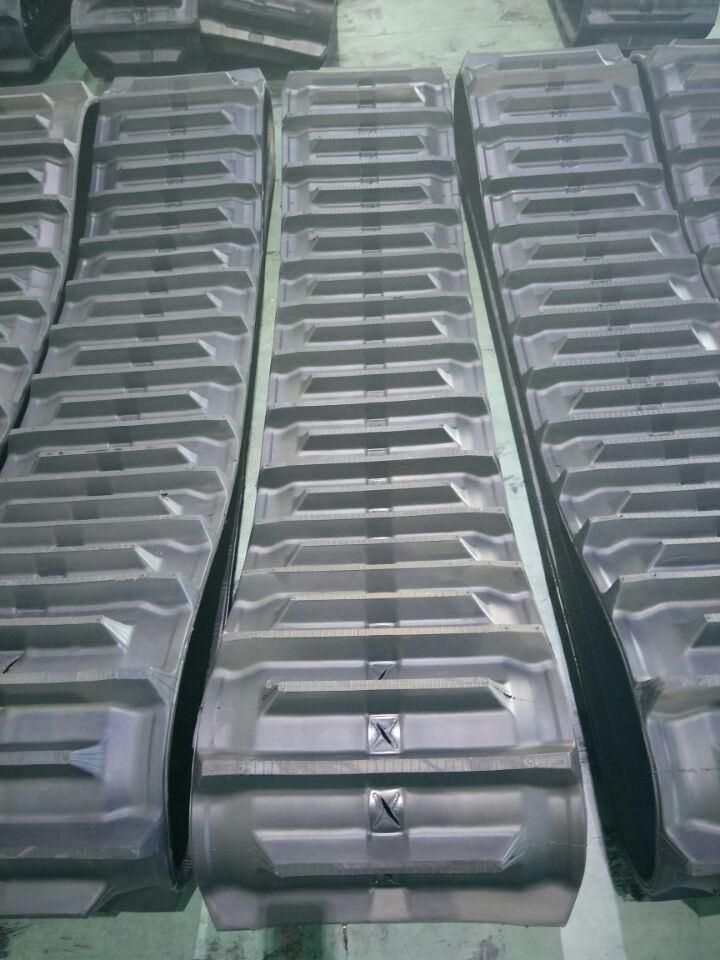

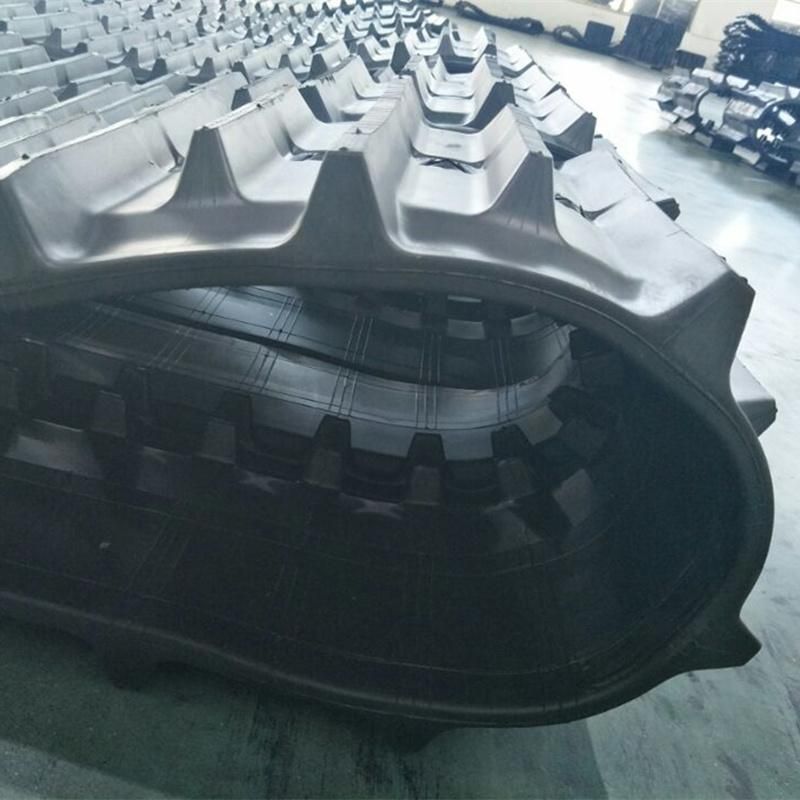

Harvester Rubber Track for DC70 (D500*90*56)
Shanghai Puyi Industrial Co., Ltd.- Type：Electronic Security Devices
- Usage：Harvester
- Material：Rail Steel
- Power Source：Gasoline
- Weight：3.5lbs
- After-sales Service：Online Support
Base Info
- Model NO.：D500*90*56
- Warranty：Half Year Under Normal Use
- Material for Rubber Track：Rubber and Steel
- Width：500mm
- Pitch Length：90mm
- Links：56
- Total Length：5040mm
- Weight for Rubber Track：167kg,PC
- Transport Package：Kraft Paper, Wooden Case, Pallet
- Specification：D500*90*56
- Trademark：No Marks or As Buyers′ Requests
- Origin：Shanghai, China
- HS Code：8431499900
- Production Capacity：3000pieces,Month
Description
2.About us
Business Type:
Manufacturer, Trading Company
Location:
Shanghai, China
Company Certifications:
ISO9001:2008; ISO14001:2004
Main Products:
We manufacture and distribute vairous aftermarket undercarriage parts such as sprockets, track rollers (bottom roller), carrier rollers (top rollers), track adjuster ,idlers, track link assembly, pins and bushings, idler segments, track shoe, rubber track for truck, rubber track, snowmobile rubber track, ATV/UTV rubber track, track crawler track etc.
Our philosophy:
Our philosophy is to provide our partners with a wide choice of quality spare parts for crawler bulldozer & excavator and excellent services. We assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed company.
Should you need the product, pls advise your machine brand & model, or offer the Part #, Thank you!
If you have a mass of count products with new type, we also can develop the new one for you if you are interested in our company. If you don't find the type you want at follows, please give us the particular information of the type you want, and we'll do our best to help you.
| Size | Weight for Each Link | Size | Weight for Each Link | Size | Weight for Each Link |
| 130*72 | 0.36 | WD300*72 | 1.459 | 400*144 | 7.75 |
| 150*60 | 0.52 | B300*84 | 2.88 | 400*144Y | 7.41 |
| 150*72 | 0.55 | T300*86 | 3.13 | 420*100 | 5.3 |
| 170*60 | 0.48 | 300*109KW | 3.38 | 450*71 | 4.45 |
| 180*60 | 0.56 | K300*109 | 3.56 | DW450*71 | 4.82 |
| 180*72 | 0.64 | 300*109N | 3.32 | 450*73.5 | 4.57 |
| 180*72K | 0.87 | 300*109W | 3.21 | 450*76 | 5.27 |
| H180*72 | 0.77 | 320*52.5 | 1.69 | 450*81.5 | 5.24 |
| 190*60 | 0.59 | 320*54 | 1.81 | 450*81N | 5.19 |
| 190*60 | 0.59 | B320*84 | 2.95 | 450*81W | 5.02 |
| 190*72 | 0.72 | B320*86 | 2.99 | 450*83.5 | 5.47 |
| 200*72 | 0.84 | B320*86SB | 2.99 | 450*83.5Y | 5.67 |
| 200*72K | 1.07 | B320*86C | 3.01 | 450*84 | 4.22 |
| 230*48 | 0.87 | B320*86Z | 3.12 | B450*86 | 4.33 |
| 230*48K | 1.06 | B320*86CM | 3.01 | B450*86SB | 4.3 |
| 230*72 | 1.09 | B320*86R | 2.99 | B450*86C | 4.31 |
| 230*72K | 1.34 | T320*86 | 3.22 | B450*86Z | 4.51 |
| 230*96 | 1.77 | T320*86MB | 3.3 | B450*86CM | 4.37 |
| 230*101 | 1.92 | T320*86SB | 3.27 | B450*86R | 4.3 |
| 250*47 | 1.11 | T320*86C | 3.25 | 450*90 | 4.07 |
| 250*48.5 | 1.13 | T320*86Z | 3.53 | KU450*90 | 3.9 |
| 250*52.5 | 1.04 | 320*90 | 2.85 | 450*110 | 6.9 |
| 250*52.5K | 1.31 | 320*100 | 2.67 | T450*100MB | 5.3 |
| 250*72 | 1.17 | 320*100W | 3.01 | T450*100 | 5.09 |
| B250*72 | 1.03 | 320*106 | 3.63 | T450*100SB | 5.16 |
| 250*96 | 2.21 | 350*52.5 | 1.85 | T450*100C | 5.2 |
| 250*109 | 2.39 | 350*54.5 | 2.31 | T450*100Z | 5.55 |
| 260*55.5 | 1.48 | 350*56 | 2.05 | 450*163 | 10.47 |
| 260*96 | 1.91 | 350*75.5 | 3.58 | 485*92W | 7.62 |
| 260*109 | 2.16 | 350*90 | 1.85 | 500*71 | 7.5 |
| 280*72 | 1.43 | 350*100 | 3.69 | 500*90 | 5.38 |
| 280*106 | 3.05 | 350*108 | 3.92 | 500*92 | 7.81 |
| 300*52.5KB | 1.67 | 350*109 | 4.12 | 500*92W | 8.6 |
| 300*52.5KW | 1.71 | 370*107 | 4.68 | 500*100 | 6.34 |
| 300*52.5N | 1.44 | 400*72.5KB | 3.44 | 500*146 | 9.97 |
| 300*52.5W | 1.56 | 400*72.5KW | 3.72 | 600*100 | 8.3 |
| JD300*52.5N | 1.54 | 400*72.5N | 3.48 | 600*125 | 10.39 |
| K300*52.5 | 1.72 | 400*72.5W | 3.85 | 650*110 | 13.34 |
| KB300*52.5N | 1.55 | 400*72.5Y | 3.62 | 650*120 | 13.75 |
| 300*53 | 1.81 | 400*74 | 3.4 | 650*125 | 15.8 |
| 300*55 | 1.88 | 400*75.5 | 4.09 | 700*100 | 10.9 |
| 300*55.5 | 1.95 | 400*86 | 4.14 | 700*125 | 14.29 |
| 300*71 | 3.31 | 400*90 | 2.22 | 750*150 | 21.34 |
| 300*72 | 1.77 | 400*107 | 4.95 | 800*125 | 19.14 |
| 400*142 | 7.12 | K800*150 | 21.55 | ||
| ASV TRACK | M800*150 | 20.05 | |||
| 280*102*37 | 1.36 | PAVER TRACK | 900*150 | 31.23 | |
| 380*102*42 | 1.9 | 356*152.4*46 | 4.81 | 1000*150 | 33.3 |
| 460*102*51 | 2.41 | 483*152.4*52 | 6.07 | ||
| 460*102*56 | 2.49 | 460*225*36 | 7.79 | SPECIAL TRACK | |
| 460*102C*51 | 2.44 | 6"*3.5"*28 | 0.41 | ||
| 510*102*51 | 2.6 | 10"*3.5"*28 | 0.51 |
4.Why choose us
1, Short delivery time (2-4 weeks)
2, Strict raw materials ,semi-finished products and finished products inspection system ;
3, The product quality and stability is recognised by the market;
4, ODM service is available;
5, Much lower cost because of mass production;
5.Attention of rubber track using
1.Avoid quick starting or turning the machine on sharp edged or projected ground.
2.Keep the surface of rubber away from oil or grease. Wipe off immediately while it is oil stained.
3.Avoid corrosion between rubber tracks and other components of the machine,especially on its inner circumference.
4.Do not use heavily worn driving wheel because it may damage the iron teeth of the rubber track.
5.If the machine is unused for a long time,the rubber track should be dismantled and cleaned of mud and other useless material and kkep indoors from direct sunlight and raindrops.
6.As it is rubber-made products, the rubber track would well under the temperature between -25-55 degree. However ,special rubber may meet the special needs of customers.
