• Model NO.：SZLH420a2
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Output：2-5 T,H
• Main Power (Kw)：37,45kw
• Power of Conditioner (Kw)：2.2+2.2kw
• Power of Feeder (Kw)：0.55kw
• ID of Die：320mm
• Pellet Size：2-18mm
• Transport Package：Pallet
• Specification：1500KG
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：8436100000
• Production Capacity：2-5 T,H

Basic Info.

Model NO. SZLH420a2 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Output 2-5 T/H Main Power (Kw) 37/45kw Power of Conditioner (Kw) 2.2+2.2kw Power of Feeder (Kw) 0.55kw ID of Die 320mm Pellet Size 2-18mm Transport Package Pallet Specification 1500KG Trademark FDSP Origin Jiangsu China HS Code 8436100000 Production Capacity 2-5 T/H

Product Description

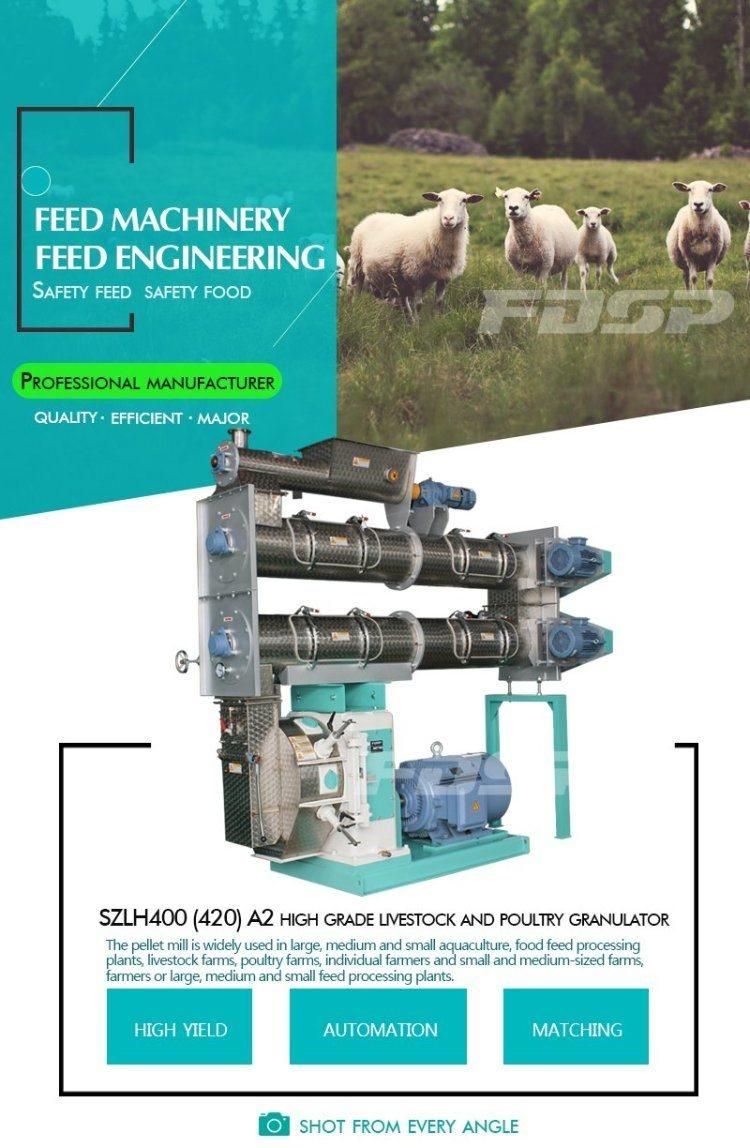

High Grade Poultry Feed Production Machine Feed Making Machine for Chicken
Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch and anti bridging structure; Electromagnetic converter control;
3. Stainless steel conditioner; Axial steam spraying extends the conditioning time and cooking effect;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC.




Working principle:
The main structure of this machine: it is mainly made up of feeder, conditioner, pelletizing, main transmission system and lubricating system etc.
the working process is as follows: the compound powder material with water content no greater than 13% enter into screw feeder through hopper, through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, the security magnets remove the magnetic impurity mingling with supplies, then enter the conditioner, through the agitating of conditioner axle to mix with steam to do the conditioning, if needs to add molasses or oil, also to add it from conditioner barrel joining together with steam and conditioning together, (the adding amount of oil seldom exceeds 3%, otherwise difficult to take shape), after conditioning the compound powder material temperature could reach 75-90 ºC, humidity is up to 15%. Then through the chute, enter the pressing room to pelletize finally.


FAQ of us
1) The mixer is a single machine or a complete production line?
---It is a single machine, a part of the complete production line. You can choose it for your existing line or you can also let us design the feed plant for you..

2) What is the delivery time of the fish feed pellet machine?
----Usually the single machine can be sent within 45 days after getting the deposit If it is a large order or production line, the time maybe longer.

3) Are you a trading company or a manufacturer?
   ---- We are a manufacturer, which has almost 10 years of experience in feed machine industry.

Customers From All Over The World
We insist on "Faith & Federation , Develop & Creativity, Service & sincerity , Pluck & Prestige " ,also we own outstanding R&D team with the sense of innovation and cooperation.



Our Service:
Warranty:1 year
Our professional service includes: Free training, Guidance Installation and Debugging.
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.



Certifications:
FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification.
