Agricultural Machinery

Aquaculture Net Cage Offshore Sea Farming

Guangdong Nanfengwang Technology Co., Ltd.
  • Type:Farming Machinery
  • Certification:CE, ISO9001:2008
  • Condition:New
  • Floating Pipe:200mm,250mm,315mm,350mm,400mm
  • Color:Black and Yellow
  • Material:HDPE Pipe

Base Info

  • Shape:Round
  • Delivery Detail:Two Weeks After Receiving Deposit
  • Transport Package:in Bulk
  • Specification:Diameter 10m - 50m
  • Trademark:Souther
  • Origin:Guangdong, China
  • HS Code:5608110090
  • Production Capacity:6000sets,Year

Description

Circumference(M)Diameter of floating pipe(MM)Diameter of handrial pipe(MM)Diameter of stand pipe(MM)30200mm90mm110mm40200mm/250mm90mm/110mm110mm/125mm50250mm110mm125mm60250mm/315mm110mm125mm70315mm110mm/125mm125mm80315mm110mm/125mm--90350mm125mm--100350mm/400mm125mm--120350mm/400mm125mm--150350mm/400mm125mm--200400mm125mm--





HDPE square floating cage frame specificaitonsL*W(M)Diameter of floating pipe(MM)Diameter of handrial pipe(MM)Diameter of stand pipe(MM)3m * 3m200mm90mm110mm4m * 4m200mm90mm110mm5m * 5m200mm90mm110mm6m * 6m200mm/250mm90mm/110mm110mm/125mm7m * 7m250mm/315mm110mm125mm8m * 8m250mm/315mm110mm125mm9m * 9m250mm/315mm110mm125mm10m * 10m315mm110mm125mm12m * 12m315mm/350mm110mm/125mm125mm/--15m * 15m315mm/350mm110mm/125mm125mm/--20m * 20m350mm/400mm125mm--30m * 30m350mm/400mm125mm--

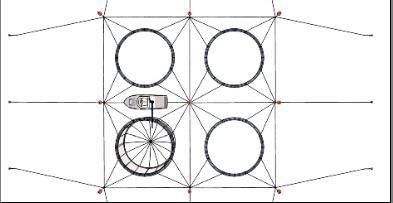

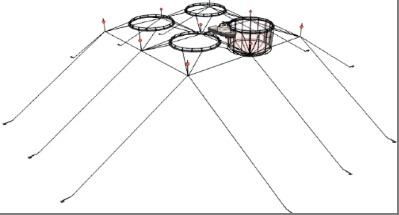

Mooring systemOur mooring system is "Grid"system in the deep sea or fresh water,the "Grid"system is made by the ropes and shackles, the cages are in the grid and fixxed bu ropes.Such the cages are united as one group, one cage moves,other cages all move,they are interrelated and mutual restraint to avoid destruction accidents caused by collisions between different cages even in the bad sea condition.


 Aquaculture Net Cage Offshore Sea FarmingAquaculture Net Cage Offshore Sea Farming

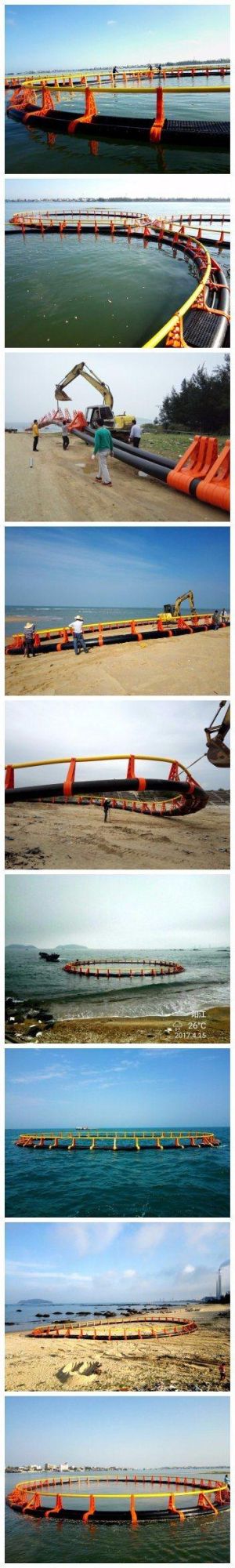

Products show
Aquaculture Net Cage Offshore Sea Farming

Our Factory
Aquaculture Net Cage Offshore Sea Farming
