• Model NO.：AR-12D
• Fishing Gear Winch Type：Fishing Machinery
• Fishing Auxiliary Machinery Type：No
• Certification：CE, QS, SGS
• Condition：New
• Finished processing machinery：Plastic Machines and Steel Machines
• Gears Teeth：13:40
• Gears Material：20crmnti
• Origin：China
• Production Capacity：5000,Month

Basic Info.

Model NO. AR-12D Fishing Gear Winch Type Fishing Machinery Fishing Auxiliary Machinery Type No Certification CE, QS, SGS Condition New Finished processing machinery Plastic Machines and Steel Machines Gears Teeth 13:40 Gears Material 20crmnti Origin China Production Capacity 5000/Month

Product Description

Name	Size / weight	Image	Quantity set	Material	remarks

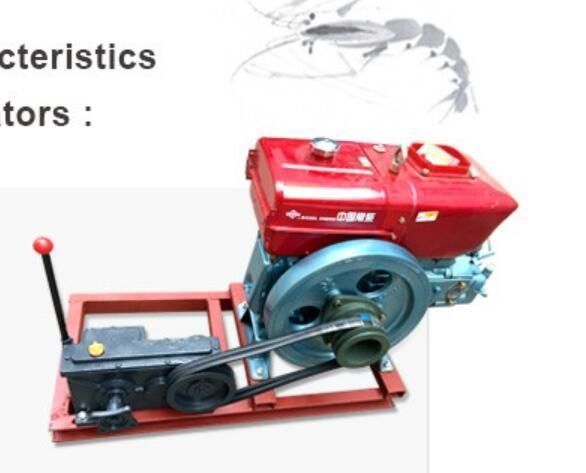

Diesel engine and gearbox	270mm•290mm•490mm/216KG		1pc	Cast iron,	Diesel engine customer support or we supply
Split connecting rod	5600mm/8KG		2pcs	304# SS
Pipe Impeller shaft	5500mm/21.5KG		1pc	304# SS
Impeller	660mm•660mm•200mm/2.1KG		12pcs	nylon

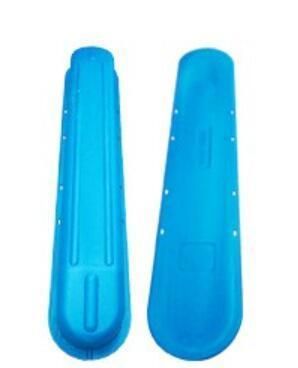

Float	1650mm•260mm•200/5.2KG		5pcs	PE
rubber  connector	130mm130mm•45mm/5.5KG		2pcs	Cast iron

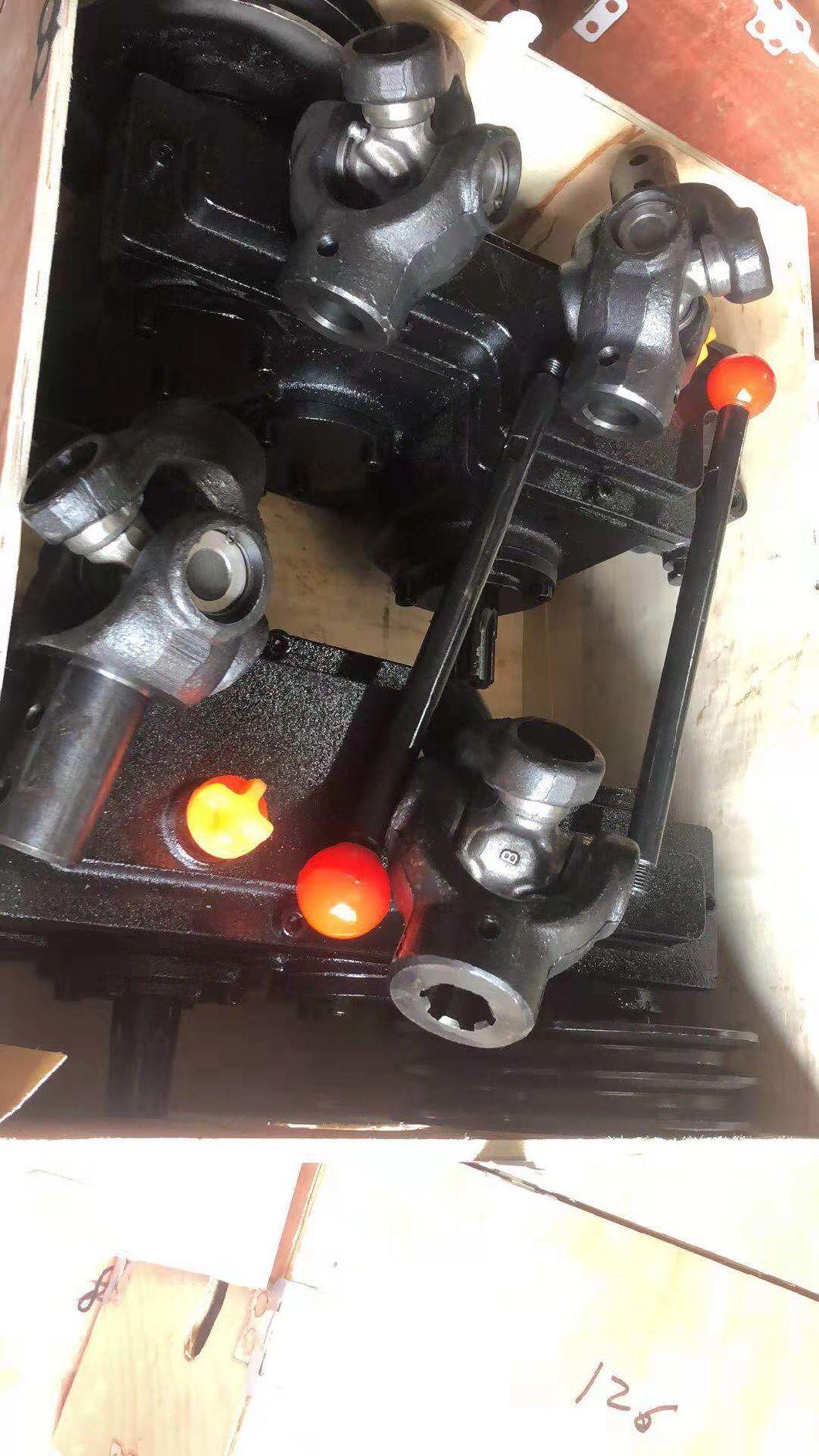

A universal coupling	200*90*90/2.7KG		2pcs	Cast iron
Bearing bracket	260mm•135mm•120mm/0.5KG		5pcs	nylon
Transmission shaft	6000mm/10KG		1pc	Galvanized pipe
Bearing bracket	230mm•115mm•170mm/5.6KG		1pc	Cast iron

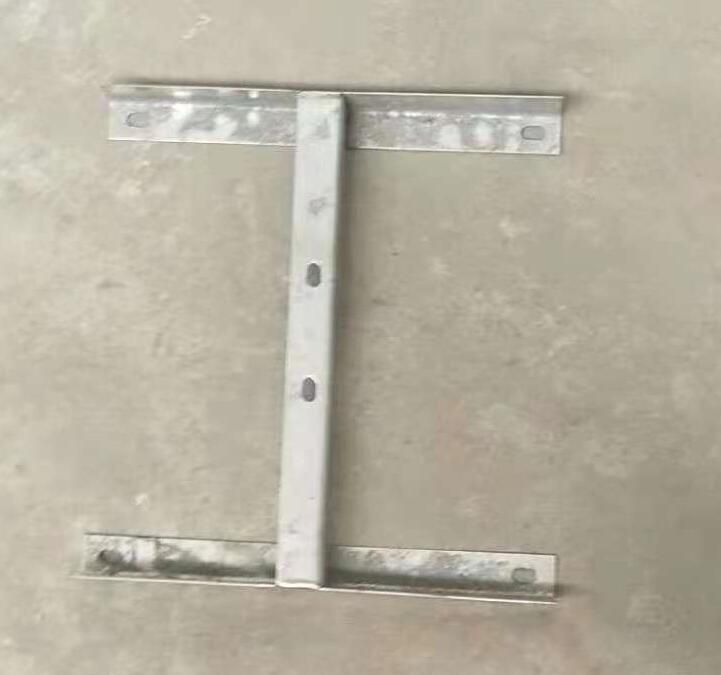

Bracket	320mm•280mm•50mm/1.5KG		1pc	304# SS
Bolt and nut	4KG			304# SS



Name	Size / weight	Image	quantity set	Material	remarks
Diesel engine and gearbox	270mm•290mm•490mm/216KG		1pc	Cast iron,	Diesel engine customer support
Split connecting rod	5600mm/8KG		2pcs	304# SS
Pipe Impeller shaft	5500mm/21.5KG		1pc	304# SS
Impeller	660mm•660mm•200mm/2.1KG		16pcs	nylon
Float	1650mm•260mm•200/5.2KG		7pcs	PE
rubber  connector	130mm130mm•45mm/5.5KG		2pcs	Cast iron
A universal coupling	200*90*90/2.7KG		2pcs	Cast iron
Bearing bracket	260mm•135mm•120mm/0.5KG		5pcs	nylon
Transmission shaft	6000mm/10KG		1pc	Galvanized pipe
Bearing bracket	230mm•115mm•170mm/5.6KG		1pc	Cast iron
Bracket	320mm•280mm•50mm/1.5KG		1pc	304# SS
Bolt and nut	4KG			304# SS
