• Model NO.：xgz-zp-057
• Condition：New
• Insulation：Fiberglass, Sandwich Panel
• Life Span：30~50years
• Design Load：Wind Speed, Snow Load, Earthquake etc
• Strucuture Anti Rust Grade：Hot DIP Galvanized
• Size：Length*10-16m
• Auger Capacity：450kg,H
• Transport Package：Seaworthy Packing
• Trademark：xgz
• Origin：China Qingdao
• HS Code：84369200
• Production Capacity：50000sets Per Month

Manpower hopper or silo600/800kg hopper, 5/8/10/15/18/20mt siloMotorTaiwan brand
Power: 0.75Kw/1.1Kw
Voltage: 380V, three-phase/220V, single-phase/othersMain feed lineDiameter of pipe: 75mm
Material: PVCAugerOrigin: South Africa
Feeding ability: 1400Kg/h (maximum)SensorOrigin: Germany



Different specifications of silos are alternative to choose according to the daily consumption.
Material of silo consist of galvanzied sheet and glass fiber reinforced plastic.

*If you don't use silo, you can use manpower hopper. Usually, if you just build one or two chicken house, we suggest you use hopper instead of silo.

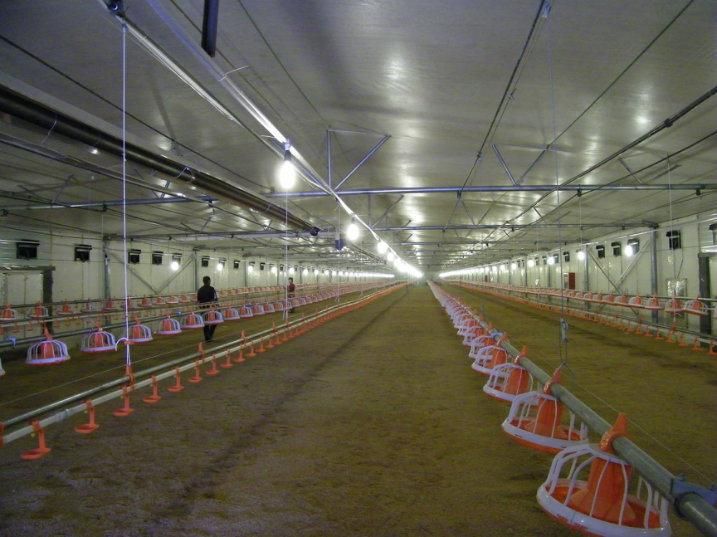

2. Automatic pan feeding line system

V-shape bin (with hopper)Bin volume: 100L
Material: Hot-DIP galvanized sheetMotorTaiwan brand
Power: 0.75Kw/1.1Kw/1.5Kw
Voltage: 380V, three-phase/220V, single-phase/othersDelivery pipeDiameter of pipe: 45mm
Material: Hot-DIP galvanized steelAugerOrigin: South Africa
Feeding ability: 450Kg/h (maximum)Feed panPan distance: 4 pans/3m, 3 pans/3m
Raising ability: 45-55 birds/PC
Material: Pure engineering plasticSensorOrigin: GermanySuspension &lifting deviceWe can adjust the feeding line by winch. Anti-perching deviceIt prevents birds staying on the feeding line for too long.

*There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery.

The motor will start working and deliver feed when the feed pan (with sensor)
Lacks feed and will stop working when the feed pan (with sensor) is full of feed.

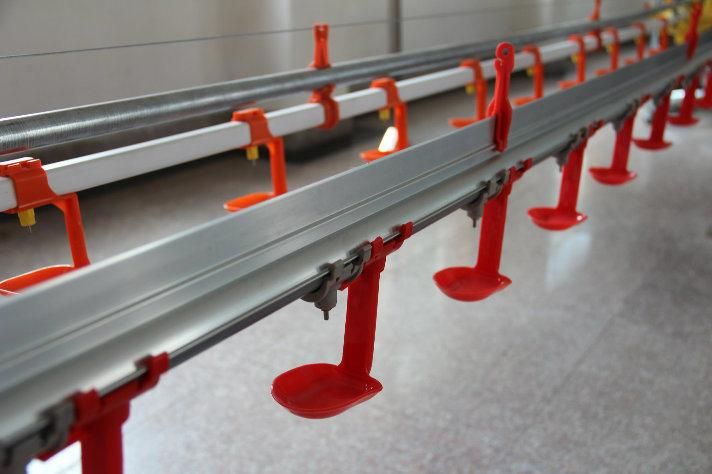

3. Automatic nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

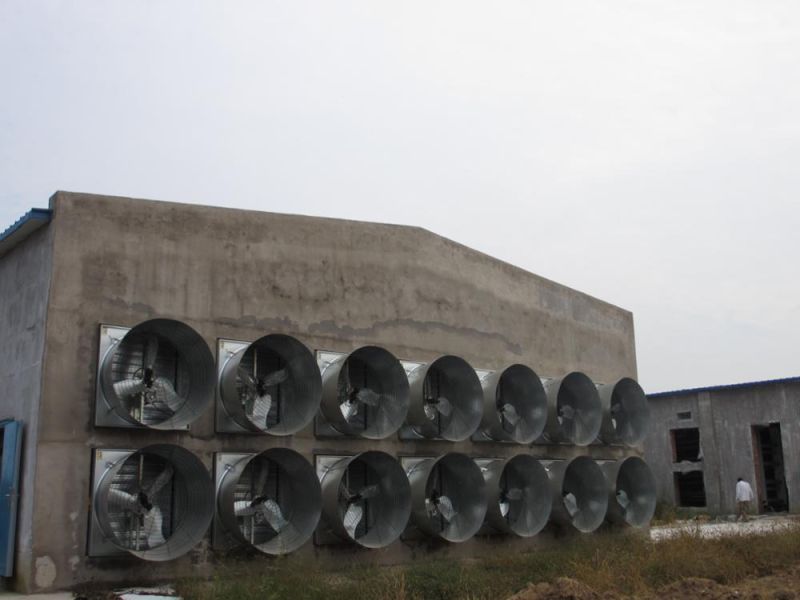

4. Automatic ventilation fan system

Specifications50'' box fan36'' box fanFlow amount (m3/h)4100020800Size (L*W*H) (mm)1380*1380*4501000*1000*450Noise level≤65dB≤64dBPower1.1Kw0.4KwVoltage380V/220V/others380V/220V/othersCurrent2.8A1.6AWeight88Kg66Kg*The system controls climate condition, can provide fresh air, proper humidity and temperature for birds, ensuring your chickens provide maximum production.

*The system including ventilation fan (box fan or butterfly cone fan) and air inlets.

*If your chicken farm is open, there is no need to use 36'' fan and air inlets, however, you
Might need curtain system.

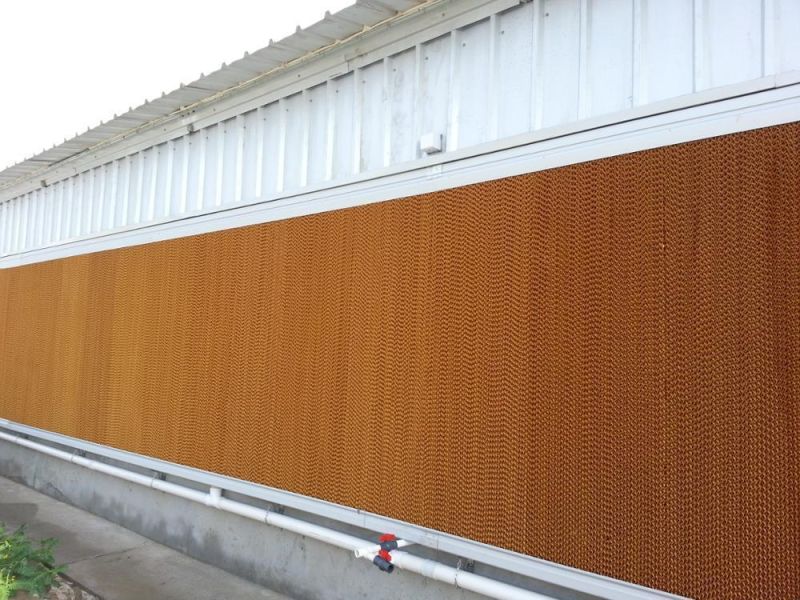

5. Cooling pad system:
Thickness: 100mm; 150mm
Width: 600mm
Height(with frame): 1660mm; 1960mm; 2160mm
Frame: Galvanized sheet/Aluminium alloy
*When the air goes through the pad, the heat will be took down by the evaporation of water, so
The air will be cooled before going into the chicken farm.

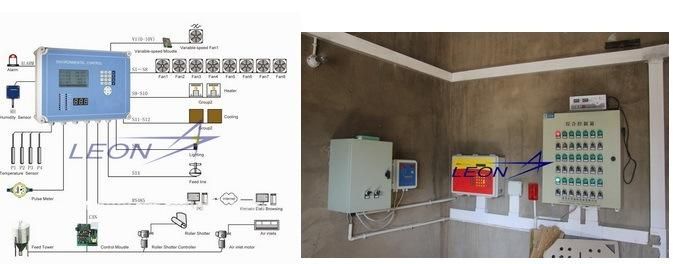

6. Environment control system
*The system saves labor and resources under the condition of assuring the optimum growth environment of chickens.
*It is imported from Israel can set an optimum working mode according to the local climate
And raising environment.

 7. Spraying and disinfecting system
*It's effective tool for cooling, damping, dedusting and disinfecting the house. (the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes) 8. Heating system(heater): *Proper temperature is critical to chickens, especially day-old chicks, we have different kinds,
They fire coal, diesel, gas or use electricity, 4 kinds for your option.

9. Curtain system:
*In some tropical zone, the farmers are inclined to use curtain instead of real walls(open farm),
They will use big fan accordingly.
*Our curtain have two kinds for your choice, manual operated one and motorized one.




Our excellent design team will design the steel structure workshop warehouse for
you. If you give the following information, we will give you an satisfactory drawing.

1 Location (where will be built? ) _____country, area

2 Size: Length*width*height _____mm*_____mm*_____mm

3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s

4 snow load (max. Snow height) _____kn/m2, _____mm

5 anti-earthquake _____level

6 brickwall needed or not If yes, 1.2m high or 1.5m high

7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.

8 door quantity & size _____units, _____(width)mm*_____(height)mm

9 window quanity & size _____units, _____(width)mm*_____(height)mm
