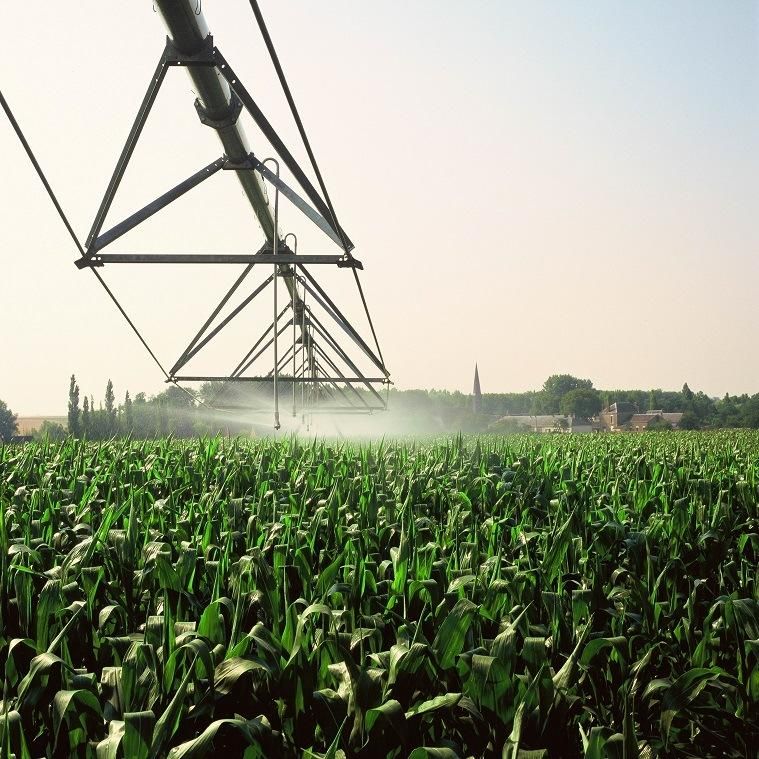

Large Farmland Centre Pivot Irrigation System with Komet End Gun

Anhui Irritech Agriculture Equipment Corporation Limited
  • Usage：Irrigation
  • Type：Irrigation System
  • Power Source：Electricity
  • Drainage & Irrigation Mode：Sprinkler Irrigation Equipment
  • Pump Type：Turbine Pump
  • Material：Metal

Base Info

  • Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
  • Certification：ISO9001:2008, CCC
  • Condition：New
  • Application Field：Agriculture
  • Trademark：IRRITECH
  • Origin：China

Description


No.ItemSpan Specification1Center Pivot6 5/8''(168mm) or 8 5/8''(219mm)2Pipe Spec.  5''(127mm);6 5/8''(168mm)or 8''(203mm)3Span Length  37.5m;43.3;49.1;54.9;or 60.74Tire Spec.14.9-24 or 11.2-24;including Vacuum and inner tube5Cable Spec.    Armored Cable,passed the UL certification6Motor         UMC25.5:1(1.5hp) or UMC40:1(0.75hp)7Gear Box     UMC50:1 or UMC 52:18Length of OH2.7m,5.5m,8.2m,11m,16.5m,19.5m or25mNotice: 8 5/8''(219mm) pipes only suit to spans in 43.3m and 49.1mLarge Farmland Centre Pivot Irrigation System with Komet End Gun
Parameters of different spans

DiameterLength(m)Outlet SpacingCrossing AltitudeG.W with water219 mm43.3 m192 cm or 288 cm2.99 m3410 kg49.1 m2.93 m3770 kg168 mm43.3 m192 cm or 288 cm2.99 m2580 kg49.1 m2.93 m2830 kg54.8 m2.86 m3080 kg60.6 m2.83 m3320 kg127 mm43.3 m192 cm or 288 cm3.02 m2160 kg49.1 m2.96 m2350 kg54.8 m2.89 m2580 kg60.6 m2.86 m2730 kgLarge Farmland Centre Pivot Irrigation System with Komet End GunLarge Farmland Centre Pivot Irrigation System with Komet End Gun
