Philippines Hot Sale 4lz-4.0 Rice Combine Harvester with Vertical Discharging Pipe
Weifang Yourchance Machinery Co., Ltd.- Type：Vertical Cut Harvester
- Application：Rice, Wheat, Soybean
- Power Source：Diesel
- Harvest method：Cutting
- Drive Type：Gear Drive
- Transmission：Hard Shaft
Base Info
- Model NO.：4LZ-4.0
- Portable Harvester Type：Self-Propelled
- Certification：ISO9001:2008, CE
- Color：Red and White
- Condition：New
- Application Field：Agriculture
- Transport Package：Nude Packing for CBU Shipping by Container
- Specification：4890x2980x2700 mm
- Trademark：AH
- Origin：China
- HS Code：8433510090
- Production Capacity：30000 Sets , Year
Description
Basic Info.
Model NO. 4LZ-4.0 Portable Harvester Type Self-Propelled Certification ISO9001:2008, CE Color Red and White Condition New Application Field Agriculture Transport Package Nude Packing for CBU Shipping by Container Specification 4890x2980x2700 mm Trademark AH Origin China HS Code 8433510090 Production Capacity 30000 Sets / YearProduct Description

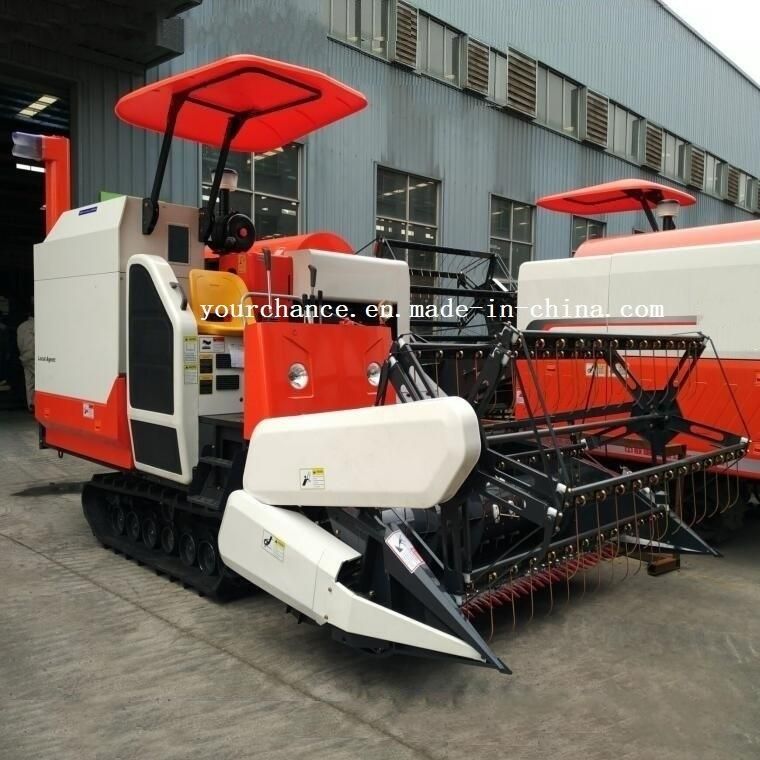

Philippines hot sale 4LZ-4.0 Rice combine harvester with vertical discharging pipe
AH 4LZ-4.0 harvester Main specification and Technical parameters :
| Model | 4LZ-4.0 |
| Structure type | Self-propelled,"L" Longitudinal flow, Full-feeding,Rubber track type |
| Overall Dimension(LxWxH) (mm) | 4950x2450x2860 |
| Weight (kg) | 2880-3300 |
| Suitable crops | Rice, wheat,rapeseed |
| Harvesting capacity (Hectare/H) | 0.25-0.90 |
| Cutting | |
| Cutting width(mm) | 2000m |
| Height adjusting type (mm) | Hydraulic |
| Cutting height (mm) | 20-950 |
| Feeding rate (kg/s) | 3.0 |
| Power | |
| Engine brand and model | Changchai 4L88 Diesel, 88HP/2700 rpm Diesel engine |
| Type | Water-cool,4-cylinder, Turbocharged |
| Fuel Tank | 100 L |
| Displacement (cc) | 2834 |
| Fuel consumption (L/H) | 7-11 |
| Drive system | |
| Gearbox | AH Unique high quality gearbox |
| Rubber Truck specification | 400/450*50*90 |
| Track gauge (mm) | External 1555, Internal 755 |
| Ground contact length (mm) | 1650 |
| Ground clearance(under axle housing) | 280mm |
| Transmission type | HST/ Stepless |
| Traveling speed (m//s) | F/R, Low 0-1.43,High0-2.65, Harvesting 0-1.87 |
| Steering | Hydraulic,brake+clutch change |
| Threshing+Separating system | |
| Threshing Length x Diameter (mm) | 1800*555 |
| Re-threshing | Equipped |
| Cleaning | Extra large, adjustable vibrating sieve |
| Grain unloading | |
| Grain tank | Big grain tank 1.2 CBM |
| Grain unloading type | Vertical discharging pipe,(Option:bag type,High discharging pipe type) |
| Performance Technical data | |
| Lost Rate(%) | Rice≤2.0, wheat≤2.0 |
| Broken Rate(%) | Rice≤1.2, wheat≤1.2 |
| Impurity(%) | Rice≤1.0, wheat≤1.0 |
| Sunshade(Canopy) or Cabin | Sunshade |
| Load Quantity | 1 set/20ft container, 3 sets/40HC |

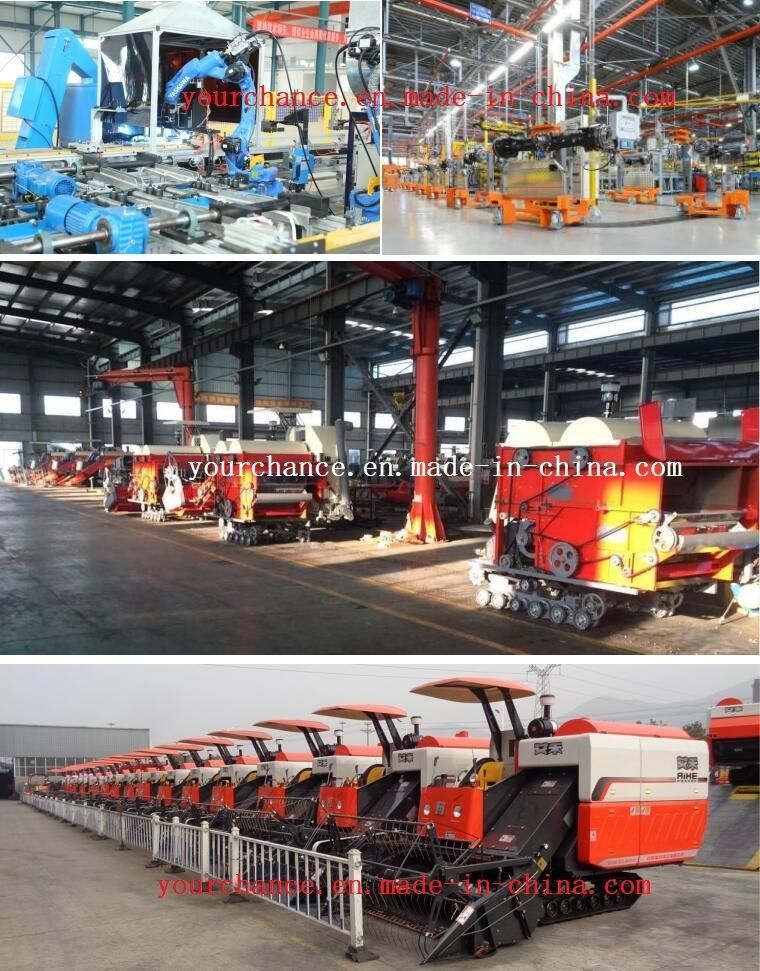

Advance technology and manufacturing equipments for High quality harvester:
High quality Harvester have ISO,CE, PVOC COC,etc certificates :
Harvester Loading container for CBU shipping:

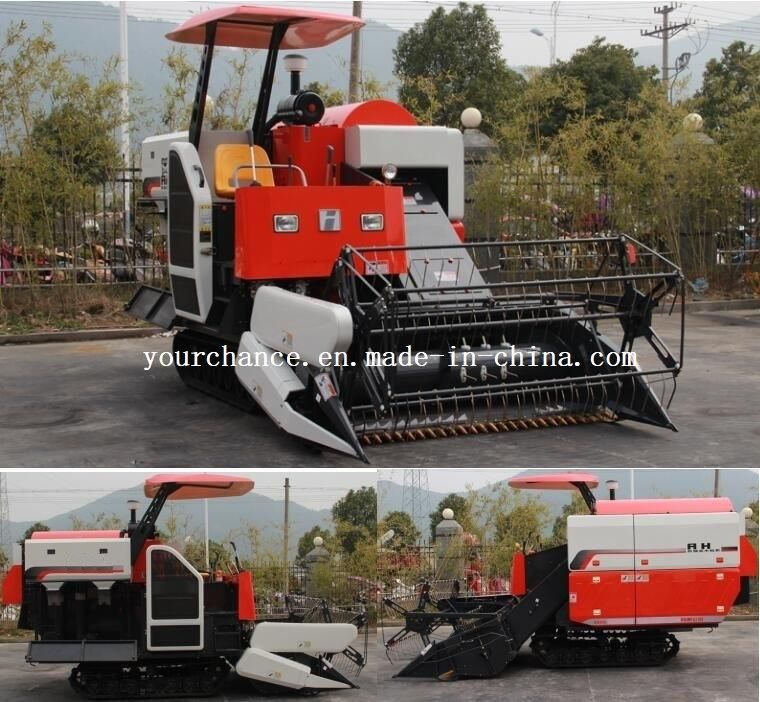

Different Configurations Harvester to meet different customers' special demand:
Best price will be quoted for you as soon as receive your Requirement !
