• Model NO.：KP-120A
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Capacity：80-100kg,H
• Power：2.2kw
• Weight：120kg
• Pellet Size：2mm-12mm
• Mould and Roller：Alloy Steel
• Pellet Usage：for Animal Pellet Feed
• Raw Material：Grain Powder, Corn, Stalk, Straw, Grass etc
• Raw Material Water Content：Between 15-20%
• Machine Material：Cast Iron and Alloy Steel
• Motor Warranty Period：12 Months
• Transport Package：Wooden Carton for Small Pellet Machine
• Specification：CE , SGS
• Trademark：Small Pellet Machine
• Origin：China
• HS Code：84793000
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. KP-120A Bulking Machine Type Twin Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Capacity 80-100kg/H Power 2.2kw Weight 120kg Pellet Size 2mm-12mm Mould and Roller Alloy Steel Pellet Usage for Animal Pellet Feed Raw Material Grain Powder, Corn, Stalk, Straw, Grass etc Raw Material Water Content Between 15-20% Machine Material Cast Iron and Alloy Steel Motor Warranty Period 12 Months Transport Package Wooden Carton for Small Pellet Machine Specification CE / SGS Trademark Small Pellet Machine Origin China HS Code 84793000 Production Capacity 1000 Sets Per Month

Product Description

High discount small automatic pellet machine

Model: KP-120A
Capacity: 100kgs/H
Matching motor: Y100L1-4 2.2KW
Flat die diameter: 120mm
Revolving speed: 366r/min
Die hole specification: Φ 2, Φ 2.5, Φ 3, Φ 4
Moisture of raw material: Less than 10%
Voltage: 380V / 50HZ

Raw material:

Mainly used to compress crushed corn straw, sawdust, plant waste, bamboo powder, grass, sunflower stalk, straw, rice husk, forestry waste, wood chips, chemical waste and ect. Into cylindrical shape particles. Raw material moisture is less than 10% before enter into pellet machine

Process:

1. Crushing, make the raw materials to be granulated.
2. Sifter the material
3. Drying, if the raw materials has too much moisture.
4. Pelletizing
5. Cooling and packing

Functions as follows:

1. Widely used in households, farming and industries.
2. Mainly suitable for producing feed pellets, fuel pellets, fertilizer pellets, etc.
3. Applied to different grains such as corn, wheat, sorghum, and any type of agro-forestry waste: Crops straw, husks, vines, wood chips, etc. (Energy-saving & Environment-protecting)
4. Our machine can produce pellet of Φ 2, Φ 3, Φ 4, Φ 5, Φ 6, Φ 8, Φ 10, Φ 12mm

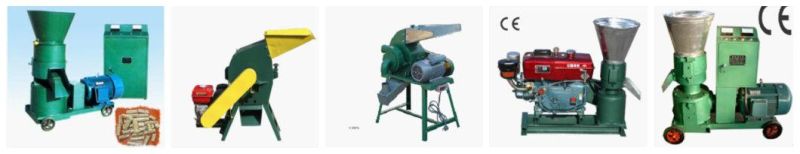

Machine spare parts:

We have different types of machines specially designed for actual application of clients. We will recommend proper model according to your need.
We also have other types machine at different capacity at different price, if this one can't meet your demand, please check the other types machine data!

What is Machine working Principle?

Based on the circular motion, motor or diesel engine powered, driven gear passed to spindle and flat die, cause the clamping roller rotation under the friction force function.
Under the pressure of clamping roller, raw material is squeezed from the die hole.
Adjusting the cutter to change the pellets length and after flings the material plate to arrive the discharge hole.
