• Model NO.：LSG1500
• Grapple Opening：2200 mm
• Clearance Between Grapple and Slew Joint：1280 mm
• Double Acting Slew RAM：Standard 63,30 mm
• Width of Dozer Blade：Width of Dozer Bladet960mm
• Transport Package：Iron Pallet
• Specification：LSG220
• Origin：China
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. LSG1500 Grapple Opening 2200 mm Clearance Between Grapple and Slew Joint 1280 mm Double Acting Slew RAM Standard 63/30 mm Width of Dozer Blade Width of Dozer Bladet960mm Transport Package Iron Pallet Specification LSG220 Origin China Production Capacity 100 PCS/Month

Product Description

Small hydraulic tractor log skidding grapple

Description of log skidding grapple

SKidder is an excellent tool for small and medium-sized tractors to haul full trees or lift and move logs.

 The skidder is equipped with a hydraulic telescopic arm which allows you to reach the logs and pull them in close to the tractor before skidding, improving your center of gravity and tractor traction. It also comes with a hydraulic motor to rotate the grapple 1 full turn in order to precisely lign up the grapple with the log.

As an extra option to the skidder we offer remote controlled winch. With the winch also comes the protective screen to protect driver and the tractor.  Accessories

• Rotary oil motor for claw rotation
• Transport lock for grapple
• Hydraulic control valve

Model	LSG220
Clamping force	6 ton
Grapple Cylinder	70/40 mm
Grapple force in ram at 160 bar working pressure	61 kN (6100 kg) 160 bar
Grapple opening	2200 mm
Clearance between grapple and slew joint	1280 mm
Double acting slew ram	Standard 63/30 mm
Width of dozer blade	960mm
Max recommended log diameter	150mm-700mm
Slewing range	55 °
Maximum pressure	20Mpa
3 point hitch	Cat II
Tractor	50-120HP
Weight	320 kg
20"/40"	30/65pcs

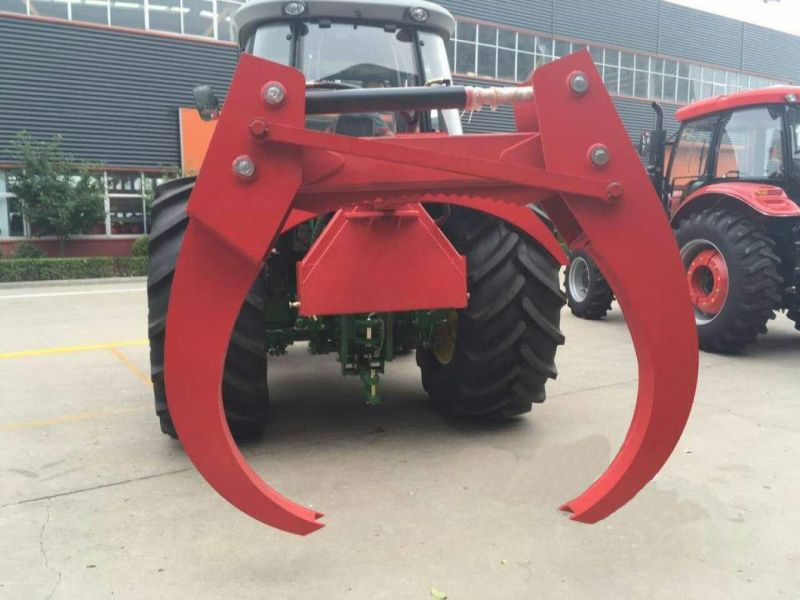

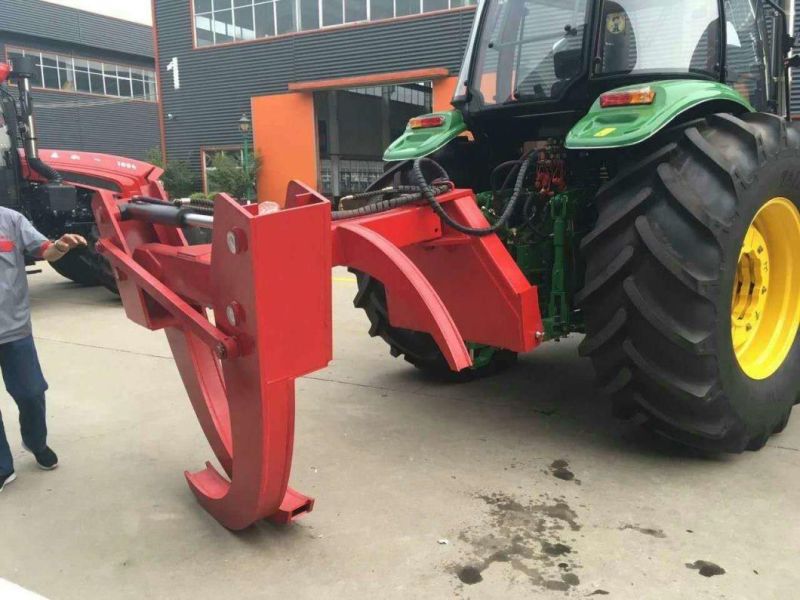

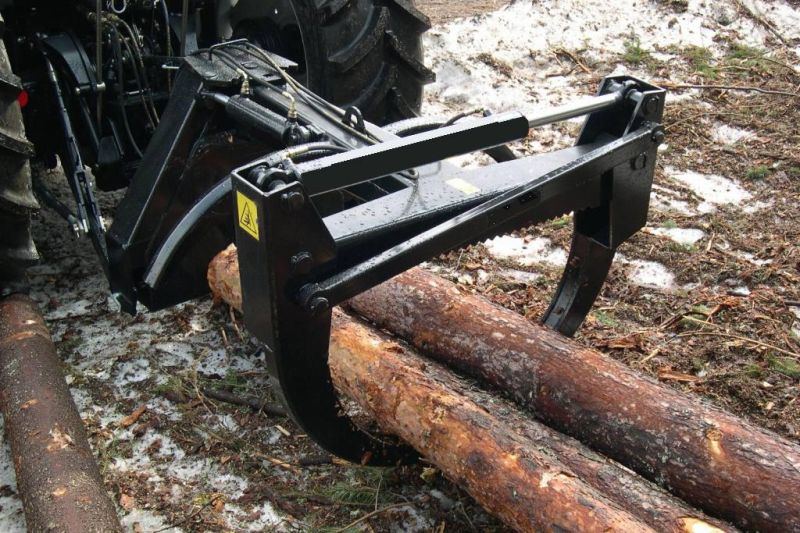

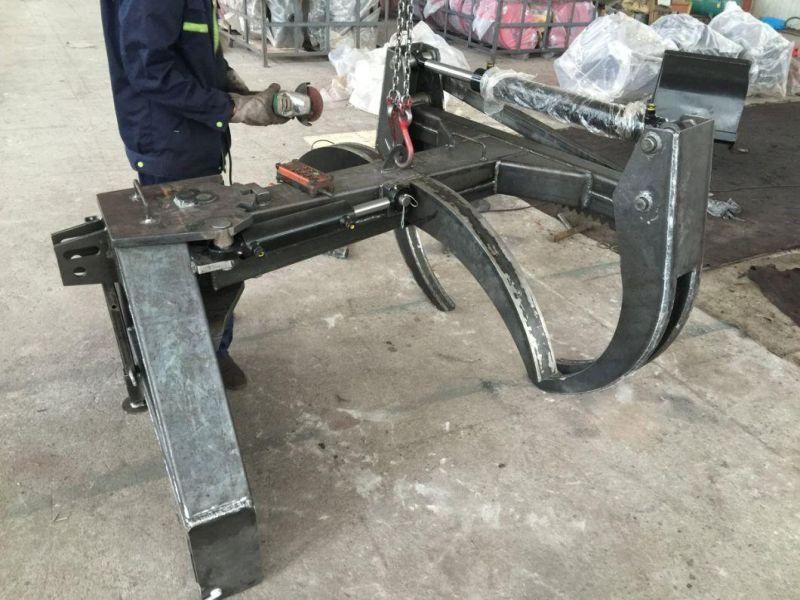

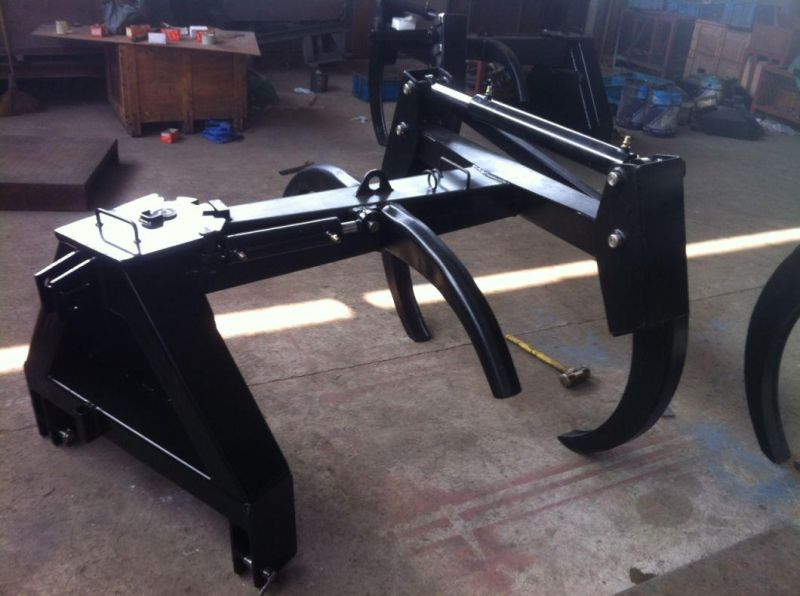

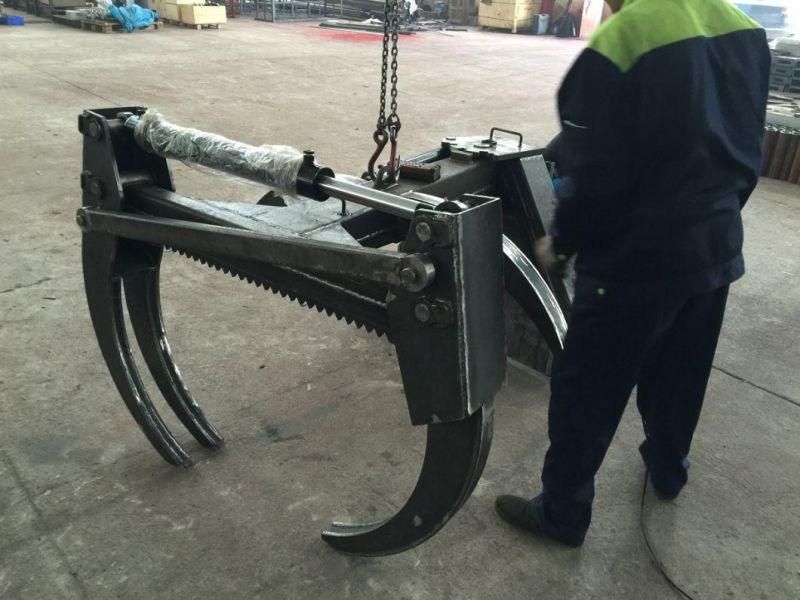

Detail image





After sale

we will provide new electrical accessiores or parts in warranty during time.(one year warranty period)

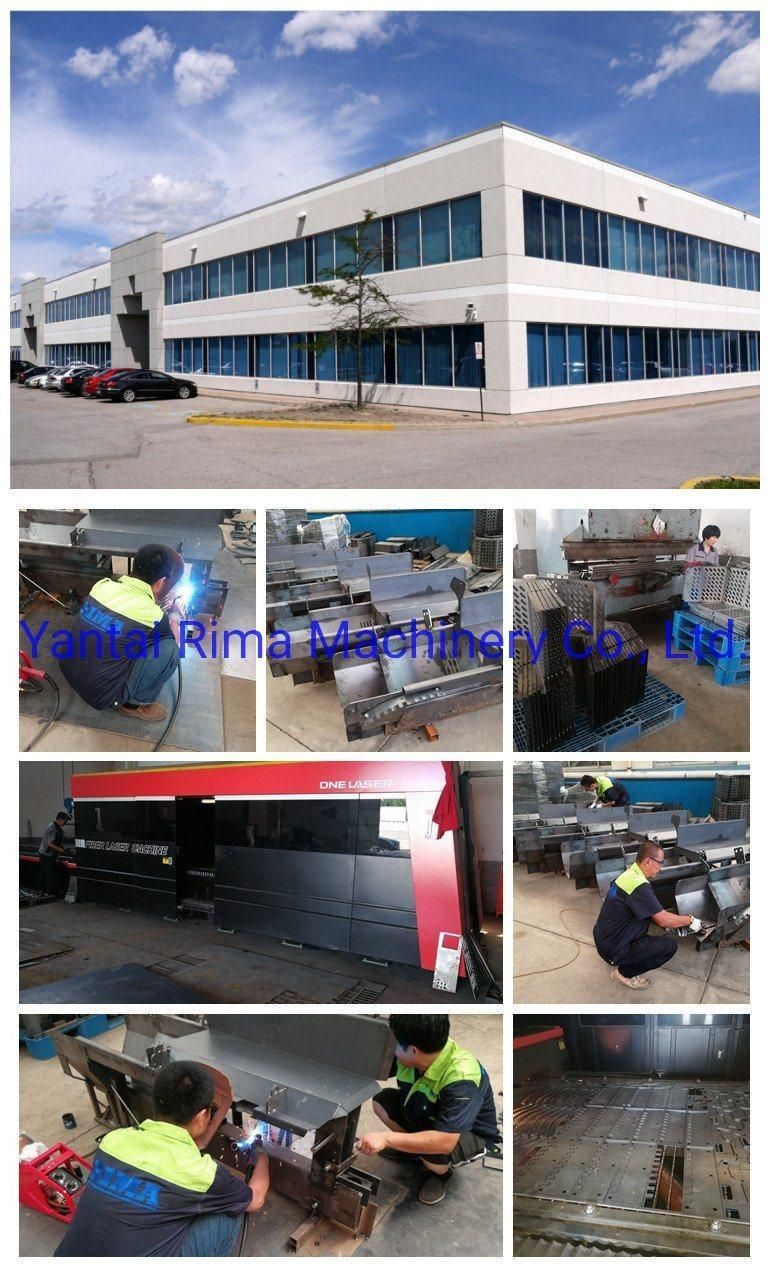

Company information

Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines, such as flail mower, firewood processor,log splitter, wood chipper, mini excavator, grapple etc. for compact utility tractors. Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers' requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
