• Model NO.：AM-DT02

Basic Info.

Model NO. AM-DT02

Product Description

Specifications

 1.Multifunction with cultivator parts.
2.Small order acceptable.
3.Factory price and high perfomance.
4.Easy for operation.

 Product Description

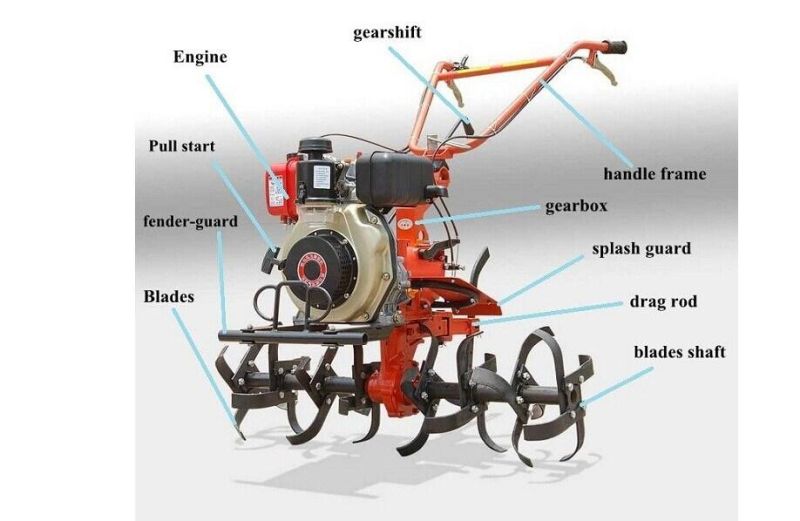

                MULTIFUNCTION DIESEL POWER TILLER:





Introduction:



It's the domestic exclusive production with the advanced technology in China, reliable performance. The machine is applicable for the Vegetables' rotary tillage, weeding, cultivation, fertilization, in the hills, slopes, small field, garden, nursery, greenhouse etc. It's with the advantages of small volume, light weight, flexible performance, simple operation.





Some features:



1.It have excellent quality and reasonable price.

2.Compact structure and perfect cultivate performance.

3.High work efficiency.

4.It can be matched with kinds of knives.





Details:





Diesel tiller                    178F/186F diesel engine power mini rotary tillerMODEL1WG-6Q10501WG-6Q1350Engine model178F186FEngine typeAir-cooled, 4-stroke,Vertical,Single-cylinder,  Direct injection combustion.Bore×stroke(mm)78×6286×72Displacement(cc)296418Compression ratio20:119:1Starting systemRecoil StartRecoil StartFuel oil tank volume (L)3.55.5Lubrication oil capacity(L)1.11.65Rated output power Hp/rpm6.0/360010.0/3600Tilling width (mm)750~1050800~1350Tilling depth (mm)≥100≥100Gear shiftingReverse,0,1,2Reverse,0,1,2Driving modeTriangle beltTriangle beltWeight(kg)122131L×W×H(mm)1075×610×8401075×610×840
