• Model NO.：Rake
• Working Way：Rotary
• Type：Tractor
• Model：9ld-3.5
• Type Series：Rotary Rake
• Net Weight：225kg
• Gross Weight：250kg
• Cut Width：3500mm
• Color：OEM Available
• HS：8433400000
• Size：2200X2500X900mm
• Package Size：2.18*1.02*0.92m
• Certificate：CE
• Transport Package：Iron Crate with Film Covering
• Specification：3100*3500*950mm
• Trademark：Guoan
• Origin：China
• HS Code：8433400000
• Production Capacity：500PCS,Month

 ModelTypeWorking widthMatch powerDimensions(mm)WeightWorking speedArm width (m)Connection methodNumber of teeth9LD-2.5spiral2500mm20-25HP2000*2500*900160KG6-12km/h2.5three-point hitch129LD-3.5spiral3500mm25-50HP3100*3500*950225KG6-20km/h3.5three-point hitch18

3.Benefits for buyers

As a tedder: it can spread and flip the green-cut materials and withdraws, for drying evenly.

1) Spread, swath or windrow so crops dry down faster,

2) Tailor your tedding operations to a variety of crops and conditions by varying PTO speed or tine position,

3) Fixed-tine position provides aggressive tedding and is ideal for use in fresh-cut material or crops where leaf and shatter losses are not a concern

4) Cam-operated tine position allows the tine bar rollers to follow the cam track to lift and release crop gently and save valuable leaves

As a rake: it can collect teh dried materials into lines fro balers to pick up and pack them.

1) Precise raking action produces fluffy, uniform windrows that dry evenly

2) Self-centering wheels provide extral maneuverability by allowing you to make sharp turns and back up easily without lifting the machine.


4.Rotary Hay Rake Type

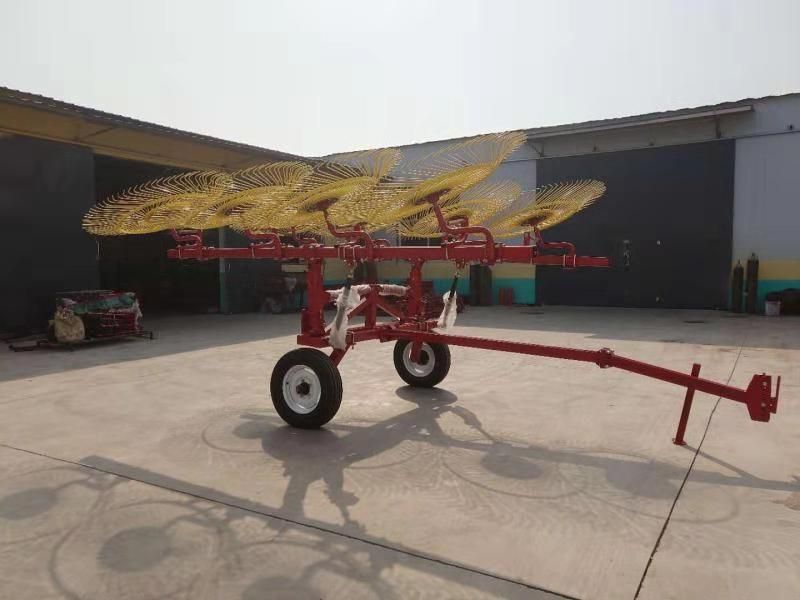

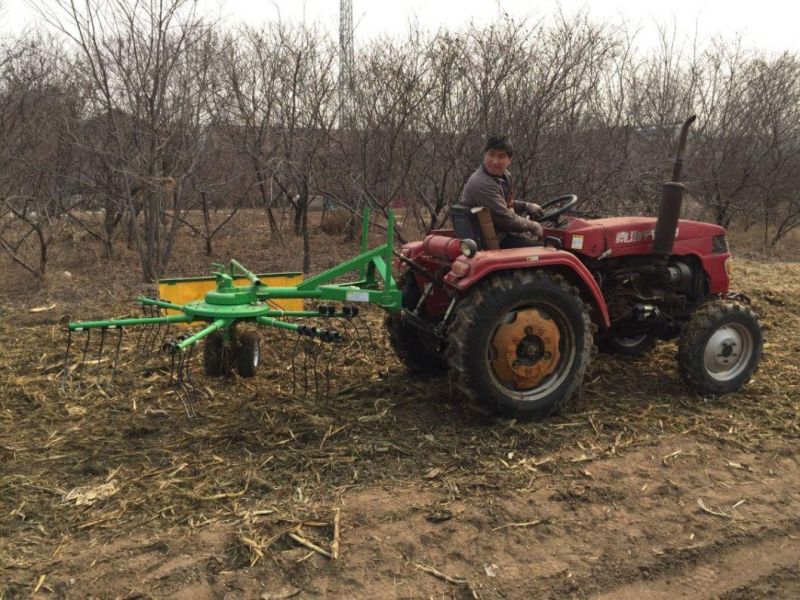

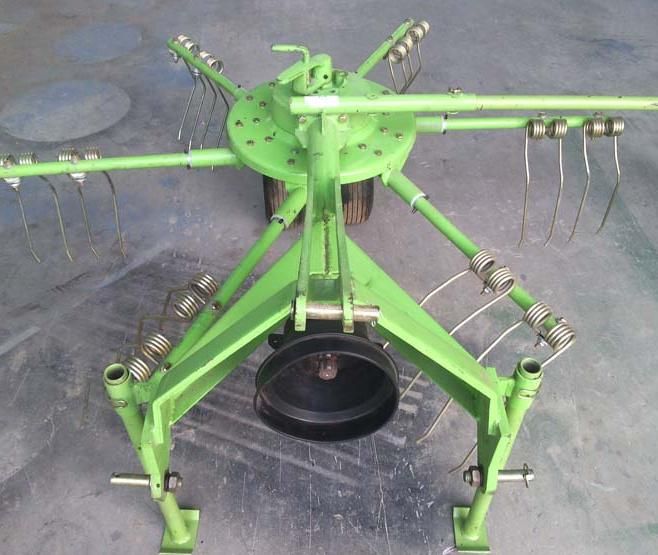

2.5m Rotary hay rake
3.5m Rotary hay rake

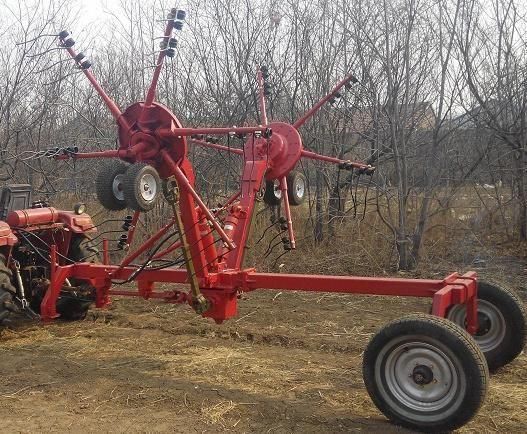

9LD-4.8 double rotating disc hay rake

5.Rotary Hay Rake Details
1)We have 2 models of the Rotary hay rake:
one is 9LD2.5 and the other is 9LD 3.5, which working width is 2500mm and 3500mm, can match tractor of 20-50HP.
2. These rotary rake can rake,ted and revert, use cam structure to invert the grass by one operation.
3. The teeder side also can make the crop to stripe when bundling and storge, improve the working efficiency.
4. All the rakes has special in multi-purpose, raking , teding and reverting; red the grass evenly and clearly, cut crop loss,improve the working effiency; easy operation,reliable performance,and good durable ability.



6.Certificate

Guoan Product has CE certification for each product, we will give each equipment with a CE certification card to ensure that our product quality and reliable.

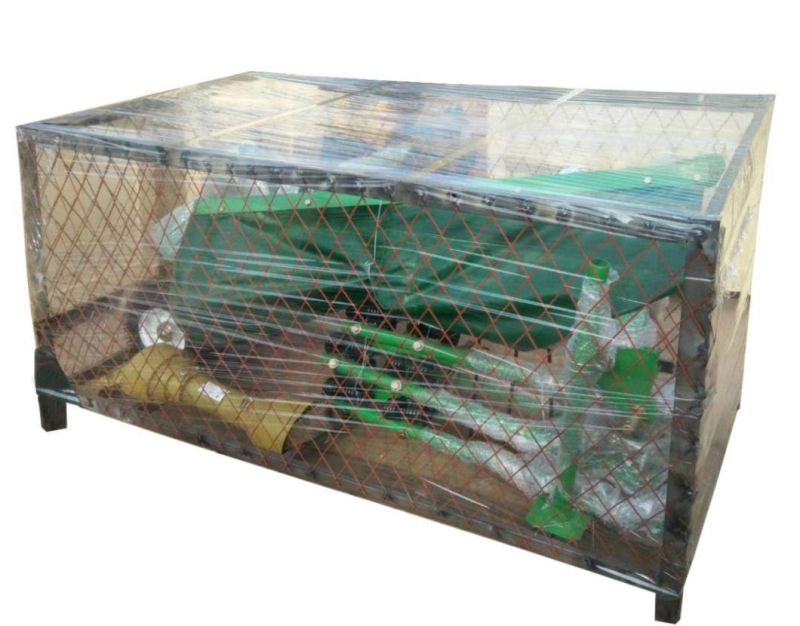

7.Packing & ShippingRotary Hay Rake packed with Iron frame with film outside
1)The rake is a forage harvesting machine that integrates the pasture rakes. After the pasture is harvested, in order to reach the baling conditions as soon as possible, the pasture needs to be sun-lit with a spreader.
2)The spreader can evenly spread the pasture in the field, which facilitates the rapid evaporation of water and facilitates the cutting of the pasture in the bales or Dry before silage. 3)When the moisture of the pasture can reach a state where it can be dried, the crops are gathered into a barn with a rake and smashed into strips in preparation for tying operations. 4)When the rake is working, use the spring teeth to move the crop gently to gather or spread the sun, avoiding the mixed debris or stones in the crop to improve the quality of pasture or green feed.
8.After Sales Service
1) 12 month warrranty of main parts,we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
2) Baler Parts Delivery in 3-5days during warranty period
3) Video of working provided
4) Commen problem soloved in time
5) 24 hours service,Online instant chat to reply in time.

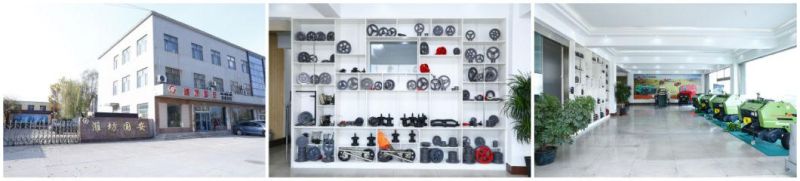

9.Company Profile

Weifang Guoan Engineering Machinery Co., Ltd founded in 2006, is a comprehensive technology company integrating scientific research, production, sales and services. We have 11 years' experiences of mechanical development and production. We have more than 200 employees, 30 R&D engineer, a number of petented technologies, and we have CE and ISO 9001 certification.We focus on product quality. We supply agricultural parts for FOTON and LOVOL about 20 years, FOTON and LOVOL are the biggest agricultural machine company in China. We good at casting with high quality, and all the baler parts are produced by ourselves except rubber, plastic, bearing, pump parts. We have a complete set of quality control system and we can completely control the quality of our baler.

10.FAQ
1) Waht is the difference of the model with F?
Model with F can effectively solve the problem of congestion, improve equipment efficiency. When we pick up the humidity, or longer crop stalks, prone to clogging, affecting the normal use of the customer.
2) Does baler pickup and bundling corn straw?
Yes, Our model with F can pickup corn stalks and wet grass.
3) Weight of bales?
850 makes the bales 15-25kg.
870 makes the bales 20-30kg.
1070 makes the bales 25-35kg.
1090 makes the bales 30-40kg.
4) Which certifications do you have?
CE, ISO 9001.
5) What size of tractor suitable for this baler?
If your tractor will lift 400kg, it will operate our compact round balers.
If your tractor has 18 to 50 PTO HP, then it will operate our compact hay balers.
If your tractor has independent or live PTO you can operate our compact hay balers.

11.Inquiry
If you have any questions, you can send an inquiry to us, and we will answer it in time. Any suggestion or idea you have is an important factor for our continuous progress. Appreciated to your letter.
