• Model NO.：VIC-1200
• Pellet Mill Type：Flat Die Pelletizer
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Short strip
• Warranty：1 year
• Is_Customized：Yes
• English User Manual：Yes
• CE and Other Certifications：Yes
• Warranty Time：1 Year
• Delivery：Within 10 Days After Receive The Paid Deposit
• Power：43.36kw
• capacity：800-1200 kg,h
• Transport Package：Simple Package in Container
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• Production Capacity：1000 Sets Per Year

Basic Info.

Model NO. VIC-1200 Pellet Mill Type Flat Die Pelletizer Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Short strip Warranty 1 year Is_Customized Yes English User Manual Yes CE and Other Certifications Yes Warranty Time 1 Year Delivery Within 10 Days After Receive The Paid Deposit Power 43.36kw capacity 800-1200 kg/h Transport Package Simple Package in Container Specification CE, SGS Trademark VIC Origin China Production Capacity 1000 Sets Per Year

Product Description

1200kg/h feed production line animal feed pellet mill
Introduction of the feed production line:
This complete feed production line is our company's feed processing production line for animal and poultry farmers, farmers, rural cooperatives and feed manufacturers.
It can meet the needs of livestock, cattle, sheep and other full-price compound feed and grass feed.
The complete feed production line includes crushing, mixing, granulating, cooling, screening and packaging and conveying equipment, complete technological process, with powerful functions, can meet the different needs of users.
Working principle:
This feed production line pulverizes various feed materials into powder particles by a pulverizer, and then sent to the mixer through a cyclone dust collector and an airlock by a fan.
The powder that does not need to be pulverized can be directly sent to the mixer through a screw conveyor.
Various raw materials are uniformly mixed in the mixer through the double spiral mixer, and then enter the silo through the screw elevator.
The materials in the silo are conveyed to the granulator by the adjustable speed feeder, and the finished particles are cooled and powdered by the cooling sieving machine.
After screening, the materials enter the packaging machine through a belt conveyor, and then packing pellet into bag and seal the bag to complete the entire production process.

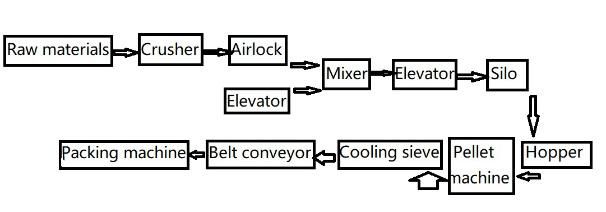

Process Flow chart:
Hammer mill -- cyclone separator -- material silo -- feeder --pellet mill  -- vibrating screen -- Finished Products -- control box

The raw materials are feed stock, cover sawdust, twigs, straw, rice husks, and peanut shells and so on.
The range of diameter of pellets: 6-12mm, with pellet density of 1.1-1.3t/m³ and moisture content of ≤8%;
Total installed power: 43.36KW

2.Part machine date of the feed pellet mill line

No.	Name	Model	Quantity	Power (kw)	Remark
1	Elevator	LS160	1	4	Transfer materials from mixer to silo
2	Silo	1m³	1		Storage raw materials
3	Feeder	LS160	1	0.75	Evenly feed-in
4	Pellet mill	VIC-400	1	30	Frequency control, CYCLO
5	Rotary screener	LQ70	1	5.15	With dust collector
6	Belt conveyor	QB380	1	2.2
7	Air compressor				0.6mpa,discharge rate >>0.17m3/m
8	Pellet packing machine	DCS50	1	1.26
9	Control box (MCC)		1
	Total			43.36kw

 3. Main machine introduction and details of the feed processing line:

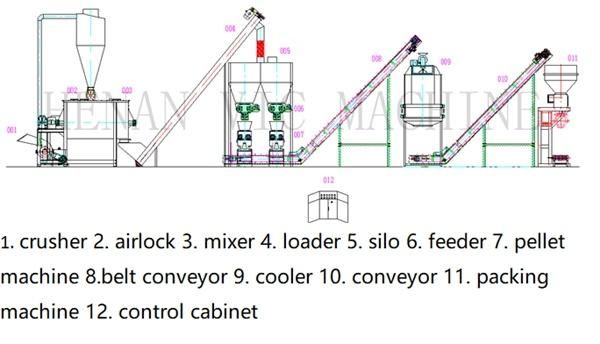

Equipment flow chart

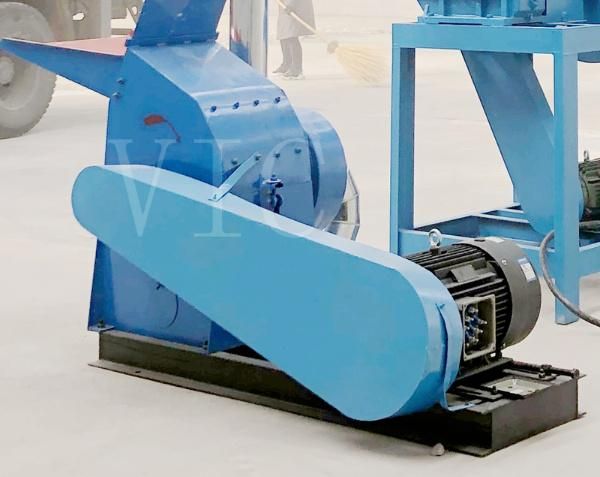

Hammer mill
Introduction:
This crush machine can crush all kinds feed materials and straws into powder directly.
It is small investment, low energy consumption, high productivity, high economic benefit, the crushed sawdust can be put into pellet mill directly.

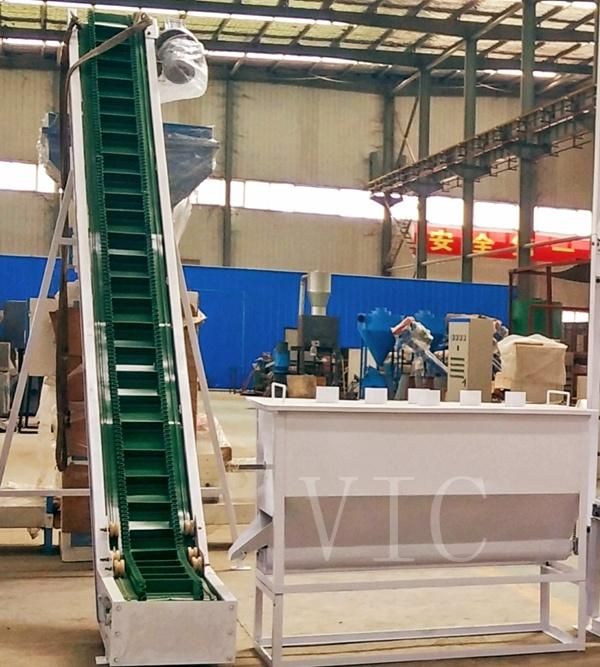

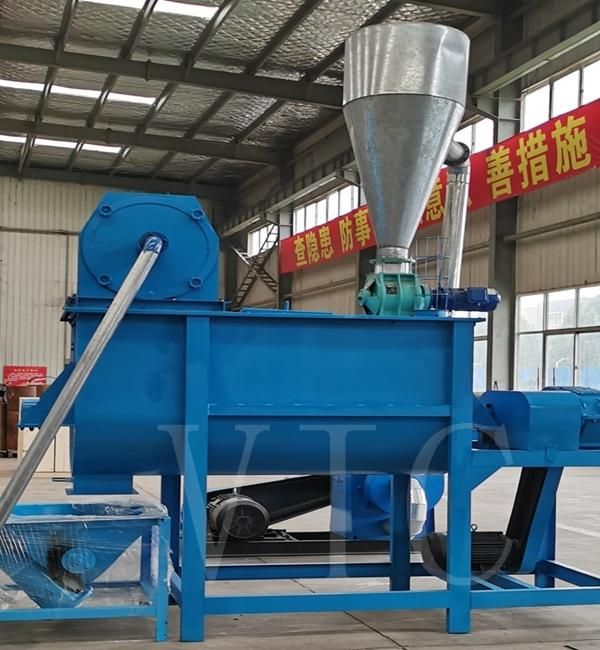

 Mixer with cyclone dust collector and an airlock

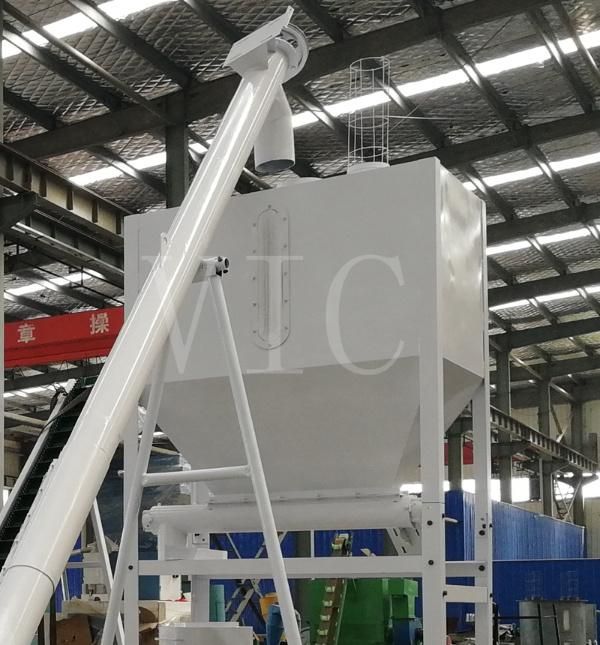

Silo with screw feeder

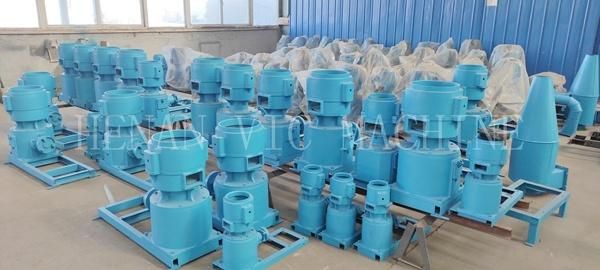

                         Feed Pellet mill

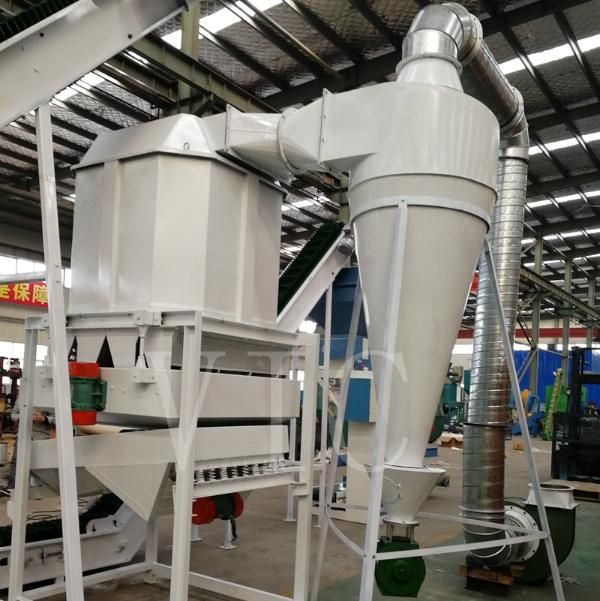

Vibrating screen with cooling system and skirt belt conveyor

Other type cooler

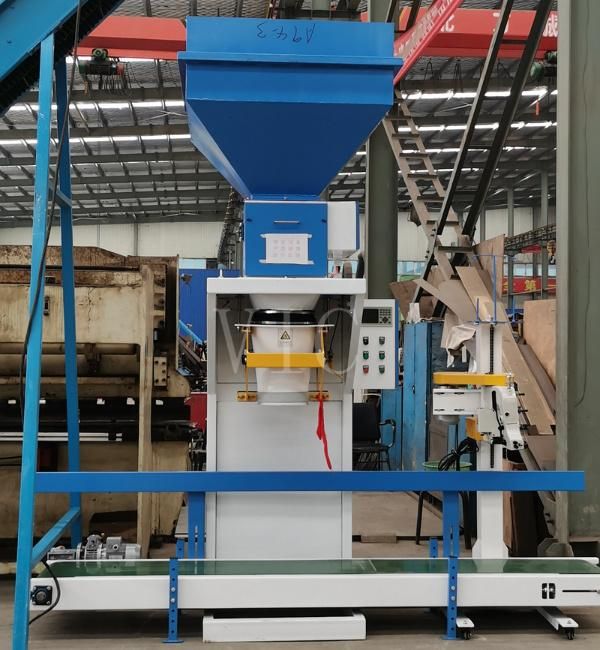

Pellet weighing and packaging machine


Final product

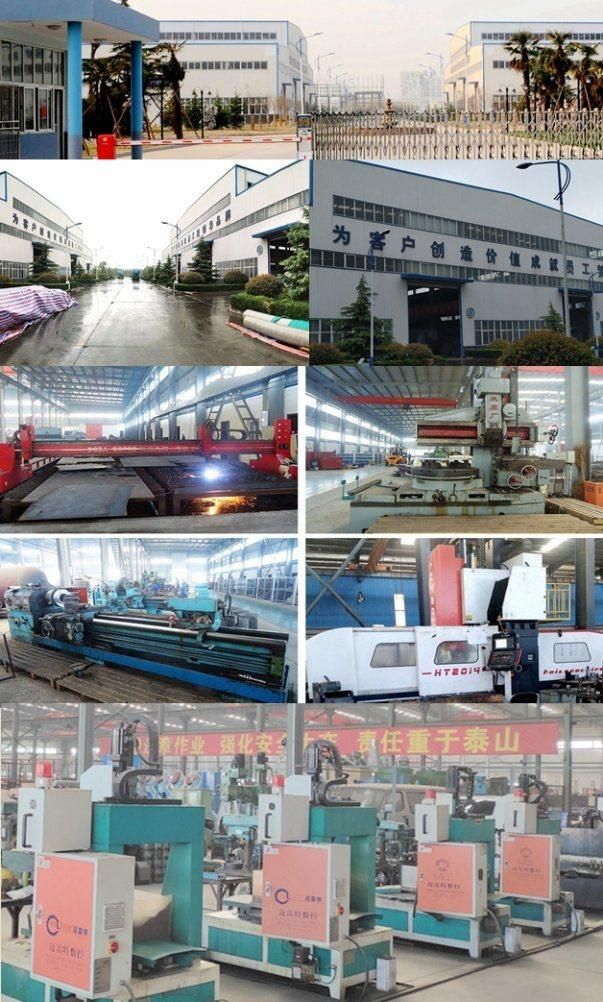

4.Our factory:
