• Model NO.：5XZC-7.5DS
• Feature：Double Air Cleaning System
• Color：Green,White,Optional
• Cleaning Rate：98%
• Customized：Available
• Certificate：ISO
• Transport Package：Plywood Case Package or Mill′s Standard
• Specification：SGS, ISO9001, TUV
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：84371090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. 5XZC-7.5DS Feature Double Air Cleaning System Color Green/White/Optional Cleaning Rate 98% Customized Available Certificate ISO Transport Package Plywood Case Package or Mill′s Standard Specification SGS, ISO9001, TUV Trademark SYNMEC Origin Hebei, China HS Code 84371090 Production Capacity 100 Sets/Month

Product Description

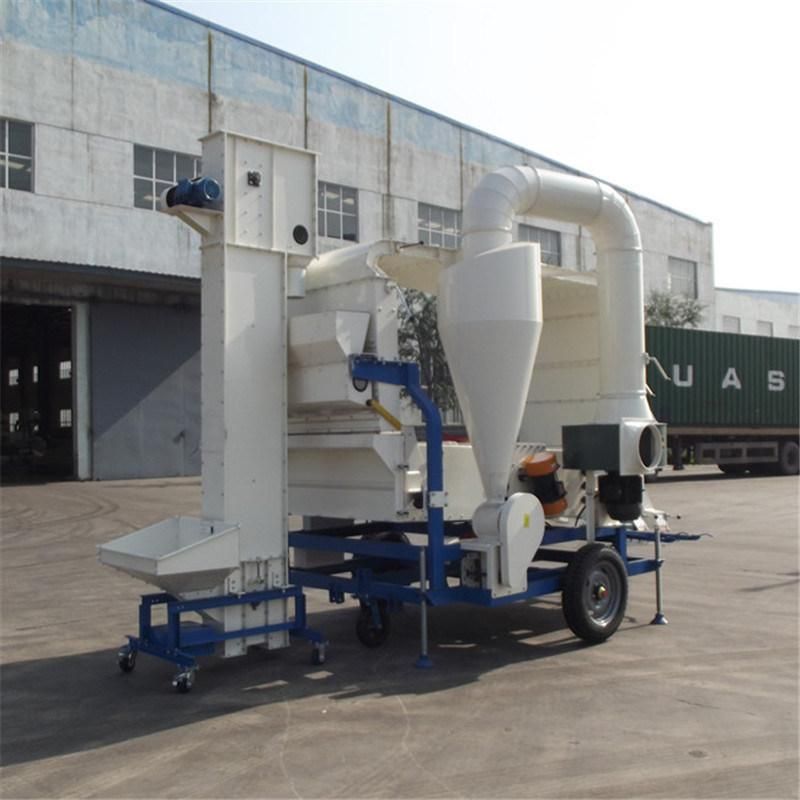

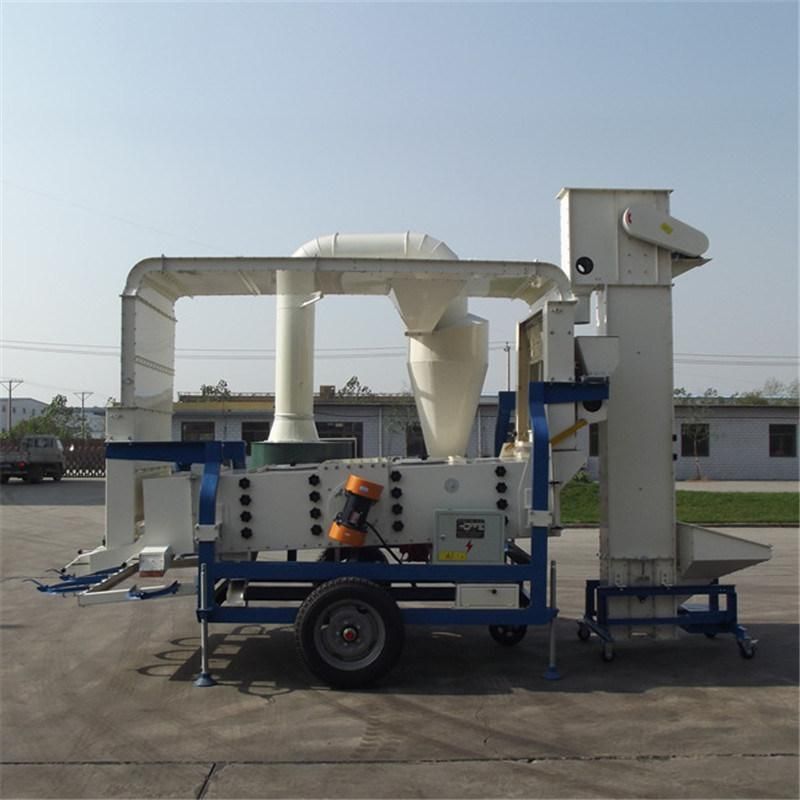

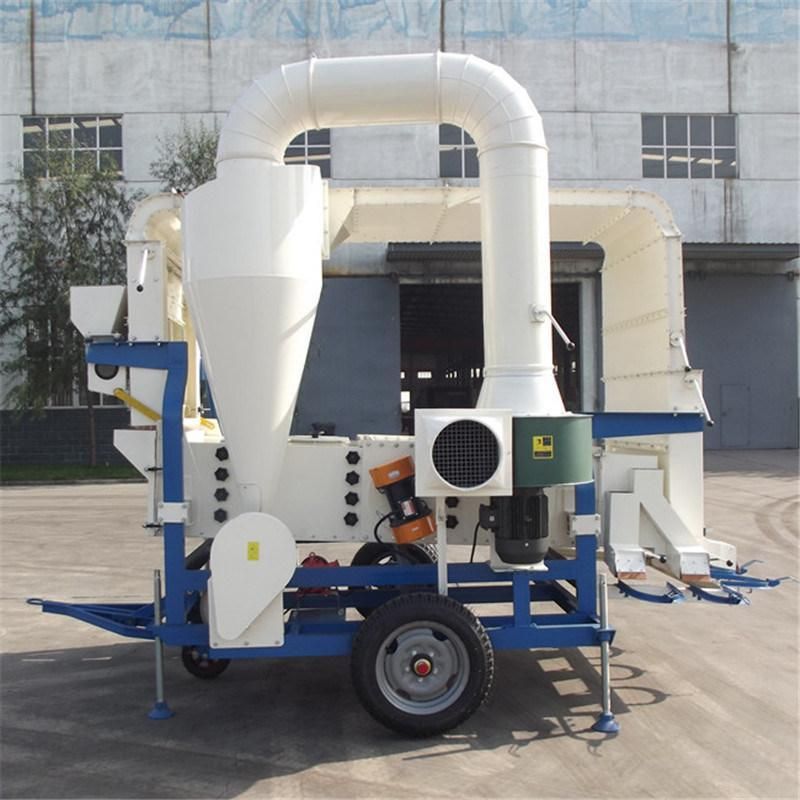

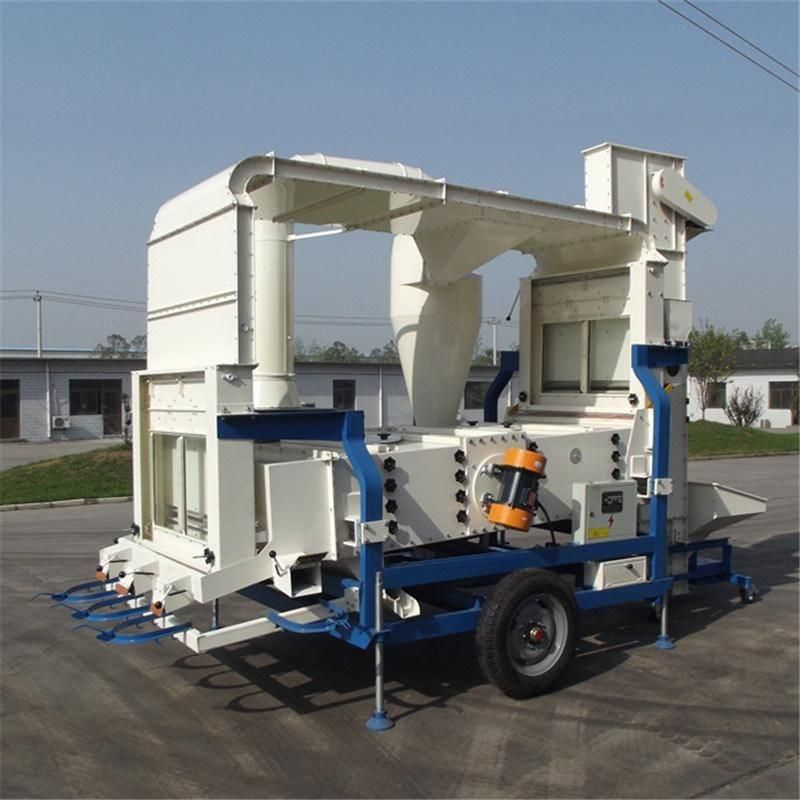

                                 Grapefruit Seed Grain Separator
INTRODUCTION

Grain Seed Processing Machine (5XZC-7.5DS) is used for cleaning and grading seeds, grains, cereals, beans, species and other granule material.

WORKING PRINCIPLE

After fed into machine by bucket elevator, the dust and light impurity were removed by air aspiration system, and then materials enter to sieving trunk which has multi sieve layers, finally the material was graded to different level by size, at the same time all the oversize and undersize impurities were removed.

FEATURES

Customized various sieve's size and amount of sieve layer that make the seed cleaner & grader has wide range of applications and high grading efficiency.


Advantage of The hottest Grain Cleaning and Grading Machine With Double Air Cleaning Machine:
* Double air clean systems
* Cyclone dust separator
* Movable model suitable for plant, field and remote area working
* Work independently mounted elevator
* Favorable price for promising market demand
* High efficiency and capacity
Specification of 5XZC Seed Grain Cleaner:

Model No.	Capacity(T/H)	Power(KW)	Sieve Size(mm)	Weight
5XZC-5DH Seed Grain Cleaner	7.5	10.1	2000×1000	1600KG
5XZC-7.5F Seed Grain Cleaner	7.5	10.1	2400×1250	1800KG
5XZC-7.5DS Seed Grain Cleaner	7.5	9.9	2400x1250	1700KG
5XZC-15 Seed Grain Cleaner	10	10.5	2400×1500	1800KG
5XZC-25 Grain Cleaner	20	19.45	2400x1800	2900KG
