• Model NO.：LX50-S
• Traction Type：Traction
• Drive Type：Chain Drive
• Arbor Configuration：Vertical Shaft
• Certification：ECE, EU, CE
• Warranty：1 Year
• Transport Package：Sea Freight
• Trademark：LuGong
• Origin：Shan Dong China

Basic Info.

Model NO. LX50-S Traction Type Traction Drive Type Chain Drive Arbor Configuration Vertical Shaft Certification ECE, EU, CE Warranty 1 Year Transport Package Sea Freight Trademark LuGong Origin Shan Dong China

Product Description

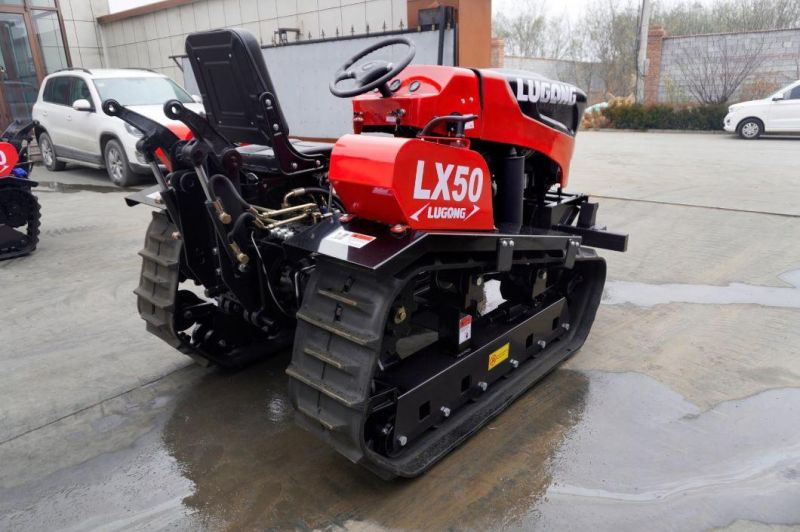

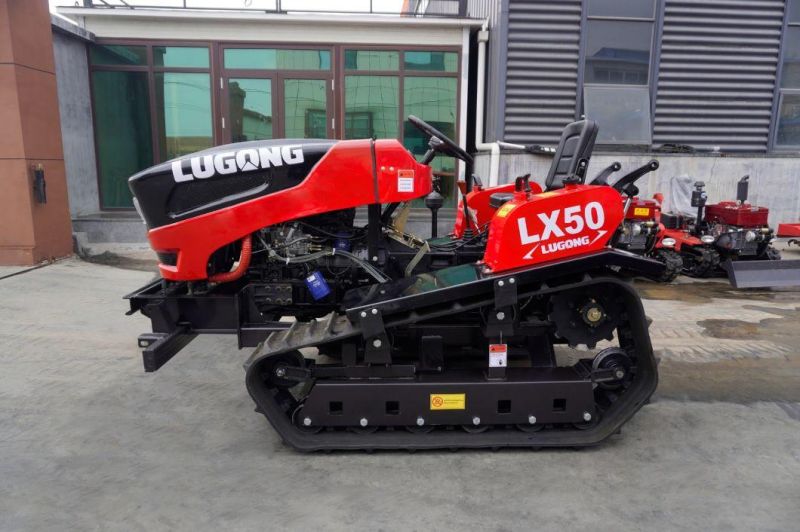

Lugong flood and drought rotary tiller, paddy field tiller, garden tiller.
1. The frame is made of thickened steel plate, which is strong and durable, effectively reducing the vibration generated by the engine and prolonging the life of the machine;
2. The engine adopts a four-cylinder 490 Changchai engine, which is full of power and low fuel consumption;
3. The special gearbox for crawler is formed in one piece, and the rear power output and the walking box are in the same gearbox, so that the walking and the rear power output are more coordinated.
tune. The unilateral power cut-off steering can turn 360° on the spot, making the turning and steering more flexible. There are dual brake systems to make the braking effect
Better fruit. There are 4 forward gears and 1 reverse gear, respectively with high and low gears, a total of 10 gears. Rear power output points are high and low
Gear, 720 rpm at high speed and 540 rpm at low speed.
4. There are strong pressure cylinders at the front and back, which can realize strong lifting and strong falling, and the operation is more stable;
5. The special crawler for paddy fields is adopted, which has a large adhesion area, strong gripping ability, no slippage, no idling, and improves work efficiency. The crawler is thickened and widened to 35
cm, the whole machine weighs only 1.5 tons. The lightweight body, high chassis and wide crawler can truly realize the dual use of water and drought, and the car will not get stuck in the mud.
6. The chassis reinforcement price is as high as 37 cm to enhance the passing performance of the machine;

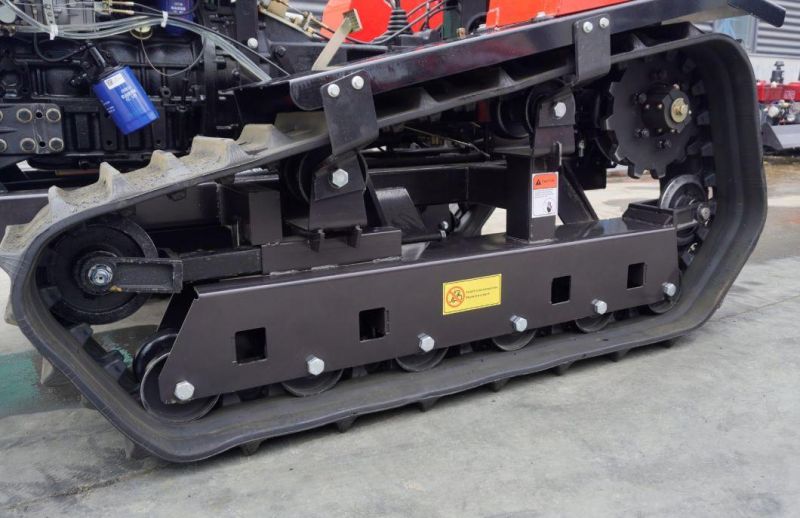

7. The single side adopts the design of installing 1 driving wheel, 6 supporting wheels, 2 top wheels, and 1 tensioning wheel, and using 6 supporting wheels can effectively
The weight of the machine is distributed to each wheel, thereby reducing the weight of the wheel and making the wheel more durable and wear-resistant;
8. The turning of the machine adopts unilateral hydraulic cut-off power, which reduces the wear on the brake (disc and pad) and prolongs the service life;
9. The sheet metal parts of the machine are made of thickened steel plates above T4, which are strong and durable, not easy to deform, and the paint color is made of high-quality spray powder, which has good adhesion
Large and weather resistant.

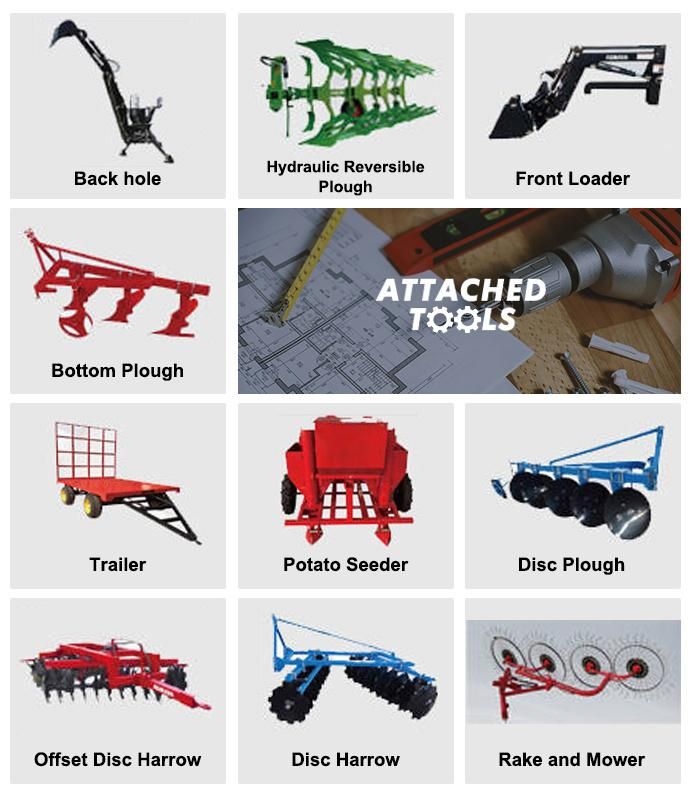

10. The rear-mounted suspension (with suspension) is compatible with all wheeled tractors and agricultural machinery;
11. The hydraulic system of this vehicle is hydraulic transmission oil, which is resistant to high temperature and is equipped with an 80-mesh filter, which can effectively filter iron filings and impurities in the transmission oil. Refill fluid
The pressure oil radiator reduces the temperature of the transmission oil during use to avoid damage to the gearbox and control failure;
12. Install a water tank radiator to increase the water tank capacity, which can effectively reduce the high temperature generated by the engine during use;
13. The air filter is a dry filter, which can filter a large amount of dust and mud. After each work, clean the air filter and blow the dust inside;
14. The diesel tank has a large capacity and a long battery life;
15. It is suitable for small and medium-sized paddy fields, swamps, muddy fields, biased fields and other harsh environments. It is especially suitable for small and medium-sized farmers and growers.Release the labor force and greatly improve the operation efficiency
1. With a 50-horsepower engine, a 50-horsepower Changchai engine is optional. The patented product of variable speed gearbox, reliable performance, there are four forward gears
One gear with high and low speed, one reverse gear with high and low speed, a total of eight forward gears, with neutral and reverse. The rear output of the gearbox has two gears
Speed, low speed 540 rpm, high speed 720 rpm.
2. The steering of the machine adopts hydraulic forced unilateral brake steering, and the steering process has its own cut-off power, which can effectively protect the gearbox and braking system and make it
More durable. The machine has rear output, suspension and strong lift, and can be matched with wheeled tractor implements. An optional bulldozer blade can be installed in front of the fuselage.
As well as the loader bucket, it truly realizes a multi-purpose machine, and the agricultural engineering is correct.
3. The design of the belt tractor has better adaptability than the wheeled type, the chassis is low, the stability is good, and the crawler adhesion coefficient is large, which can effectively resist tilting and
Downhill slope. The crawler rotary tiller is an all-terrain operation machine, which has the mobility of turning and steering in place, and has stronger climbing and off-road performance.
