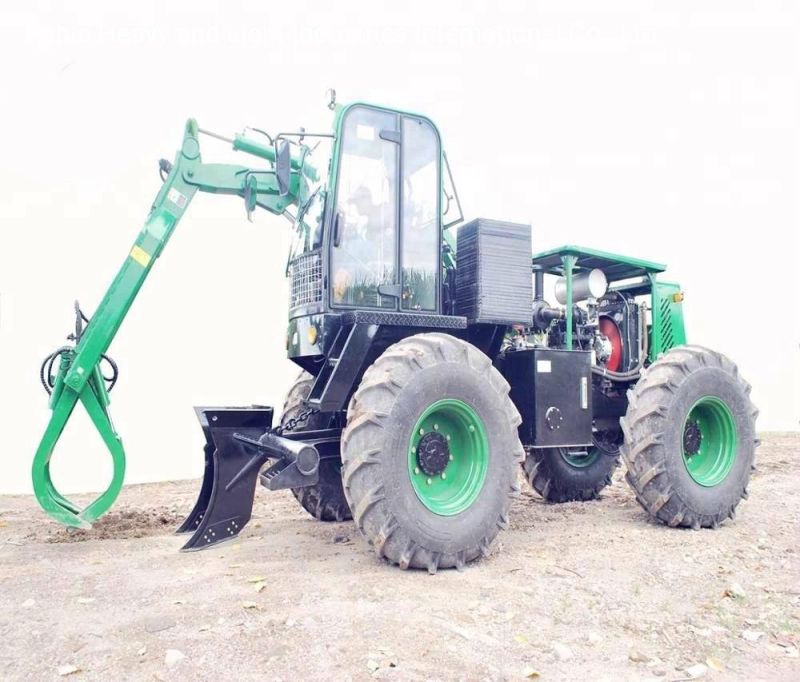

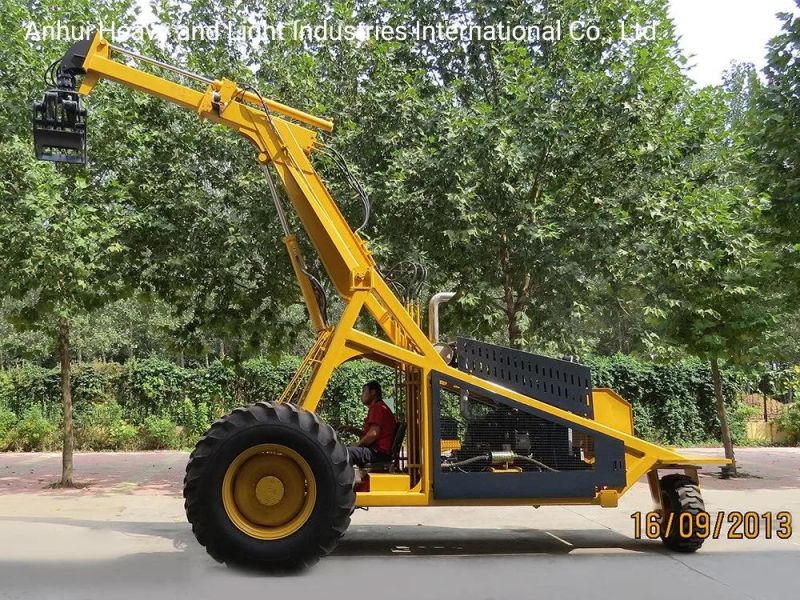

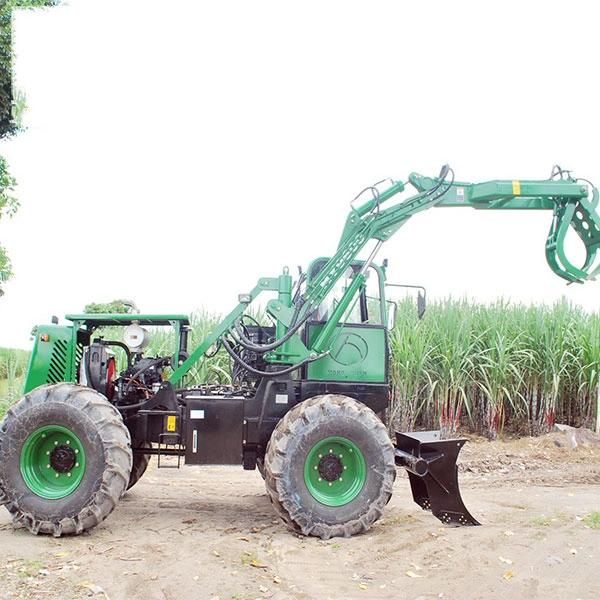

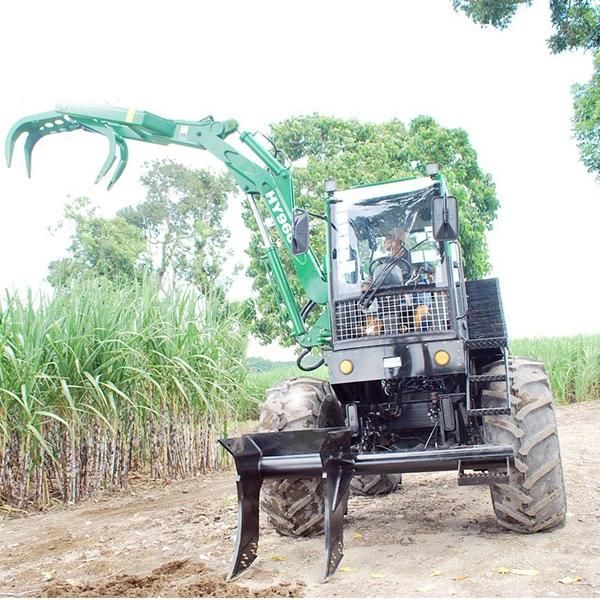

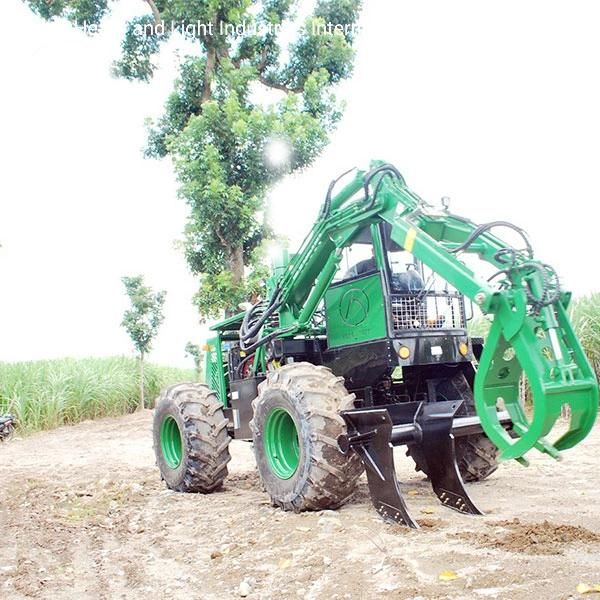

Small Three Wheel Logger Sugar Cane Grabber Loader
Anhui Heavy and Light Industries International Co., Ltd.- After-sales Service:Provide
- Type:Portable Harvester
- Application:Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
- Power Source:Diesel
- Harvest method:Vibration fall
- Drive Type:Vee belt
Base Info
- Model NO.:3 wheel logger
- Transmission:Soft Shaft
- Portable Harvester Type:Backpack Type
- Certification:UL, QS, GMP, ISO9001:2008, CE
- Color:Green
- Condition:New
- Application Field:Agriculture, Livestock, Aquaculture, Forestry
- Rated Power:100 HP
- Total Weight of The Machine:5080kg
- Maximum Grab Capacity:1000kgs
- Work Efficiency:2000kg,Min
- Trademark:H&L
- Origin:China
- HS Code:8429521200
- Production Capacity:50000,Year
Description
Engine model 4BT3.9-C100
Rated power: 100 HP
Engine Brand: Cummins
Maximum tool fulcrum height when the cantilever is fully extended: 5470mm
Total weight of the machine: 5080kg
Maximum grab capacity: 1000Kgs
Work efficiency: 2000kg/min
Working frequency: 2 times/minute
Hydraulic system working pressure: 31.5Mpa
Maximum flow: 63ml/r/63ml/r
Slope: 25%
Maximum traction force: 29KN
Walking speed: <10km/h
Dimensions (length × width × height): 5900*2550*3300mm
The smallest. Ground clearance: 460mm
Tread: 2650mm
Wheelbase: 2550mm
Tires: 18.4 (front double) 400-60-15.5 (rear tires)

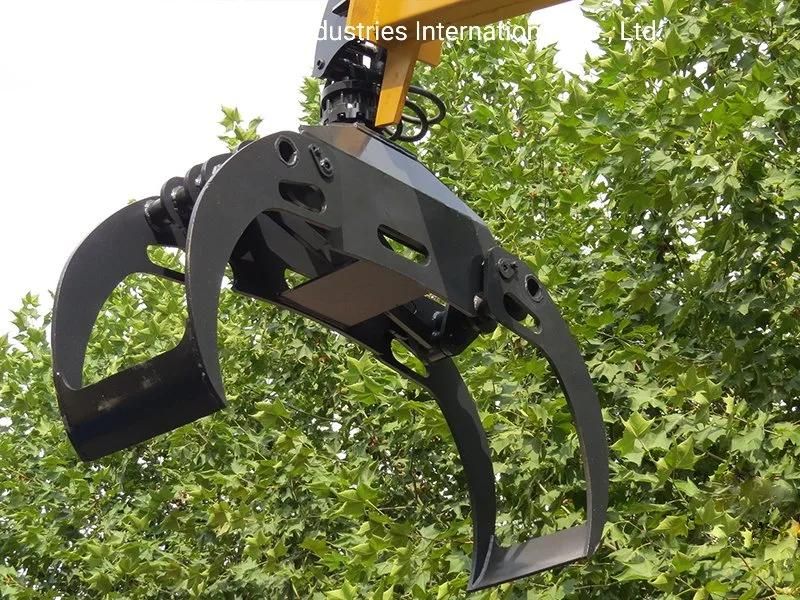

Grab: 1425mm
Our Advantages
OUR SERVICE
1)Professional fast response mechanical engineers and electrical engineers provide suitable solution method for you all around the world.
2)Engineers available to reach machinery overseas job site at any time required.
3) Technical Support of installation/training supplied to help customers to earn most profits with our machinery.
4) All variety of spare parts available to support the customer 24h*7days for the daily maintenance/repair purpose etc.
OUR PRICE
We work as the leading VIP dealers of various famous Chinese construction machinery manufacturers and are constantly treated with best price policy which is only provided to special internal high level permission.From numerous comparison and feedback from clients.Our price is always more competitive and much favorable than the customer buy directly from manufacturers.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
