• Model NO.：YZCL
• Origin：China
• HS Code：84792000
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. YZCL Origin China HS Code 84792000 Production Capacity 3000PCS/Year

Product Description

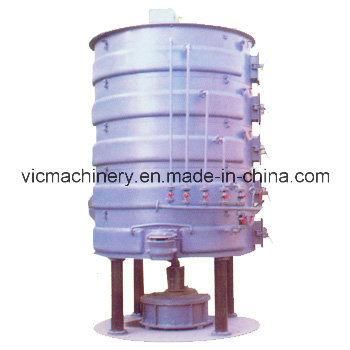

                                                       YZCL Steam Cooker

Application:
Cooker is one of the main equipment of oil processing, its mainly used to fry, wet, soften and heating the raw oil materials into cooked flakes for better oil output and oil quality.

Technical data:
Model: YZCL COOKER
Capacity: 10-200t/d
Power: 5.5kw-55kw
Cooker dimension: 120-300cm
Working pressure: ≤ 0.54Mpa
Heating area: 7.6-69m
Temperature: <168 degree
Working medium: Steam or heat conducting oil.

Model	120×3	150×3	150×5	180×5	210x5	240x5
Capacity(t/d)	10-15	15-30	20-40	30-60	60-80	90-120
Power(kw)	5.5	11	18.5	22	30	37
Main shaft speed(r/min)	30-32	30-32	30-32	30-32	30-32	30-32
Working pressure	0.54Mpa	0.54Mpa	0.54Mpa	0.54Mpa	0.54Mpa	0.54Mpa
Diameter(cm)	120	150	150	180	210	240
Weight(kg)	2300	4500	5850	7000	9400	12000

More pictures

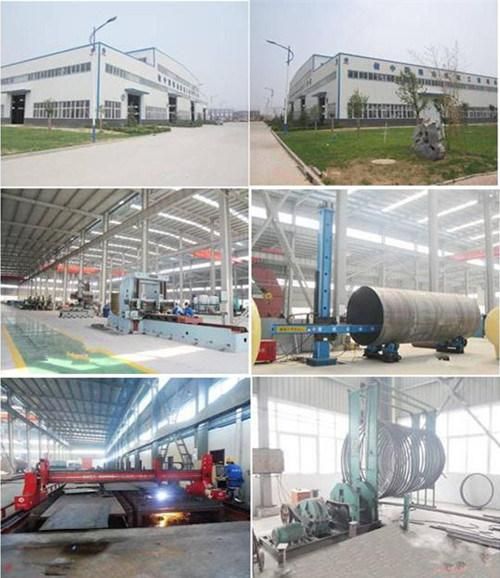

Factory view
