• Model NO.：FDSP
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Output：3-5t,H
• Application：for Making Pellet and Mash Feed
• Cleaning：Crushing-Mixing-Pelletizing-Cooling-Sieving
• Feed：for Livestock, Poultry Fee
• Transport Package：Pallet
• Specification：CE, ISO, SGS
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：84361000
• Production Capacity：3-5tph

Basic Info.

Model NO. FDSP Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Output 3-5t/H Application for Making Pellet and Mash Feed Cleaning Crushing-Mixing-Pelletizing-Cooling-Sieving Feed for Livestock, Poultry Fee Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 84361000 Production Capacity 3-5tph

Product Description

Fish Feed Processing Line Fish Feed Production Line Used Extruder for Sale
This machine is also called poultry feed machine,poultry feed manufacturing machine,poultry feed making machine,poultry pellet feed machine,poultry feed plant,poultry feed pellet making machine,poultry feed processing equipment,poultry feed production machine,etc.

Application:Making pellet,mash feed
1.  Poultry & livestock feed Processing engineering

Feeds for animals in various growing period;Different capacity, varied from 0.5 to 10TPH per line;
Meeting the standards of different countries and regions.

2.  Premix  feed Processing engineering

Specialized equipment and process flow;Effectively controlled cross contamination, residue and dust emission;Different capacity, varied from 0.5-10 TPH per line.

3.  Pet-food  feed Processing engineering

Specialized extruder, dryer and coater adopted;Different capacity, varied from 1.5 to 5 TPH per line.








Technical parameter:


Model	Total Power (kw)	Output (t/h)	Floor Area (m) (L× W ×H )	Main Equipment
SKJZ1800	43.5	0.5-1.5	6 × 4× 8	SFSP50.SLHY0.4,SZLH25.SNSZ80

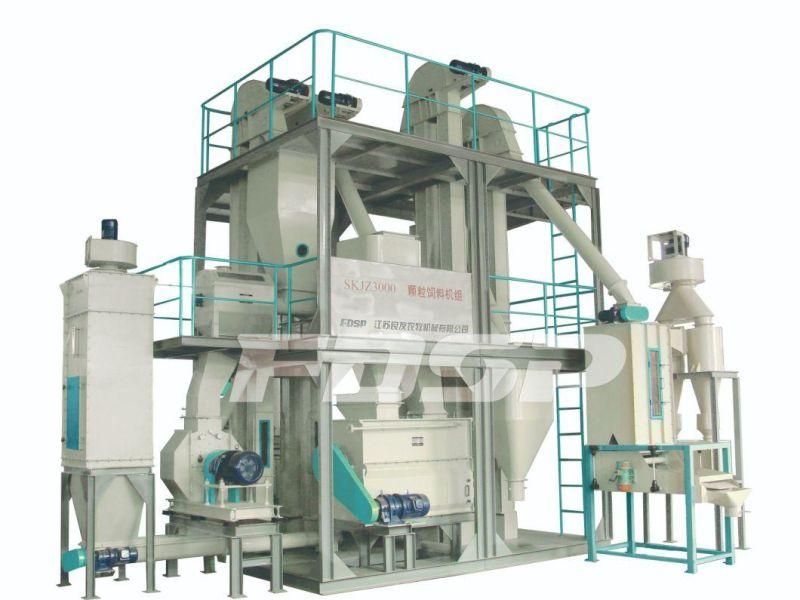

SKJZ3000	80	Mash:3-4 Granule:0.5-2	8× 6 × 8	SFSP568 22kw, SLHY0.6,SZLH25,SNSZ11×11

SKJZ3800

136

2-4

8.5 × 7.5 × 11

SFSP568 30kw,SLHY1, SZLH320,SKLN2.5, SSLG15×80,SFJH802C

SKJZ4800	145	3-5	9.5 × 8.5 ×12	SFSP568 30kw,SLHY1, SZLH320,SKLN2.5, SSLG15×80,SFJH802C

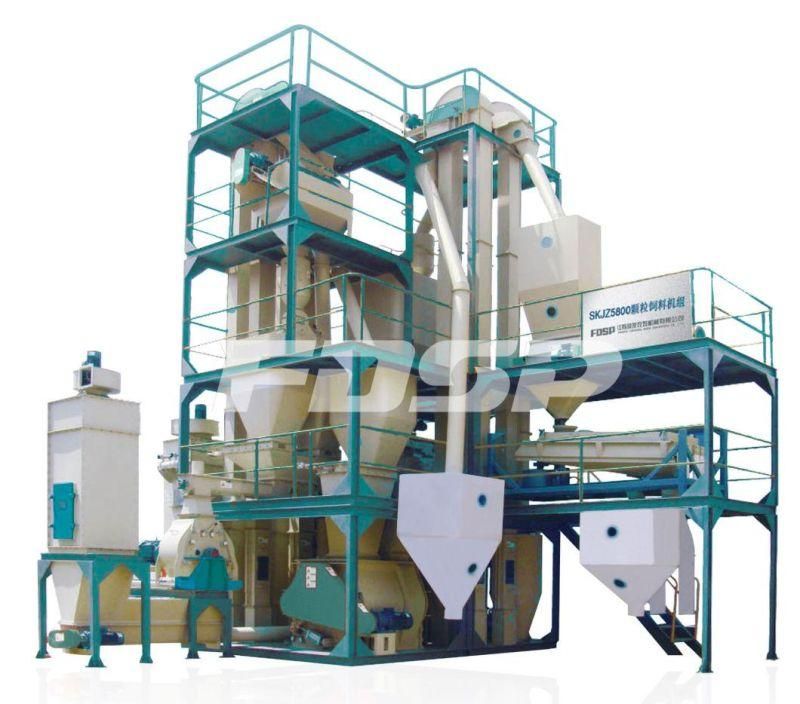

SKJZ5800	191	4-5	10 × 9× 13	SFSP668 55kw,SHSJ1, SZLH350 55kw,SKLN2.5, SSLG15×100,SFJH100×2C


 Raw material: all kinds of cereal like soybean, maize,and grass like alfafa,etc
Complete feed pellet line show
 Raw material receiving and pre-cleaning---crushing---mixing---pelleting---cooling--(Crumbling)--sieving---packing


Animal feed production line is made up of below several sections:
Cleaning process as your requirement
To clean the material in order to ensure the quality of the products and the regular working of all equipment.


(1) crushing process
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.


(2)mixing process
The task of this section is:
A. evenly mix different materials into complete powder feed.
B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.

(3) pelletizing process
The task of this section is to pelletize the powder feed to required sizes.



Cooling Process
After the pelletizing process,the temperature of the feed pellet is about 60/80 degrees Celsius,with a moisture content of about 15%.A Cooler must then be used to reduce the moisture content of the pellets to about 3/4%,thereby making the pellets easier to store.
(4). Sieving Process
It is for screening and classifying of mash or pellet feed.


(5). Packing Process

Independent packaging system, manual packing ,optional automatic packing like following, high precision.10-50KG/bag, 800-1000kg per bag.

Electrical  Control System for SKJZ
the mimic panel is adopted. All machines can be interlocked and safety, alarm device is available.The operation is simple and convenient


Finished product:mash and pellet

Typical lines: SKJZ1800, SKJZ3000,SKJZ3800,SKJZ4800,SKJZ5800


FAQ
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.

2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.

3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.

4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.

5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
