• Model NO.：5XZS-10DS
• Power (Kw)：15.75
• Weight：2900kg
• Sieve Size L*W (mm)：2400*1500
• Dimension L*W*H(mm)：6500*2200*3600mm
• Remarks：with Maize Thresher
• Factory Location：Shijiazhuang City, Near Beijing City
• Transport Package：Wooden Case or Container
• Specification：ISO9001: 2008, SGS, TUV, SONCAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：50sets,Month

Model

Capacity

(ton/hour)

Power

(KW)

Weight (kg)

Dimension

Length*Width*Height (mm)

Remark

5XZS-10CDS

10

23.25

3200

6500*2200*3600

With wheat huller

5XZS-10DS

10

15.75

2900

6500*2200*3600

5XZS-20DS

20

21.49

2600

4730*2500*3830

Introduction:

The 5XZS-10DS Seed Cleaning & Processing Machine`s function: wheat hulling (optional), air cleaning, vibration sieve pre-cleaning, gravity separating and vibration sieve fine cleaning.

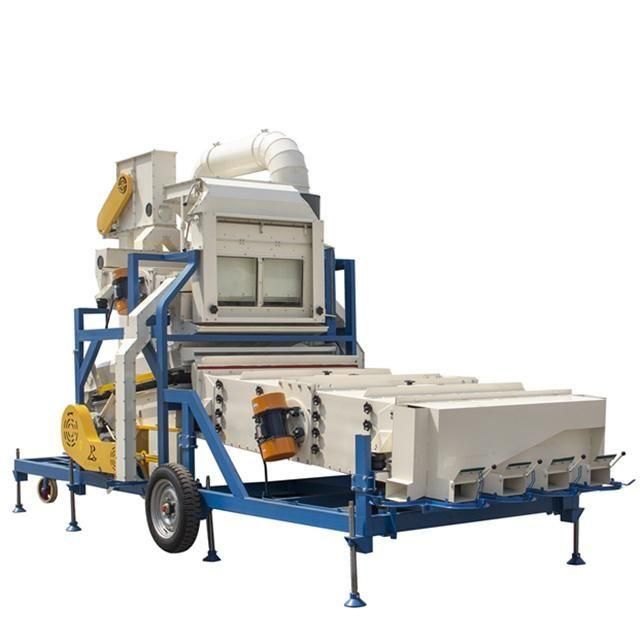

5XZS-10DS Seed Cleaning & Processing Machine

Wheat are fed into wheat huller (optional) to shell, then lifted up by bucket elevator, enter to small vibratory sieving trunk for quick removing small, large impurity, and light impurity, then wheat enter to gravity table for removing the bad seed (partially eaten, immature, insect damaged, sick seed, etc. ). Finally wheat enters to the vibratory sieving trunk for removing large & small impurity again, also grading seed to different size ranks. Wheat from outs becomes seed which can be sowed in ground directly.
