• Model NO.：WSTk series
• Portable Harvester Type：Side Hanging Type
• Certification：ISO9001:2008
• Color：Red
• Condition：New
• Application Field：Agriculture
• Capacity：200 Sets Per Month
• Key Word 1：Sheller Machine
• Key Word 2：Shelling Machine
• Key Word 3：Peanut Shelling Machine
• Function：Remove Peanut Shell
• Suit for：Peanut(Groudnut) Threshing
• Usage：Shell Hard Walnut
• Raw Material：Carbond Steel
• Feature：High Efficiency
• Performance：Energy Saving Easy Operation
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：400-1500kg H

Basic Info.

Model NO. WSTk series Portable Harvester Type Side Hanging Type Certification ISO9001:2008 Color Red Condition New Application Field Agriculture Capacity 200 Sets Per Month Key Word 1 Sheller Machine Key Word 2 Shelling Machine Key Word 3 Peanut Shelling Machine Function Remove Peanut Shell Suit for Peanut(Groudnut) Threshing Usage Shell Hard Walnut Raw Material Carbond Steel Feature High Efficiency Performance Energy Saving Easy Operation Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 400-1500kgH

Product Description

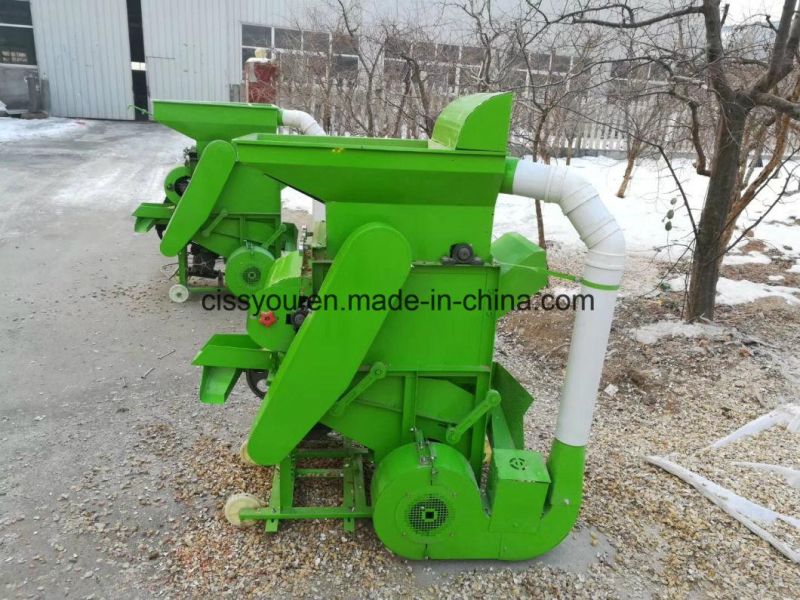

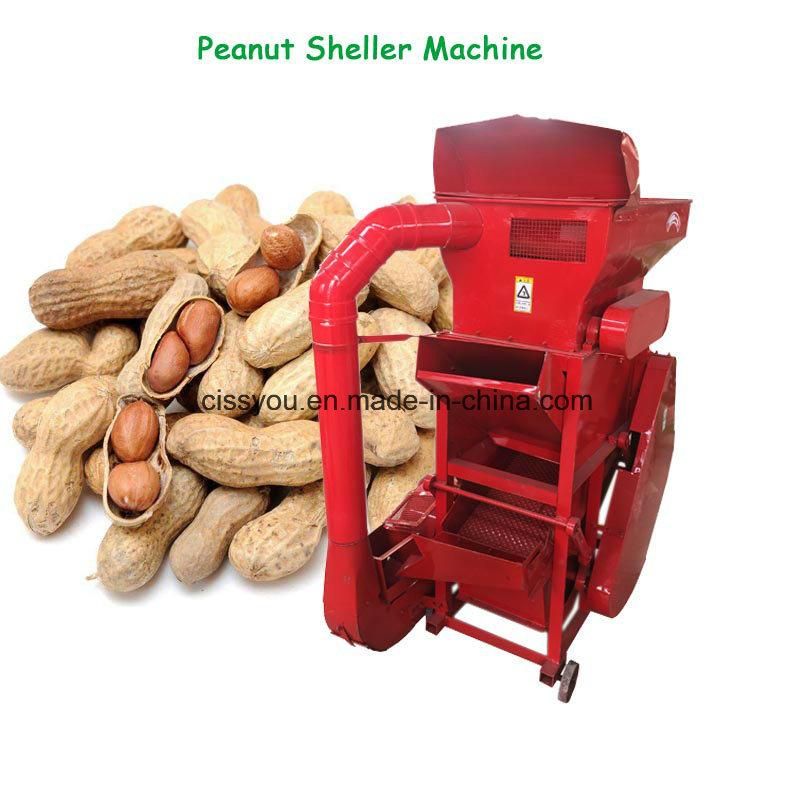

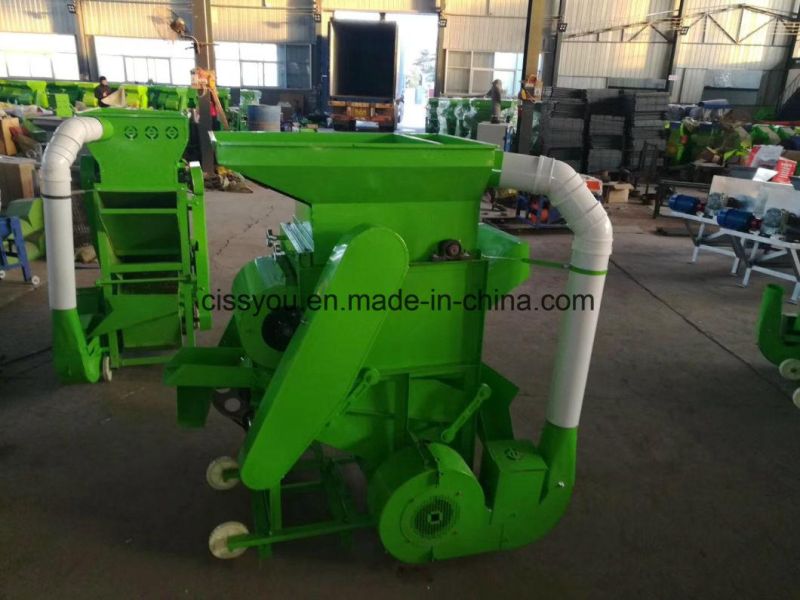

Different model of peanut groundnut shell breaking shellershelling machine

The Feature of the peanut sheller machine:

Feature:

1.be used for shelling most kinds of peanuts

2. the conveyer part is effective and economical

3. Low breakage rate and smallest loss

4. High efficiency with low power consumption

5. Safe and easy operating

6. Easy repair and maintenance

7. Compact structure and beautiful shape

8. The seeds can be used for food or the raw materials for the oil plant

9. The shell could be pelleted as fuel.


Working principle
peanut/groundnut sheller is a middle type peanut processing machine, it is easy to operate & install,
easy to move, low cost, good cleaning performance. May process 400-500kg/h, productivity is 280-320kg/h. It can be matched with 2.2kw 220v, 50hz electric motor, also can be matched with 8hp air
 cooling diesel engine, for rural areas or African market where the electricity not so available.






 Introduction of peanut sheller(single model):
The machines are used for shelling the hard cover to get the peanut seeds and its hard cover, the seeds is used for the food or the raw materials for the oil plant; The cover could be pelleted for the fuel.


Type	WSTK-1500	WSTK-1000	WSTK-600	WSTK-400
Rotary drum length	90	65	45	30
Rotary drum rolling speed	220r/min	227r/min	270r/min	305r/min
Capacity	1500 kg/h	1000 kg/h	600 kg/h	400 kg/h
Motor	11kw	7.5kw	4kw	2.2kw
Air blower speed	1067-1300r/min	1064-1194r/min	987-1252r/min	1712-1561r/min
Screen frequency	575/min	574/min	596/min	508/min
Breakage	<3%	<3%	<3%	<3%
Clean rate	>98%	>98%	>98%	>98%
Noise	<85 DB	<85 DB	<85 DB	<85 DB
Size	2200*1575*2300mm	1945*1320*2200mm	1470*1020*1650mm	1291*652*1720mm
Weight	1020kg	760kg	340kg	190kg
