• Epidemic Prevention Equipment：Medicated Bath Equipment
• Blade Type：Curved Teeth
• Computerized：Computerized
• Certification：ISO9001:2008, CE
• Condition：New
• Warranty：1 Year
• Transport Package：Standard Export Package
• Trademark：U-Best
• Origin：China
• HS Code：84362900
• Production Capacity：1000000

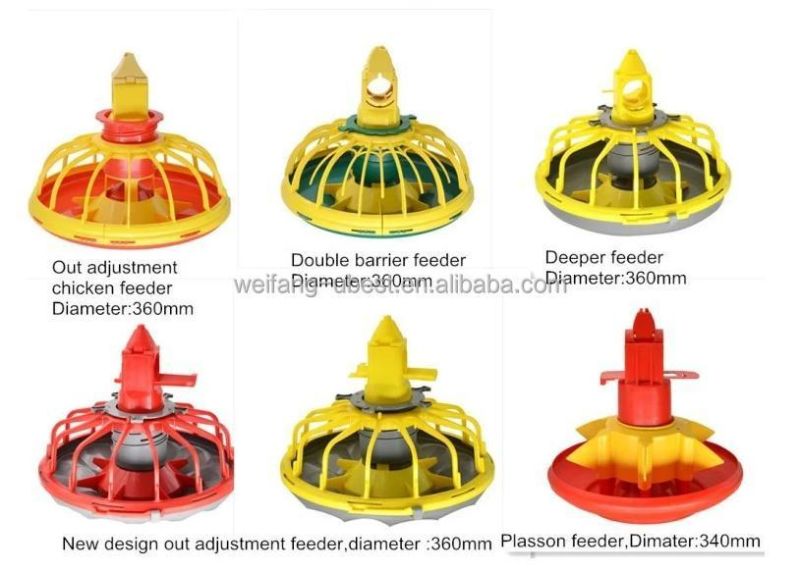

Our automatic feeder for chicken specifics:

Basic information

Material: PP--Polypropylene

Grilles: 14 grids

Diameter of pan bottom-330mm

Net weight: 560g/pc

a. Different gears of feed amount, meeting eating demands of different period chickens.

b. Accurate and quick to adjust feed flow, the principle is to catch two ears in the inner and pull them out adjust up and down.

c. The pan bottom can be disassembled on the ground, which can be used for day-old chicks.

d. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time.

e. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding.

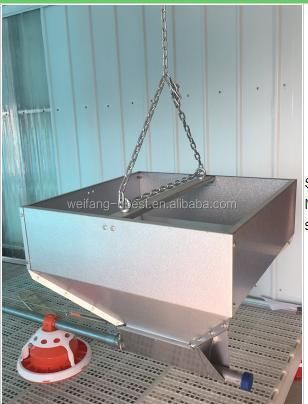

Vice hopper


Size: 70Kg, 90Kg

Material:hot-dip galvanized sheet, thickness:1mm

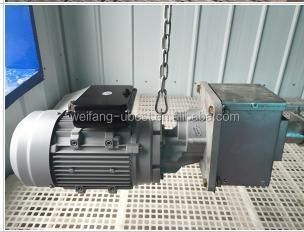

Drving motor

Taiwan brand                   Power:0.75Kw/1.1Kw/1.5Kw,

Voltage:380V/220V/others Three-phase/Single-phase,

Frequency: 50Hz, AC current

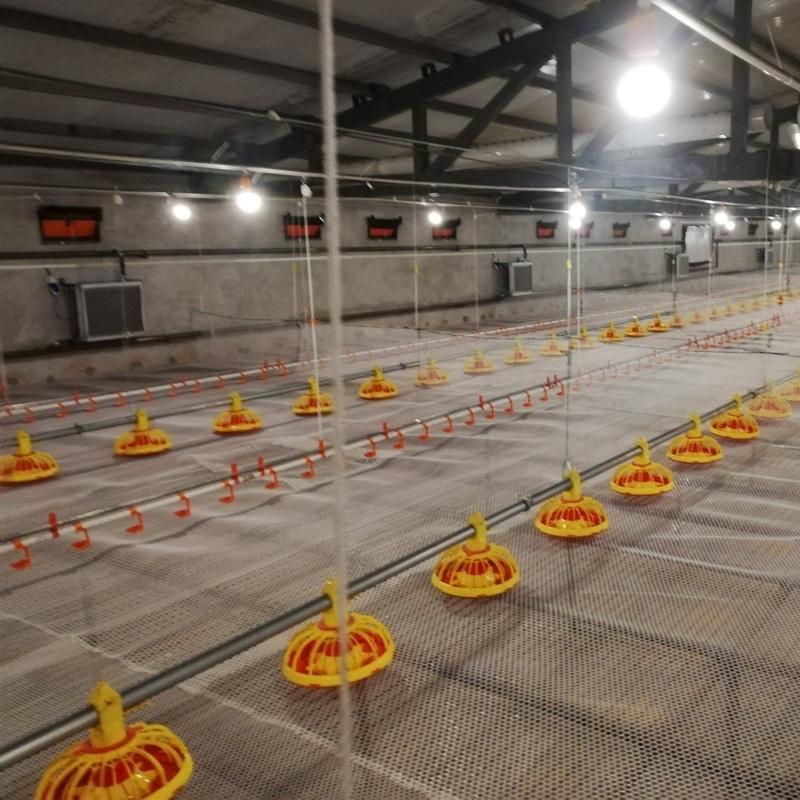

Pan feeding lines

Feed pipe:

Diameter of feed pipe: Φ45mm

Material: hot-dip galvanized sheet pipe with >275g/m2 zinc coating amount

Auger:

imported from South Africa, feeding ability: 450Kg/h

Feed pan:

Please refer to the above information.

Feeding line specification:

4 feed pans/3 meter, 3 feed pans/3 meter

Feed pan capability:

50-55 broilers/feed pan

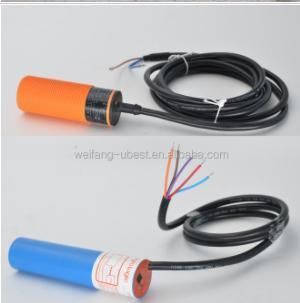

Sensor

imported from Germany   time delay range: 0-2hours

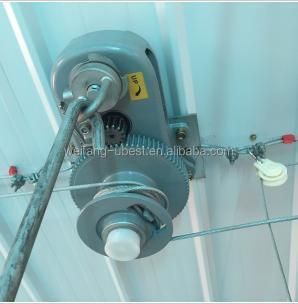

Lifting&suspension system

The height of feed pan is very important for chicken growing, it is very convenient to adjust the feeding line height by winch. The best height is:

chicken back and feed pan up grill are at the same level.

Anti-perching device

It prevents chickens from staying on the feeding line for too long.

Why Using This System?

-Uniform distribution of feed

-Easily adjusted

-Easy to reach the best height

-Easy to wash or disinfect

-Easy to achieve good conversion rate

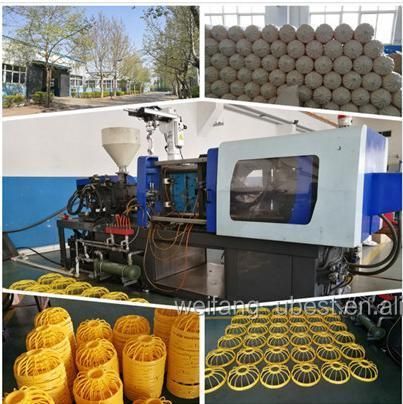

We are professional manufacturer and supplier of complete automatic poultry farming equipment for chickens,for broiler/ breeder /layer ground type&flooring type chicken raising.


We sincerely look forward to establishing business relationships with customers from all over the world based on mutual benefits. If you have any question or requirement, please feel free to contact with MS. Nancy Meng
