• Model NO.：ZAPHUE-FD
• Usage Life：More Than 15 Years
• Transport Package：Pallets or Cartons
• Trademark：ZAPHUE
• Origin：China
• Production Capacity：5000,Month

Basic Info.

Model NO. ZAPHUE-FD Usage Life More Than 15 Years Transport Package Pallets or Cartons Trademark ZAPHUE Origin China Production Capacity 5000/Month

Product Description

Product Show

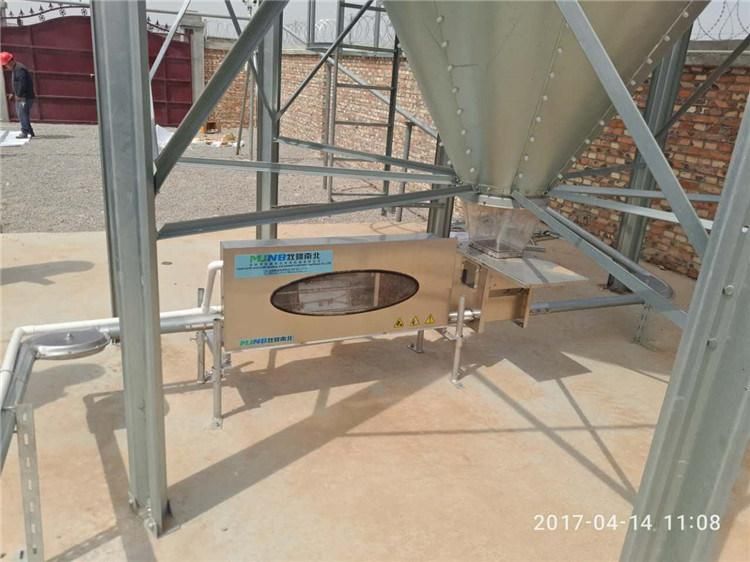

1, Main driving device

• Shell is stainless steel, corrosion resistance, install in-door and out-door are both available.
•
•  High quality of drive motor, imported and made in China are both available.
•
• Cycloid pin gear, worm gear and wheel gear are both available.
•
• Chain wheel material is fiberglass nylon.
•
• Imported capacitor with high quality.

2,Disc-chain conveying part

• Material of conveying pipe is galvanized, outer diameter is 60mm, thickness is 1.5mm.
• High strengthen, abrasion resistance of chain, enhanced service life.
•  Material of disc is fiberglass nylon, same material with corner and chain wheel, could reduce frication. Disc diameter is 45mm.

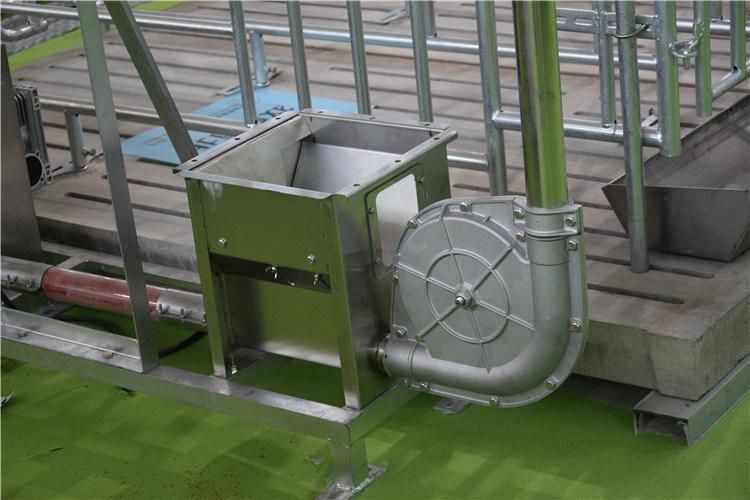

3, 90°corner

• Corner shell material is polycarbonate, has high shock resistance, electric insulation, good performance on temperature resistance.
• Inner part material is fiberglass nylon.
• Hardware is stainless steel.

4, Feed doser

• Material is polycarbonate, has high shock resistance, electric insulation, good performance on temperature resistance.
• High transparency, precise scale, anti-corrosion.

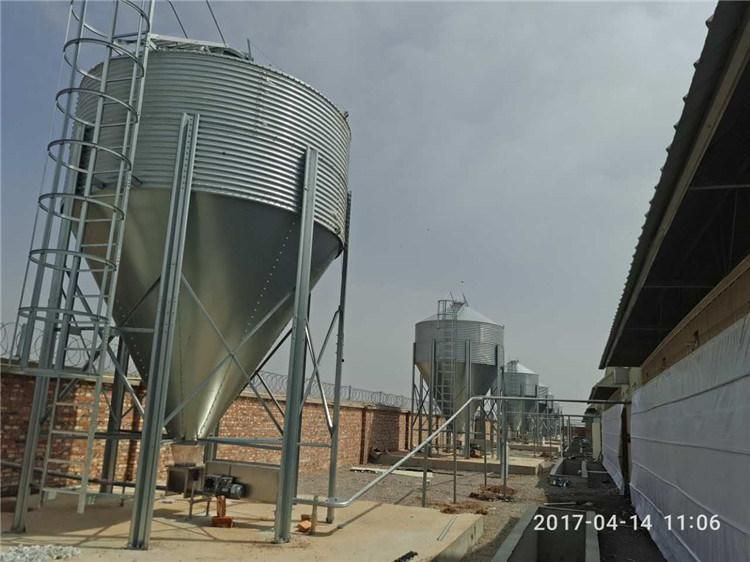

5, Silo

     Material of silo is hot-dip galvanized or fiberglass.
     Different capacity to meet farm's feeding request.
