• Model NO.：FDSP
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Output：18-24t,H
• Application：for Making Pellet and Mash Feed
• Cleaning：Crushing-Mixing-Pelletizing-Cooling-Sieving
• Feed：for Fish
• Transport Package：Pallet
• Specification：CE, ISO, SGS
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：84361000
• Production Capacity：18-24tph

Basic Info.

Model NO. FDSP Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Output 18-24t/H Application for Making Pellet and Mash Feed Cleaning Crushing-Mixing-Pelletizing-Cooling-Sieving Feed for Fish Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 84361000 Production Capacity 18-24tph

Product Description

Hot Sale Animal Feed Pellet Production Line Pellet Feed Line
Jiangsu Liangyou Zhengda Co., Ltd., specializing in the production of feed machinery and engineering, can provide customers with complete sets of equipment solutions for livestock feed (pig, etc.), poultry feed (chicken, duck, goose,etc.), ruminant feed (cattle, sheep, etc.), common aquatic feed (four major Chinese carps, etc.), special aquatic feed (shrimp, crab, etc.), extruded aquatic feed (floating and sink fish feed, shrimp feed, etc.), premix feed (including all kinds of additives, etc.), and pet food(cat food, dog food, etc.). to meet the different needs of customers.
Now take the 3tph normal fish feed set as a case, according to the process flow and each section to do the following introduction and description.

Definition Of Normal Aqua Feed:

The normal aqua feed is referred to the sinking pellet feeds needed for ordinary fish types( like four major Chinese carps)


Raw Material:

Ordinary aquatic feed products are mainly protein raw materials, including grains, cake meal, rice bran, bran, blood meal, fat, antibiotics, vitamins and so on.

Introduction Of Process:

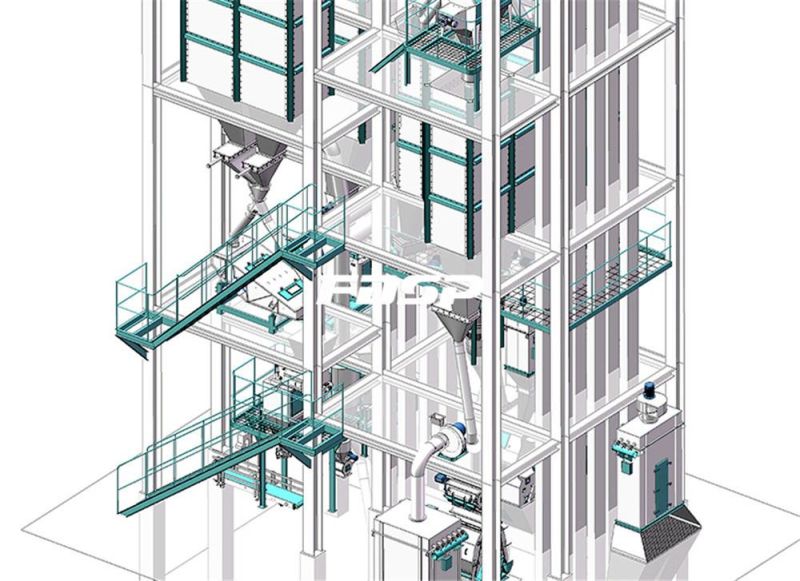

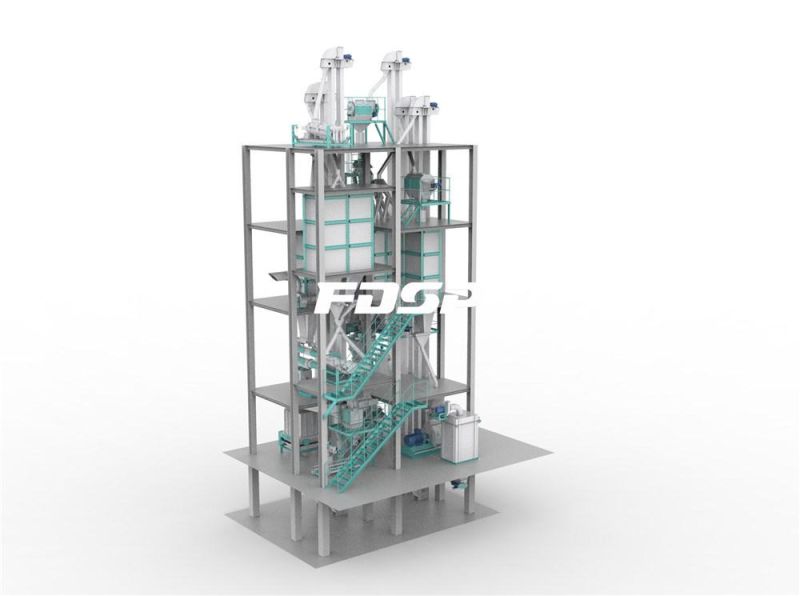

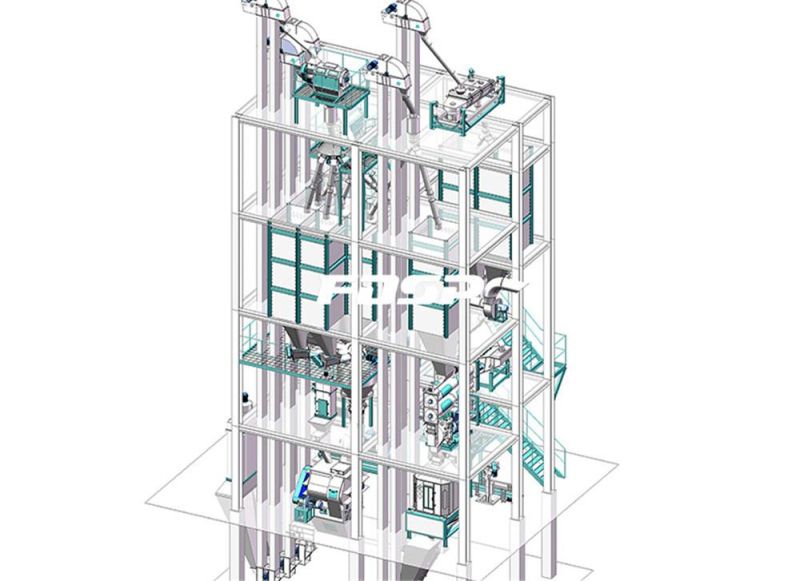

Ordinary of aquatic feed is characterized by fine grinding fineness (hammer mill mesh size 0.8- 2.0 mm), high conditioning requirements (using double jacketed conditioners), small product particle diameter (particle diameter of about 2-4.0 mm).The single set of SZLH350 normal aquatic fish feed project was designed to produce 3t /H, using one grinding line, one batching mixing line, one pelleting line and one packaging line. The total power of the equipment is about :210KW; The construction area of the production area is about 9.5×7×16.3m (high); allocated with 0.5T boiler. The line is with compact engineering design, reasonable structure, meeting environmental protection requirements, and can be designed according to customer requirements.
Process Diagram:
Raw material receiving and cleaning process,  grinding process,  batching and mixing process,  pelleting process,  bagging process/ bulk packing,  auxiliary process


Process introduction:
Raw Materials Receiving And Cleaning Section:
In this section, pellet feeding cleaning and powder feeding cleaning are separated independently and separate dust removal. Dust removal effect is good.

Cleaning Equipment:granules sifter SCY63,capacity 10-15T/H;powder cleaner SQLZ60X50X100, capacity 10-15T/H

Grinding Section:

This section adopts one hammer mill, and with one pre-grinding bins. Before entering the bins, the impurities are removed by magnetic separation device to ensure the safe operation of the hammer mill.
.

Grinding equipment : Hammer mill SFSP668×600, 55kw, designed to produce 3-4t /h(¢1.5mm screen hole)

Mixing Section:

This section adopts 8 batching bins, single set of batching system. It is controlled by the batching program independently developed by our company to realize accurate fast and slow feeding, fast batching and high precision.
Weighing equipment: Dosing scale PCS05, dosing precision: dynamic ≤3‰, static ≤1‰
Mixing equipment : single set of mixer SHSJ1, (11KW, 500kg/ batch), designed to produce 3t/h/ set(The mixing time is long for fish feed). Mixture uniformity CV ≤5%
Pelletizing Section:

This section adopts one double-layer conditioner pelletizer, and with one pre-pelleting bin, which is convenient to switch between varieties. After pelleting, they are respectively entered into the cooler and the elevator into the rotary screener in order to be screened, and the finished products are put into the packing bins, and the rest are returned to pelleting or bag receiving.

Pelleting equipment : SZLH350, 55KW, designed to produce 3t/h
Cooling equipment : SKLN2.5, 1.1kw, 2.5m3 volume, designed to produce 3-5t/h

Packing section:

There are 2 finished product bins in this section; Vibration sieve is arranged before packaging to screen out the powder in the finished material.


Packing equipment: Belt scale, packing range: 20-50kg/ bag, 6-8 bags/minute.

Auxiliary section:

Dust removal system to improve workers' working environment; Grease adding system, common mixer place added to improve feed palatability.


According to the needs of different customers, the scheme can be optimized:


1. The scheme adopts the single-point dust removal mode, that is, each rotary distributor (powder material) and pellet cleaner is equipped with a pulse dust filter, which has a good dust removal effect. Single point of dust removal is our company's humanized design, which can provide a better working environment, but the cost increases. Customers can consider whether to use this configuration according to the actual needs;

2. The quantity of bins can also be adjusted according to the formula of customers, the characteristics of raw materials and other factors, so as to achieve the highest utilization rate and effectively control the production cost;

3. The dust collecting design at packing site can improve the working environment of workers, but the cost will be added and customers can configure according to their needs.

FAQ
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.

2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.

3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.

4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.

5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
